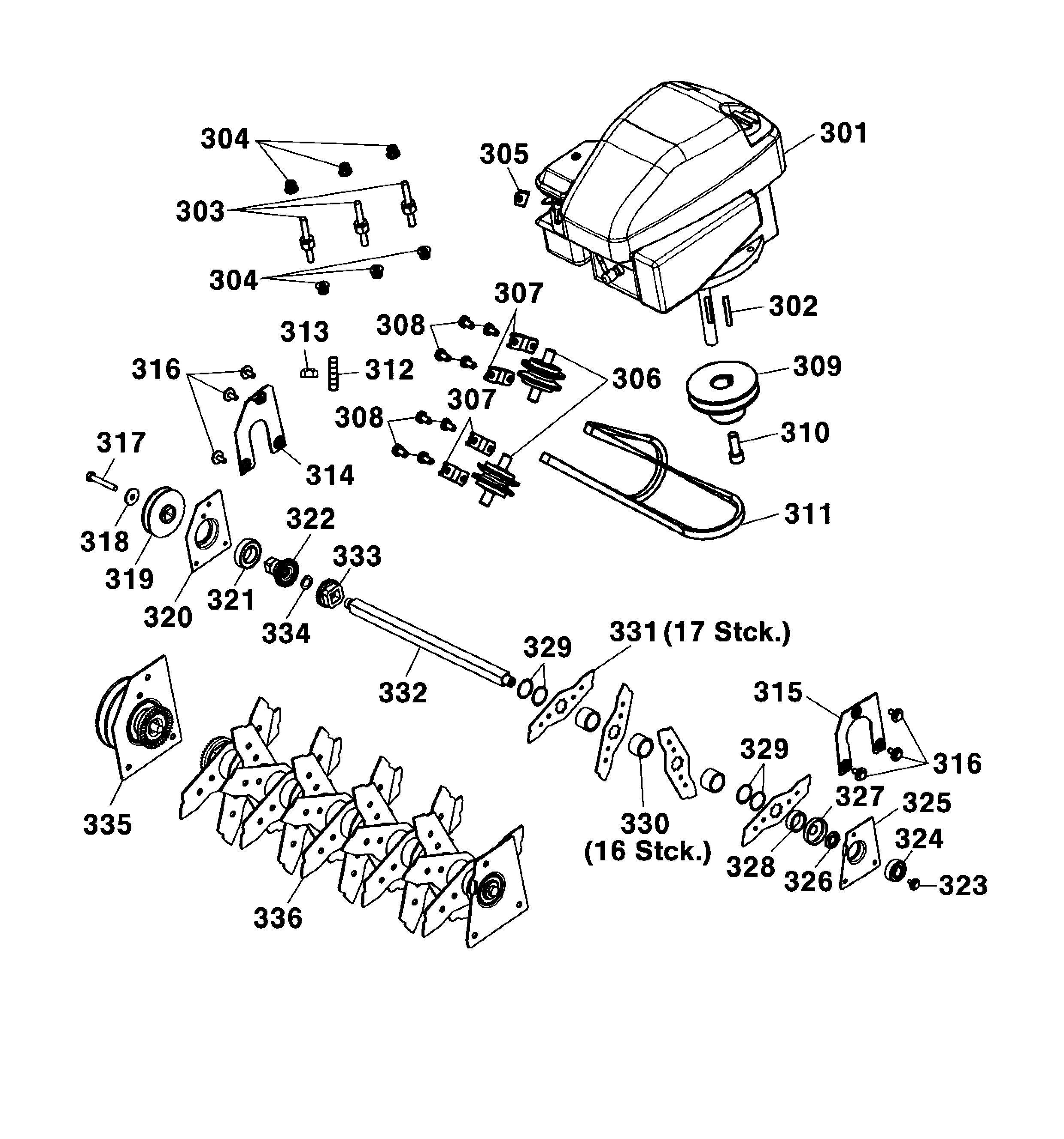

Spare Parts Lists for Wolf Scarifiers / Aerators Motor, Blade

pos.	decription	spare part number
301	Engine Quattro 40 S	2056 060
302	Woodruff Key	0028 775
303	Stud Bolt, Short	6450 170
304	Nut	0016 385
305	Clamp-Casing	4941 207
306	Axle	3638 035
307	Clip	3638 309
308	Screw M6X12	0012 609
309	V-Belt Pulley	3638 040
310	Screw	6110 414
311	Drive Belt Fo-Z 10/6X982 Li	0039 217
312	Threaded Pin	0014 358
313	Nut	0016 311
314	Mounting Plate, Right	3638 140
315	Mounting Plate, Left	3638 142
316	Screw	0010 681
317	Screw	0010 338
318	Washer	0017 111
319	V-Belt Pulley	3638 100
320	Bearing Flange, Right	3638 101
321	Bearing	0023 097
322	Clutch-Drive	3638 103
323	Screw	0010 892
324	Bearing	0023 148
325	Bearing Flange, Left	3638 102
326	Ring	3568 512
327	Cover	3568 509
328	Distance Bush Outside Right, Black	3638 308
329	Tolerance Washer 4 Qty	3586 110
330	Distance Bush	3585 510
331	Blade	3638 400
***	Blades Set Uv-Evn Compl.	3638 095
332	Shaft	3638 104
333	Starter Dog	3638 105
334	Circlip	0020 013
335	Rotor drive hub assy. compl.	3638 061
336	Rotor Assy. C/W Left Hand Bear.	3638 062
***	Rotor & Hubs Assys 335+336	3638 060
***	Tk 38 Debris Collector	3638 065
***	Safety Label	3586 226
***	Label	3638 205
***	Wolf-Garten	0051 123
***	Poly Bag With Instr. Manual	3638 025
***	Instruction Manual	0054 166
