Spare Parts Lists for Wolf Mowers Motor, Blade

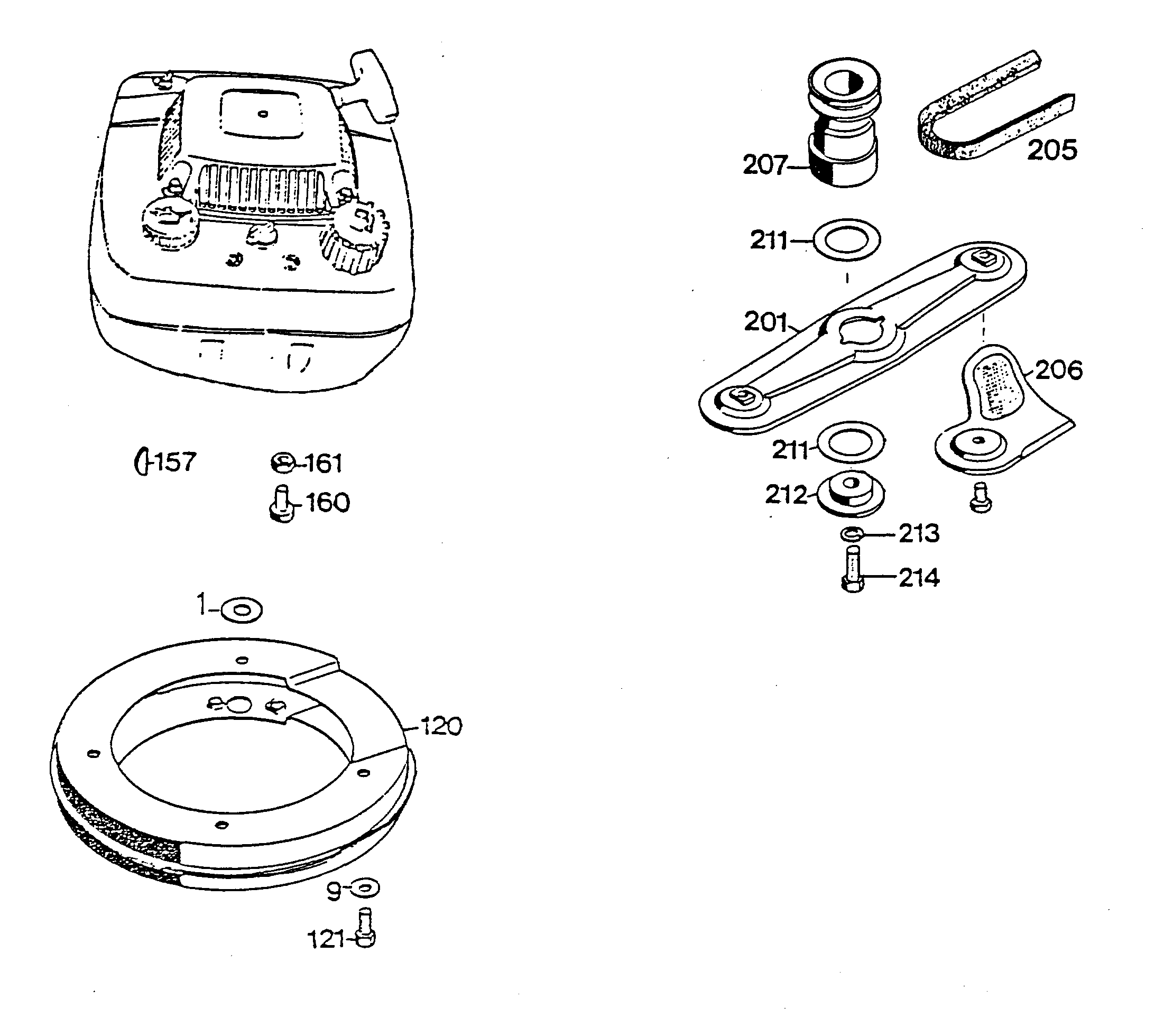

pos.	decription	spare part number
9	Washer	0017 111

Lists

pos.	decription	spare part number
1	Washer	0017 484
120	Ring	6340 022
121	Hex Screw M8X30 Din 933 8.8	0010 399
151	Motor	2090 065
157	Key	0029 055
160	Screw	0011 351
161	Nut	0016 378
162	Plug-Spark	2095 306
****	Spark Plug Socket	2090 305
****	Filter.Pre Cleaner	2090 418
****	Air Cleaner	2090 417
****	Cleaner compl.	2095 057
201	Blade Compl. W. Repl. Blades	4740 066
205	Drive Belt 42Cm	0039 204
206	Replacement Blade Vi 42/52	6340 078
207	Coupling Disk	4840 401
211	Clutch facing	4111 403
212	Coupling Disk	4840 402
213	Washer spring	0017 911
214	Screw	0010 258
****	Poly Bag With Operator Instruct.	4880 027
****	Instruction Manual	0054 013
****	Collector Box	4960 050
