> Mowers > Petrol > Drive up to 42 cm > Esprit > Esprit 40 HA > Motor, Blade

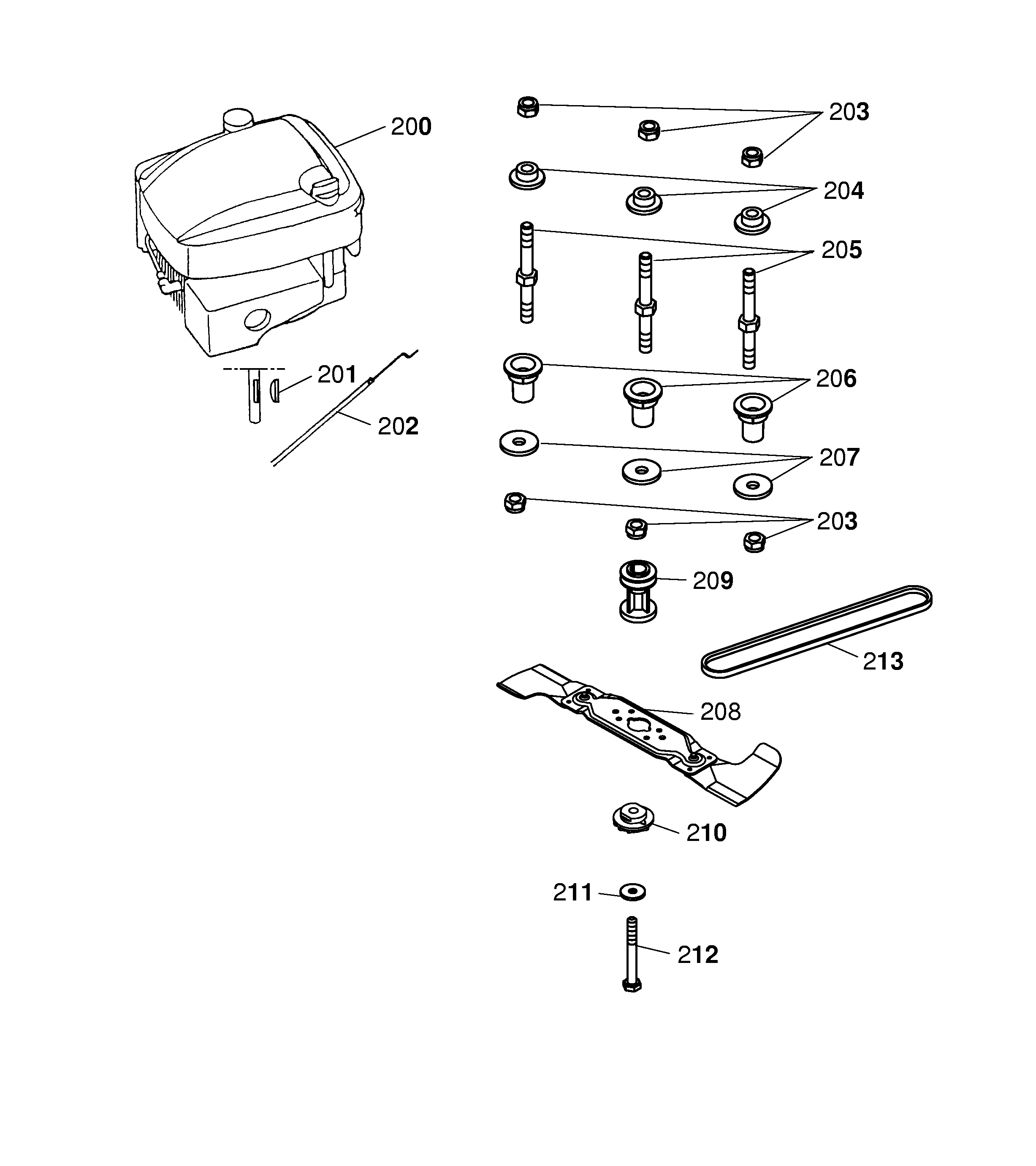

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
200Motor Honda GCV 1352098 075
201Key0029 130
202Bowden Wire4011 054
203Hex. Nut0016 312
204Motor Bush4001 172
205Stud Bolt, Short4001 170
206Spacer4601 312
207Washer0017 111
208Cutter Bar Compl.4001 094
***Replacement blades VI-W (1 pair)4350 040
209Coupling Disk4605 406
210Driver4605 408
211Friction Washer0017 105
212Screw0010 264
213Drive Belt 42Cm0039 210
