> Mowers > Petrol > Drive from 43 cm on > Others > B 46 TBA > Motor, Blade

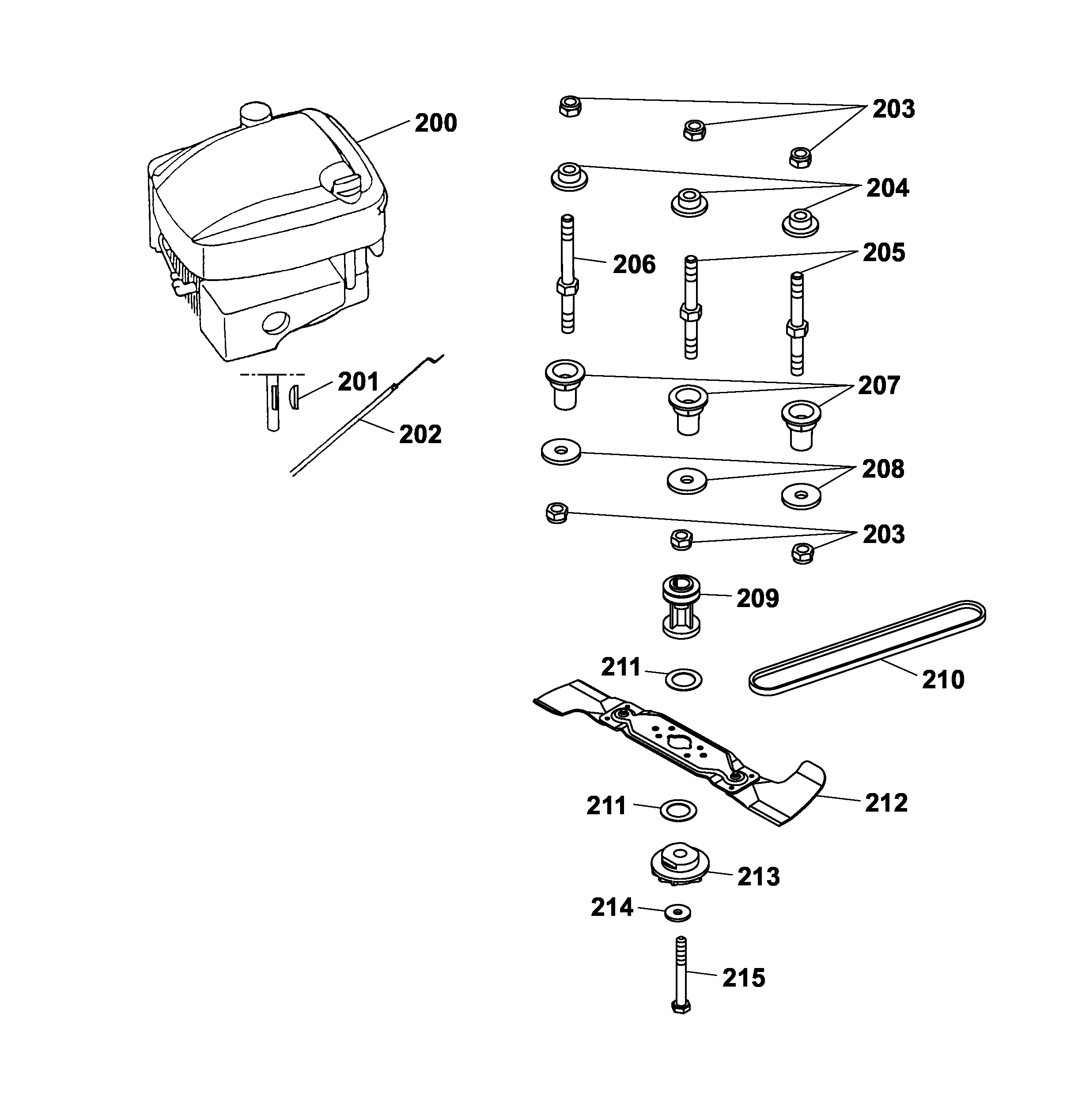

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
200Motor Compl.2076 050
201Key0029 130
202Bowden Wire Brake4005 058
203Hex. Nut0016 312
204Motor Bush4001 172
205Stud Bolt, Short4001 170
206Stud Bolt, Big4001 171
207Spacer4601 312
208Washer0017 111
209Coupling Disk4605 406
210V-Belt0039 218
211Clutch Facing4005 403
212Cutter Bar Compl. Vi 46 W4601 094
***Replacement blades VI-W (1 pair)4350 040
213Driver4605 408
214Friction Washer0017 105
215Screw0010 264
