> Mowers > Electro > Without drive up to 38 cm > series 2 > 2.36 E > Motor, Blade

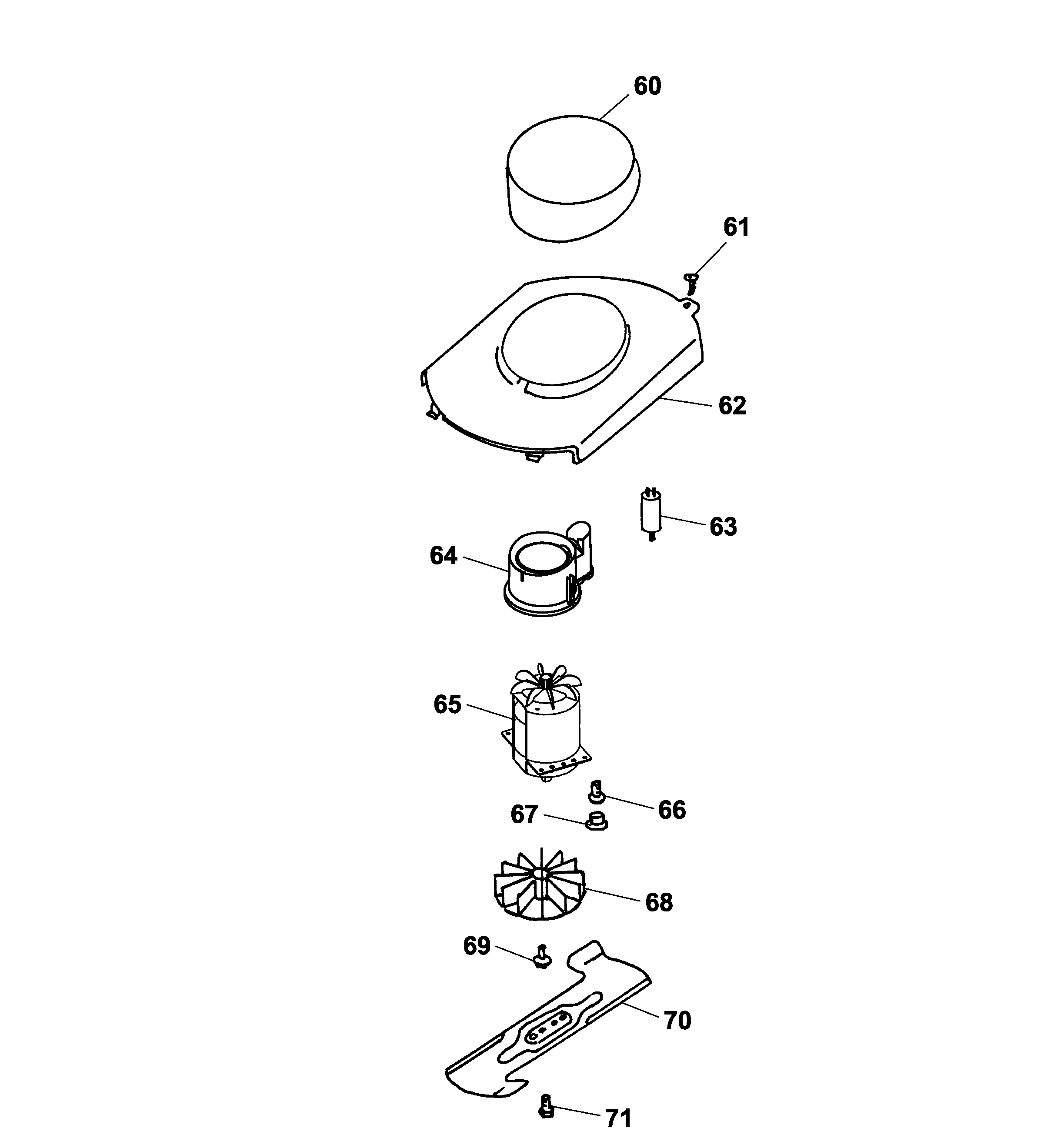

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
60Motor Covering4936 305
61Screw0012 625
62Chassis Cover4906 302
63Condenser, 16 µF1117 030
64Air-Conduction4932 308
65Motor,Premio32E(2004)1141 010
66Screw0012 952
67Insert-Grip4936 308
68Fan Complete4936 027
69Screw0010 680
70Blade4936 090
71Hex. Screw M6X160010 366
