Piston, Crankshaft, Valves,

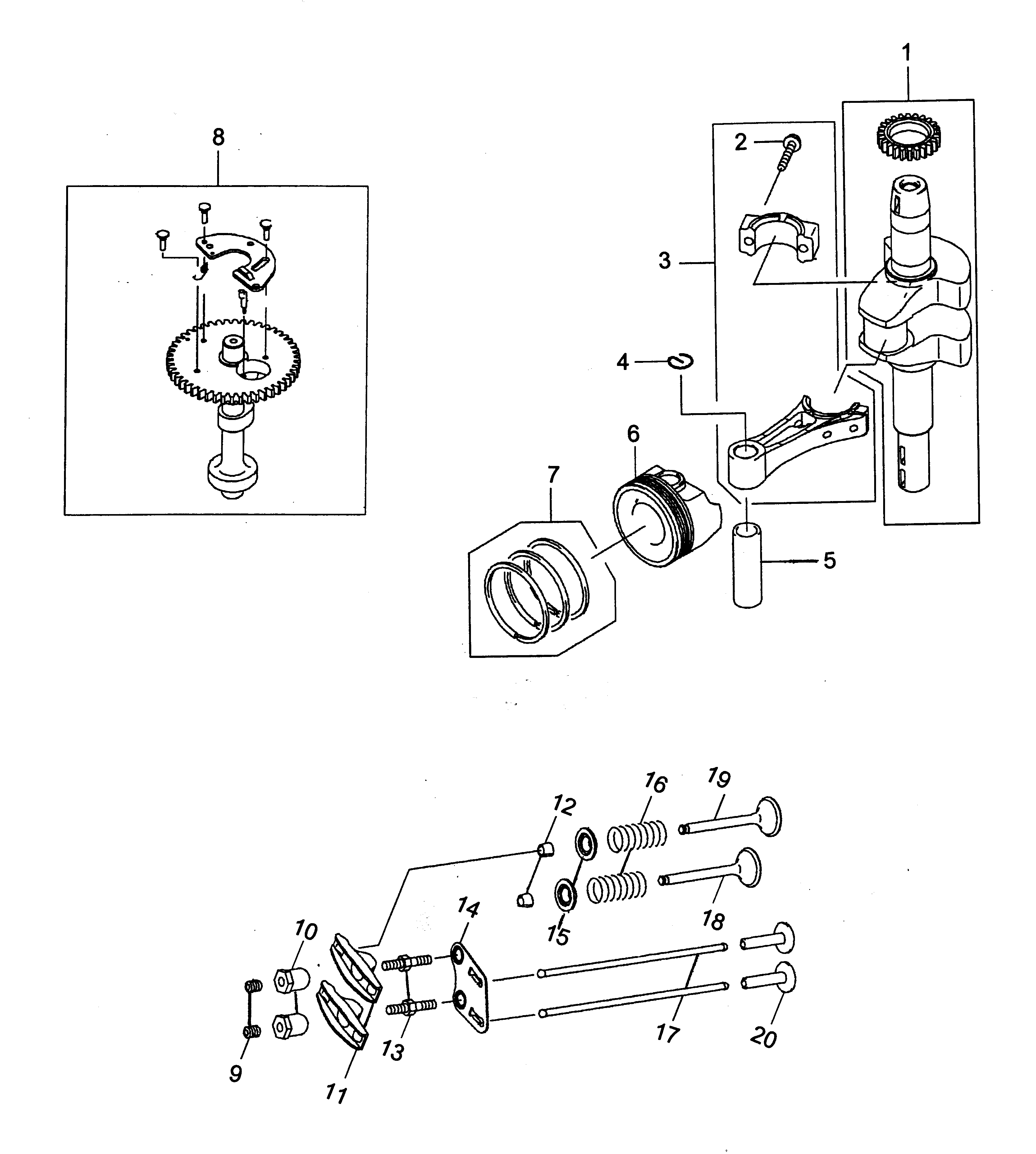

Spare Parts Lists for Wolf Mowers Piston, Crankshaft, Valves,
pos.
decription
spare part number
1
Crankshaft
2094 120
2
Screw
2094 116
3
Rod-Assy-Connecting
2094 121
4
Lock-Piston Pin
2094 122
5
Piston Pin
2094 118
6
Piston
2094 117
7
Piston Ring Set
2094 119
8
Camshaft
2094 129
9
Screw
2096 209
10
Nut
2090 141
11
Arm-Rocker
2094 127
12
Dowel Pin 3,5X36
2094 126
13
Bolt
2094 138
14
Guiding
2094 131
15
Valve
2094 125
16
Valve-Spring
2094 134
17
Rear Pushrod
2094 132
18
Intake Valve
2094 123
19
Exhaust Valve
2094 124
20
Pusher
2094 128
