Spare Parts Lists for Wolf Grass-shears RI-T

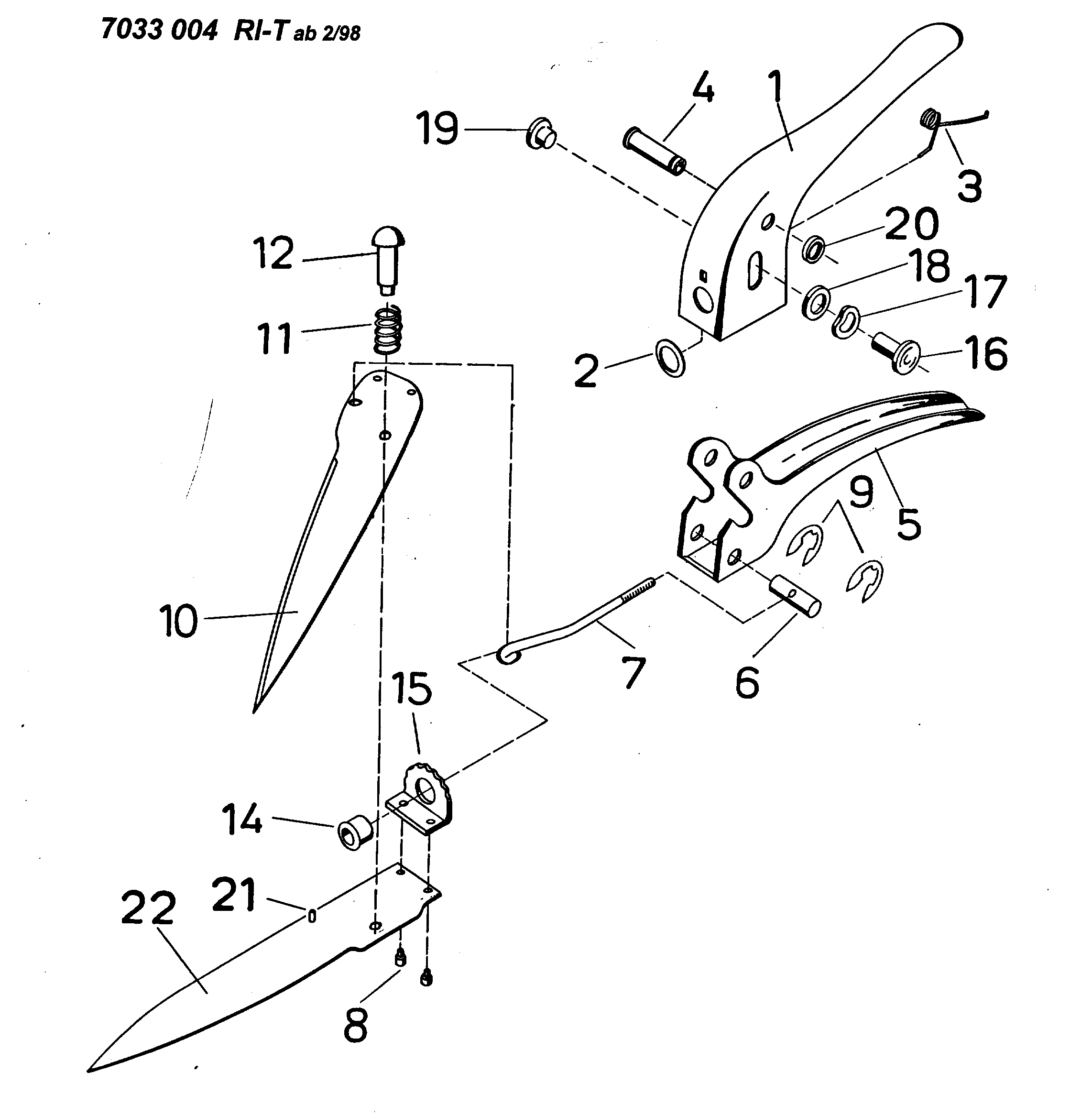

spare parts list


pos.decriptionspare part number
1Upper handle7033 106
2Washer7031 104
3Spring7033 108
4Bearing Bolt7033 112
5Lower Handle7033 107
6Bolt7030 104
7Connecting Rod, Middle7030 105
8Rivet0019 182
9Circlip0022 410
10Upper blade7033 413
11Compression Spring7036 403
12Bolt7033 200
14Guiding Bushing7033 103
15Rotary angle7030 102
16Tumbler Bolt7033 111
17Washer0017 808
18Washer A5,3 Din 125-St0017 122
19Bolt7214 211
20Circlip0022 407
21Bolt7031 409
22Blade7033 414
