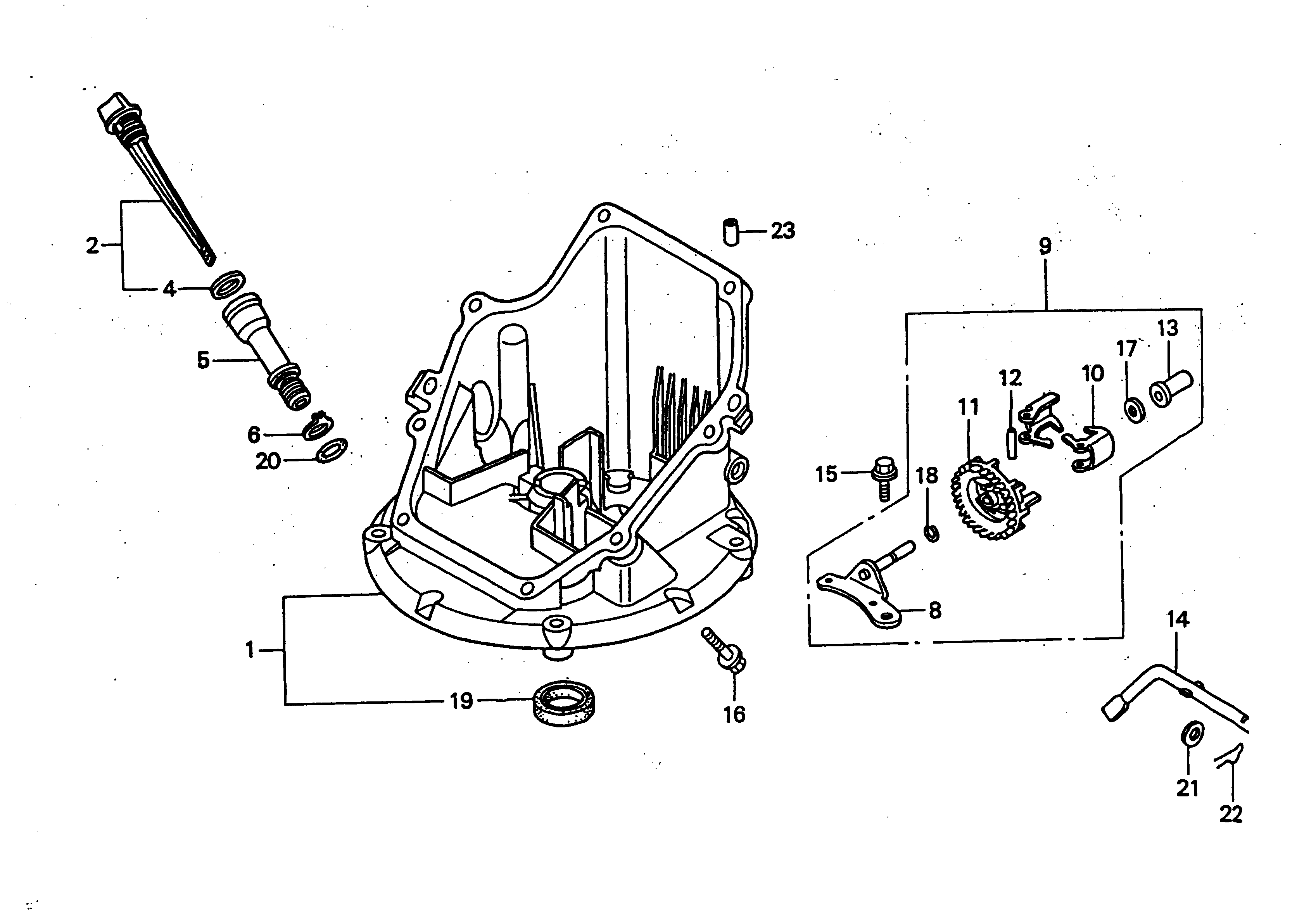

Spare Parts Lists for Wolf Petrol engines Sump-engine




spare parts list


pos.decriptionspare part number
1Sump Base2098 309
2Oil Dipstick Gasket2098 375
4Seal2098 311
5Tube-Dipstick2098 410
6Washer2098 135
8Arm2098 415
9Governor-Assy2098 028
10Weight-Governor2098 416
11Governor Cogging2098 417
12Pin2098 134
13Sliding Bushing2098 139
14Crank - Governor2098 418
15Screw2098 106
16Screw2098 110
17Thrust Washer2098 115
18Clamp2098 117
19Seal Oil Pipe2098 319
20Seal-Dipstick Tube2098 321
21Washer2098 123
22Pin-Counterweight2098 125
23Pin2098 126
