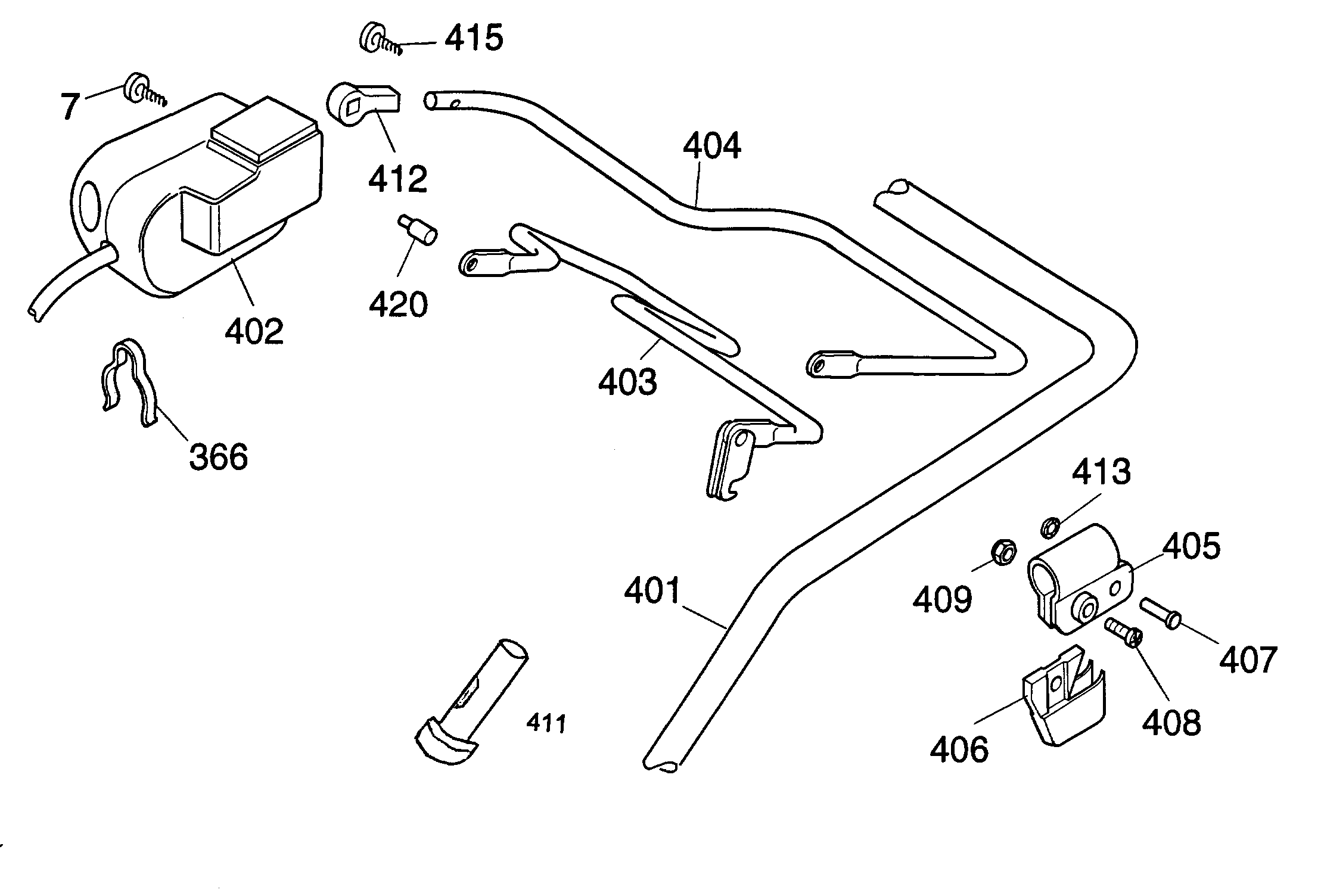

Spare Parts Lists for Wolf Mowers Upper Handlebar


spare parts list 1
spare parts list 2


spare parts list


pos.decriptionspare part number
7Screw0012 625
366Cable Clamp4950 307
spare parts list


pos.decriptionspare part number
401Upper Handlebar4925 036
402Switch4947 051
403Bracket Bracket6522 014
404Gear Lever4920 100
405Clamp-Casing4720 105
406Support4720 106
407Bolt0018 107
408Screw0012 211
409Nut0016 641
411Closing Cap6340 125
412Bushing4940 105
413Clip3585 503
415Screw0015 652
420Bearing Bolt4920 208
