Spare Parts Lists for Wolf Reel-mowers VD 28 S

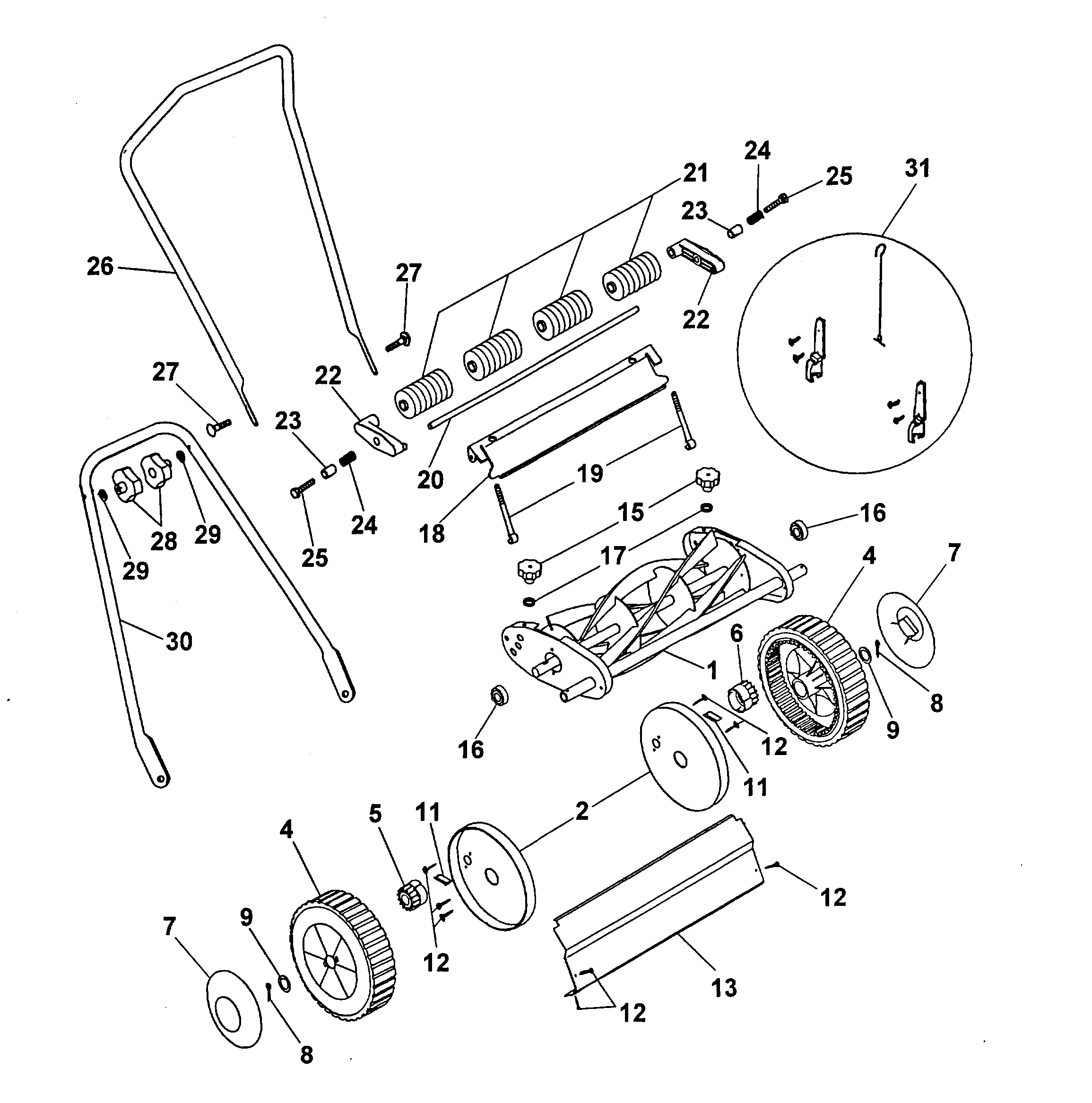

spare parts list


pos.decriptionspare part number
2Cover4032 103
4Tyre4032 123
5Pinion4032 118
6Pinion, Left4032 107
7Hub Cap4038 105
8Washer4032 187
9Washer4032 173
10Wheel4032 510
11Pin4032 508
12Screw4032 168
13Cover4038 107
15Handwheel4032 402
16Bearing4032 185
17Washer4038 101
18Cover4038 108
19Bolt4032 125
20Kit-Choke Shaft4032 120
21Roll4032 108
22Lever4032 101
23Spacing Tube4032 127
24Spring4038 100
25Screw4032 178
26Upper handlebar4038 106
27Screw4032 188
28Handwheel4038 102
29Washer4038 103
30Lower Handlebar4038 104
31Poly Bag With S.-Assembly4038 015
***Grass Collector4084 000
