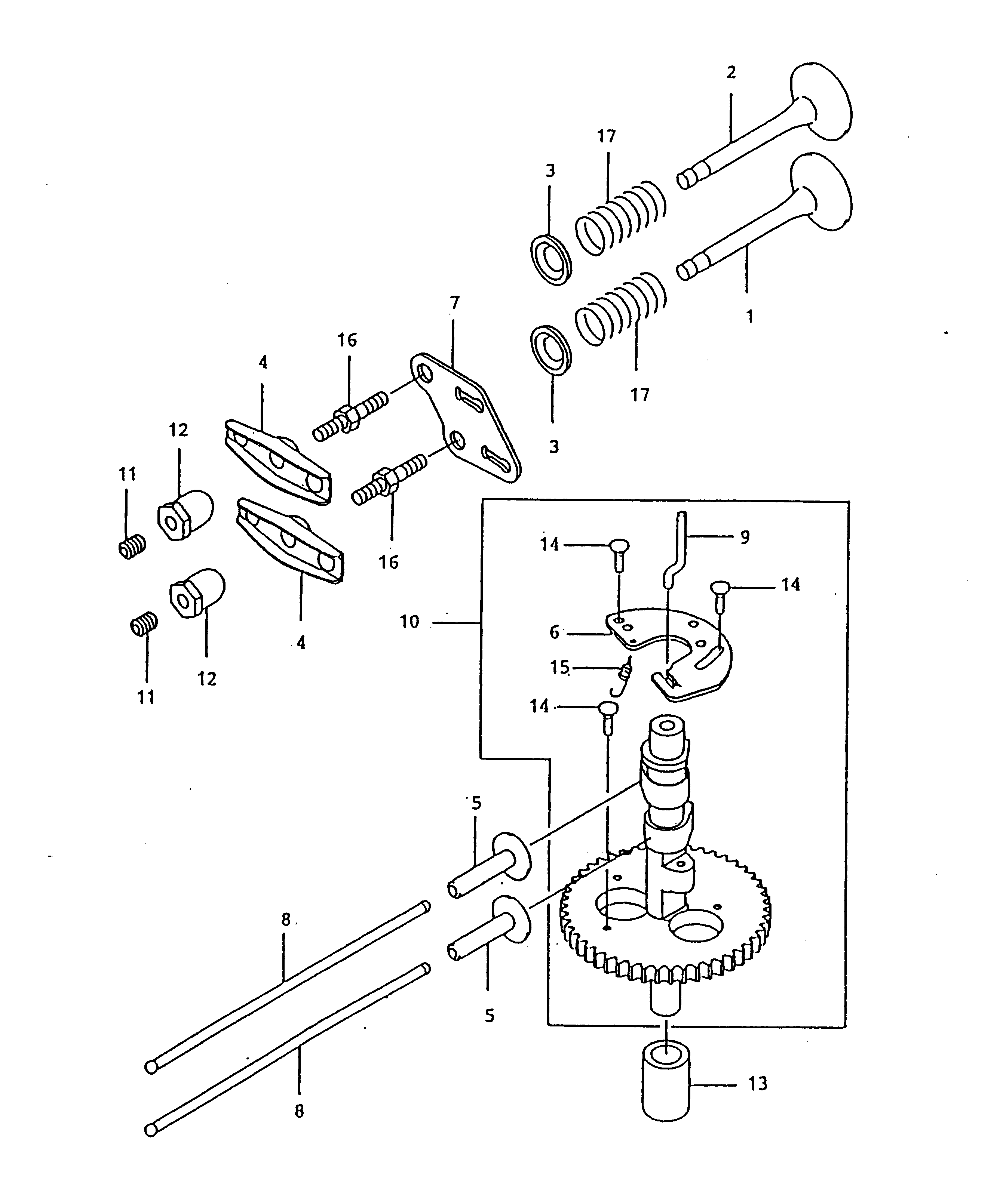

Spare Parts Lists for Wolf Mowers Valves, Camshaft




spare parts list


pos.decriptionspare part number
1Intake Valve2096 129
2Exhaust Valve2096 130
3Valve2090 133
4Lever2090 135
5Valve Lifter2090 136
6Decompression2096 131
7Guiding2096 132
8Rod-Push2090 137
9Arm2096 133
10Camshaft2096 063
11Screw2096 209
12Nut2090 141
13Spacer Block2096 134
14Pin-Counterweight2090 142
15Spring2096 313
16Screw2096 210
17Lower Valve Spring Cap2090 134
