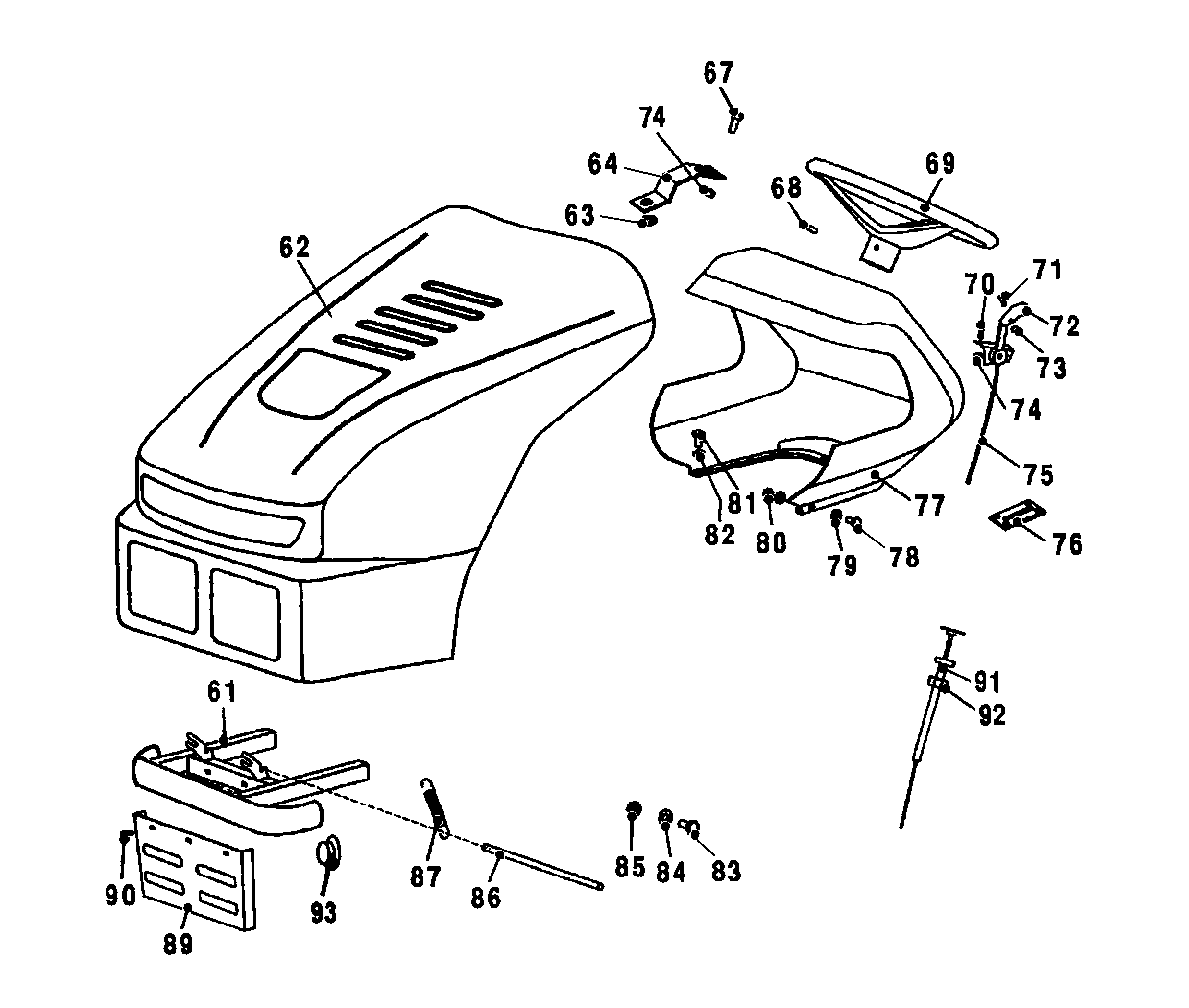

Spare Parts Lists for Wolf Ride-on Mowers body assembly hood




spare parts list


pos.decriptionspare part number
61Bumper6205 516
62Motor Cover6205 346
63Bush6205 159
64Fuel Tank Holder6205 532
67Screw K3 0002436366205 127
68Spring Pin 6X456205 570
69Steering Wheel, 14 640 Cz6205 300
70Screw0012 955
71Head-Slotted Screw M4X14 Din 84 A 8.86205 583
72Throttle Knob - Black6205 302
73Self Locking Nut M 40016 309
74Hex. Nut0016 310
75Throttle Lever Assy6205 052
76Supporting Sheet Metal6205 466
77Dash - Panel6205 344
78Hex. Screw K3 0002476216205 561
79Flat Washer 4.3 Din 125 A0017 119
80Self Locking Nut M 40016 309
81Hex screw M5x20 DIN 933 8.80010 126
82Flat Washer 5.3 Din 9021 B0017 287
83Hex Screw M8 X 20 Din 933 8.80010 402
84Flat washer 8.4 DIN 9021 B6205 568
85Hex. Nut0016 312
86Safety Bar6205 467
87Tension Spring6205 423
89Heat Shield6205 490
90Self Drilling Screw 4,2X13-Din 7504K Ecodrill0015 821
91Choke Capro6205 463
92Hex Nut 3/8246205 551
93Cap Black6205 303
