> Mowers > Petrol > Without drive up to 42 cm > Esprit > Esprit 40 BK > Motor B&S Quattro 40 KAT > carburetor

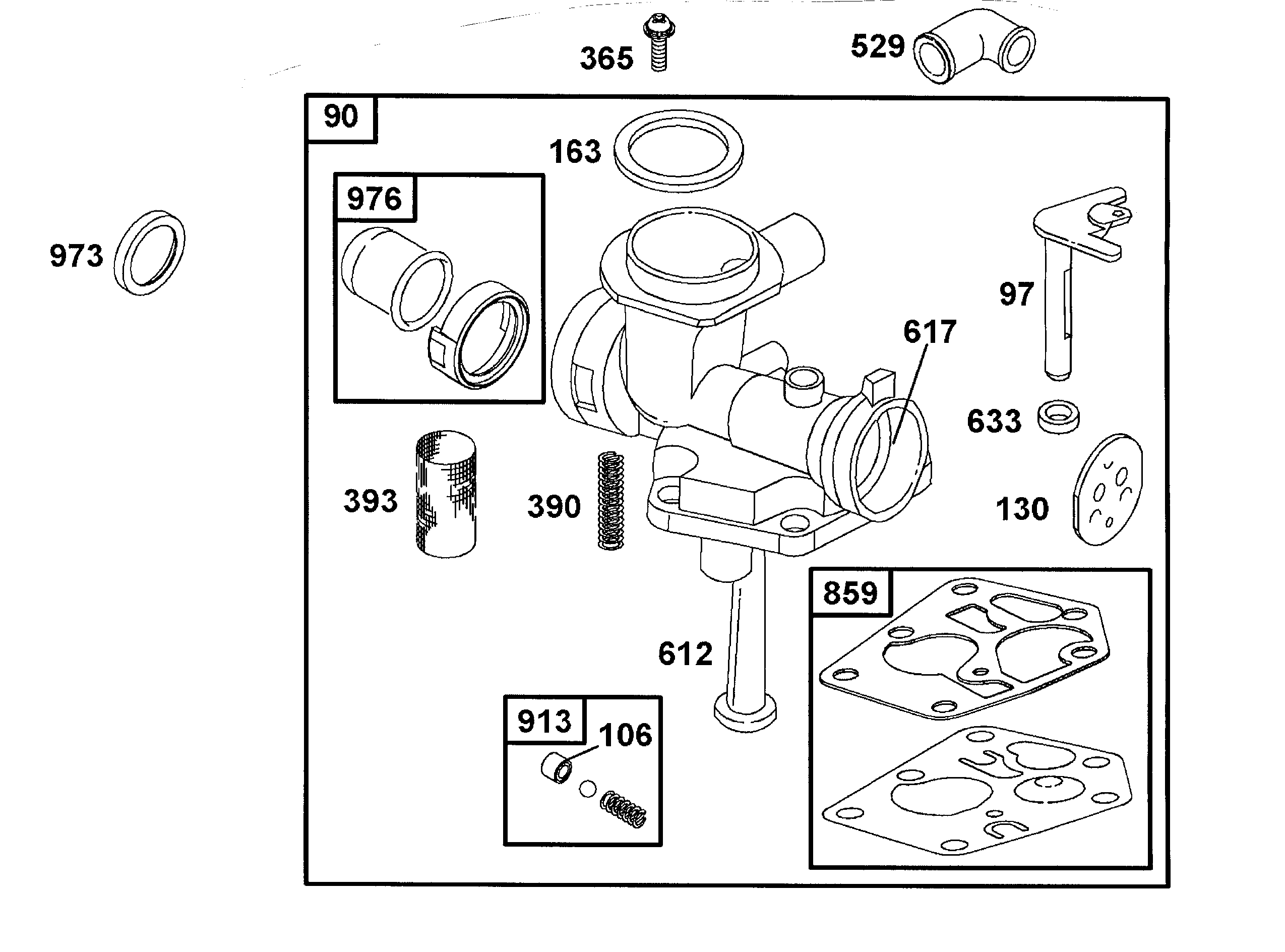

Spare Parts Lists for Wolf Mowers carburetor




spare parts list


pos.decriptionspare part number
90Carburetor2056 056
97Kit-Choke Shaft2056 145
106Seal2056 146
130Throttle Valve2056 147
163Seal2056 148
365Screw2056 149
390Spring2056 150
393Screen-Rotating2056 151
529Angle2056 152
612Pipe2056 154
617Seal2056 155
859Membrane W. Seal2056 417
913Seat-Check Valve2056 156
973Retainer-E Ring2056 157
976Primer2056 158
