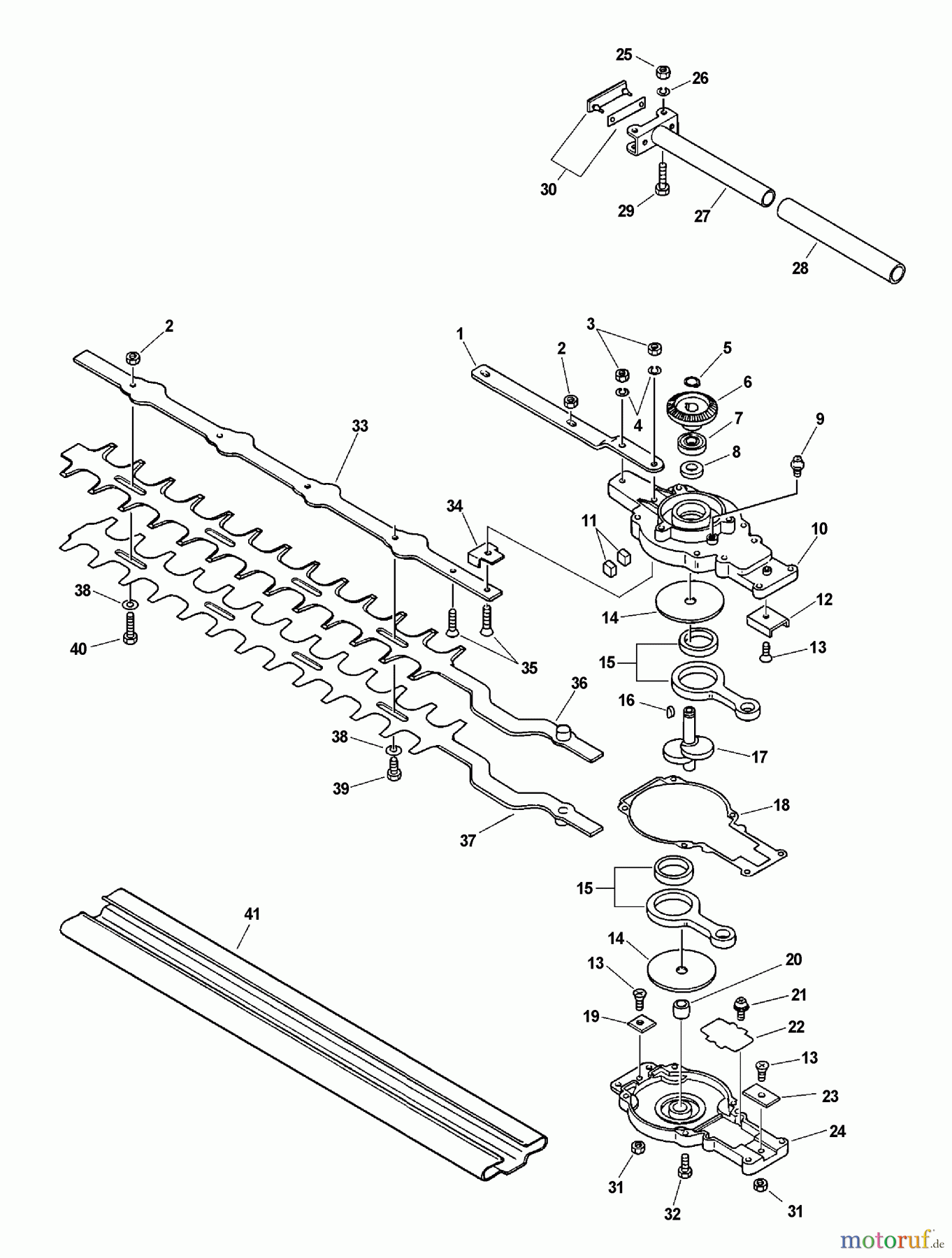

Gear Case, Blades S/N: 06001001 - 06003500 HCA-261 - Echo Hedge Trimmer, S/N: 06001001 - 06999999

Pos		Article Number	Description
1		16-699110-12360	Verstärkungsplatte HCA-2400/
2		16-433022-06460	Sicherungsmutter M6*1
3		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
4		16-900605-00005	Scheibe PB-250/EC-7600
5		16-900701-00010	Seegerring außen 10mm
6		16-610312-12360	Getriebe HCA-2400/2410
7		16-900800-06000	Kugellager, NSK(Nippon Seikkon
8		16-100213-05930	Simmerring PAS-2400 mit
9		16-880110-10860	Schmiernippel M6 HCA-2410,
10		16-610420-12361	Getriebegehäuse oben HCA-2400/
11		16-610426-54030	Filzdichtung HCA-2400
12		16-610441-54030	Schutz HCA-2400/2410
13		16-900212-04008	Schraube HCA-2400/452GS
14		16-610462-54030	Platte HCA-2400/2410
15		16-610805-54030	Pleuel mit Lager HCA-2400
16		16-610325-02730	Keil
17		16-610344-12360	Welle HCA-2400/2410
18		16-V110-000000	Dichtung, Getriebegehäuse HCA-
19		16-610450-54030	Platte HCA-2410
20		16-160616-05410	Hülse HCA-2410
21		16-900242-03006	Schraube CS-4500, HCA-2400,
22		16-610424-54030	Platte HCA-2400/2410
23		16-610447-54030	Platte HCA-2400/2410
24		16-610409-54031	Gehäusedeckel HCA-2400/2410
25		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
26		16-900605-00005	Scheibe PB-250/EC-7600
27		16-351305-12360	Griff HCA-2400/2410/2500
28		16-351315-12360	Handgriff HCA-2500
29		16-900142-05025	Schraube HCA-2400, PAS-2400,
30		16-V150-000311	Platte HCA-2400/2410
31		16-900500-00004	Mutter
32		16-900142-05020	Schraube
33		16-699117-12360	Messerrücken HCA-2400
34		16-610440-54030	Messersicherung HCA-2410
35		16-900212-05020	Schraube HCA-2400
36		16-X411-000500	Schneidmesser unten HCA-2400/-
37		16-X411-000490	Schneidmesser oben HCA-2400/-
38		16-699118-04560	Scheibe 15,5x6,5x0,7mm HC-2410
39		16-699115-07760	Messerschraube HCA-2400, HCA-
40		16-699115-04560	Messerschraube 6x16mm HC-1600
41		16X495000061
