Echo SHC-212 - Shaft Hedge Trimmer, S/N: S77412001001 - S77412999999 Handle, Ignition Switch, Throttle Cable Spareparts

Handle, Ignition Switch, Throttle Cable SHC-212 - Echo Shaft Hedge Trimmer, S/N: S77412001001 - S77412999999

Echo Heckenscheren SHC-212 - Echo Shaft Hedge Trimmer, S/N: S77412001001 - S77412999999 Handle, Ignition Switch, Throttle Cable

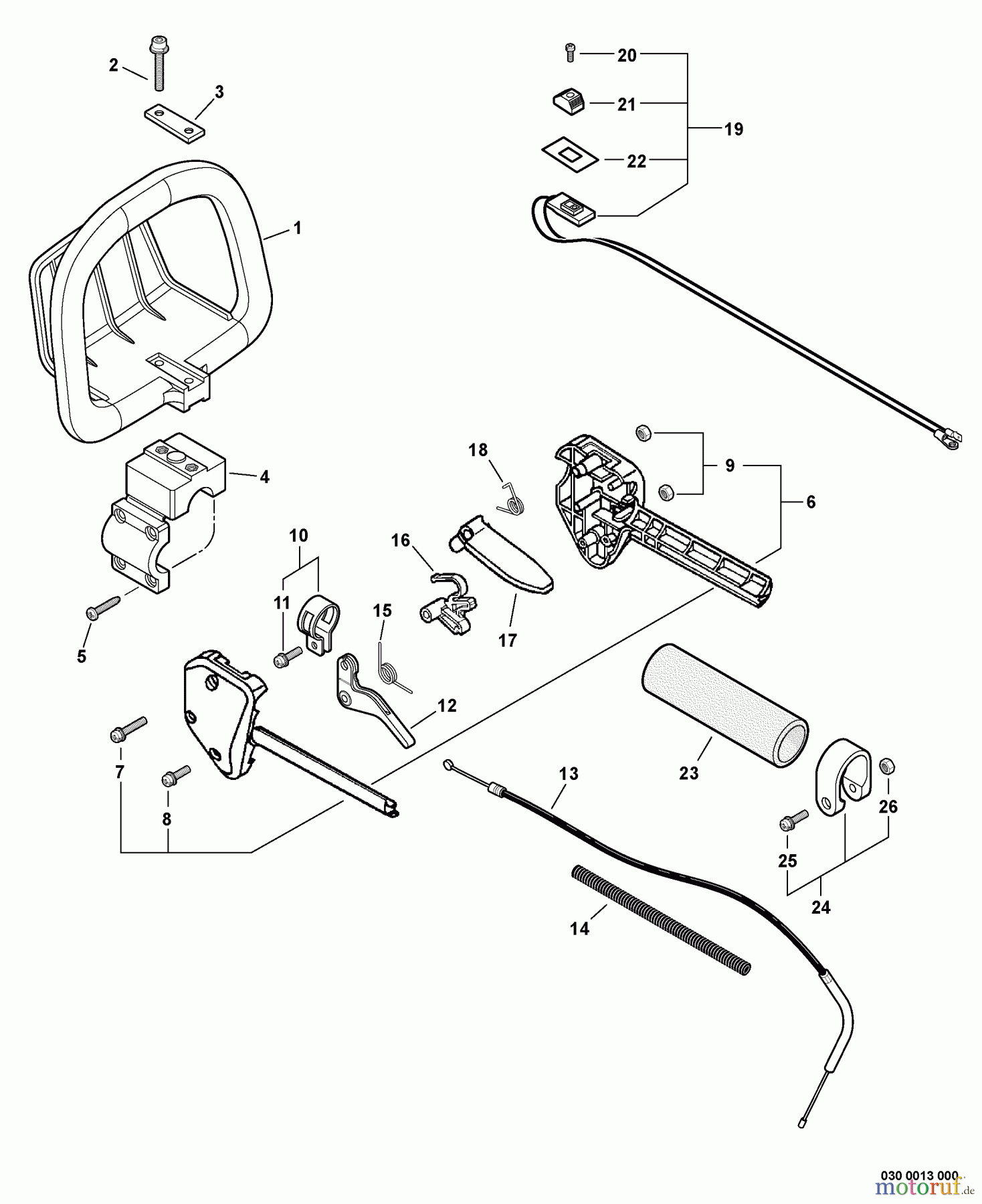

PosArticle NumberDescription
1 16-351610-05360Vord.Handgriff HCR-1500, HCR-
2 16-900162-05030Schraube CS-3500,-3501, SRM-
3 16-351611-05360Platte
4 16C405000121
5 16-889950-21560Schraube 5 PB-500
6 16-178003-52130Plastikgehäuse, Gasgriff o.
7 16-900242-05035Schraube SRM 4000 L/ 5000 L
8 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
9 16-900500-00005Mutter PPT-300ES/T-226 EDR-
10 16-301200-29431Aufhänger
11 16-900242-05014Schraube(Eisen) CS-3500, SRM
12 16-178010-52130Gashebel SRM-5000 SRM-4000,
13 16V430000730
14 1699999999999
15 16-178043-42230Feder SRM-4000L/SRM-5000L
16 16-178012-52630Gashebelsperre
17 16-178090-52632Gashebelsperre SRM-330ES/
18 16-178013-52630Feder
19 16-163401-55631Stop-Schalter PPT-2100,PPT-
20 16-91545-03010Schraube 3x10 EA-410/PPT-300ES
21 16-163410-49231Schieber f.Stopschalter EA-410
22 16-890157-12330Abdeckung EA-410
23 16-351213-52130Handgriffgummi HCA-2400 HCA-
24 16-610272-52130Schelle HCA-2500, PAS-2400,
25 16-900242-05028Schraube
26 16-900500-00005Mutter PPT-300ES/T-226 EDR-
