Echo SHC-225S - Shaft Hedge Trimmer, S/N: S86111001001 - S86111999999 Engine Cover, Starter Spareparts

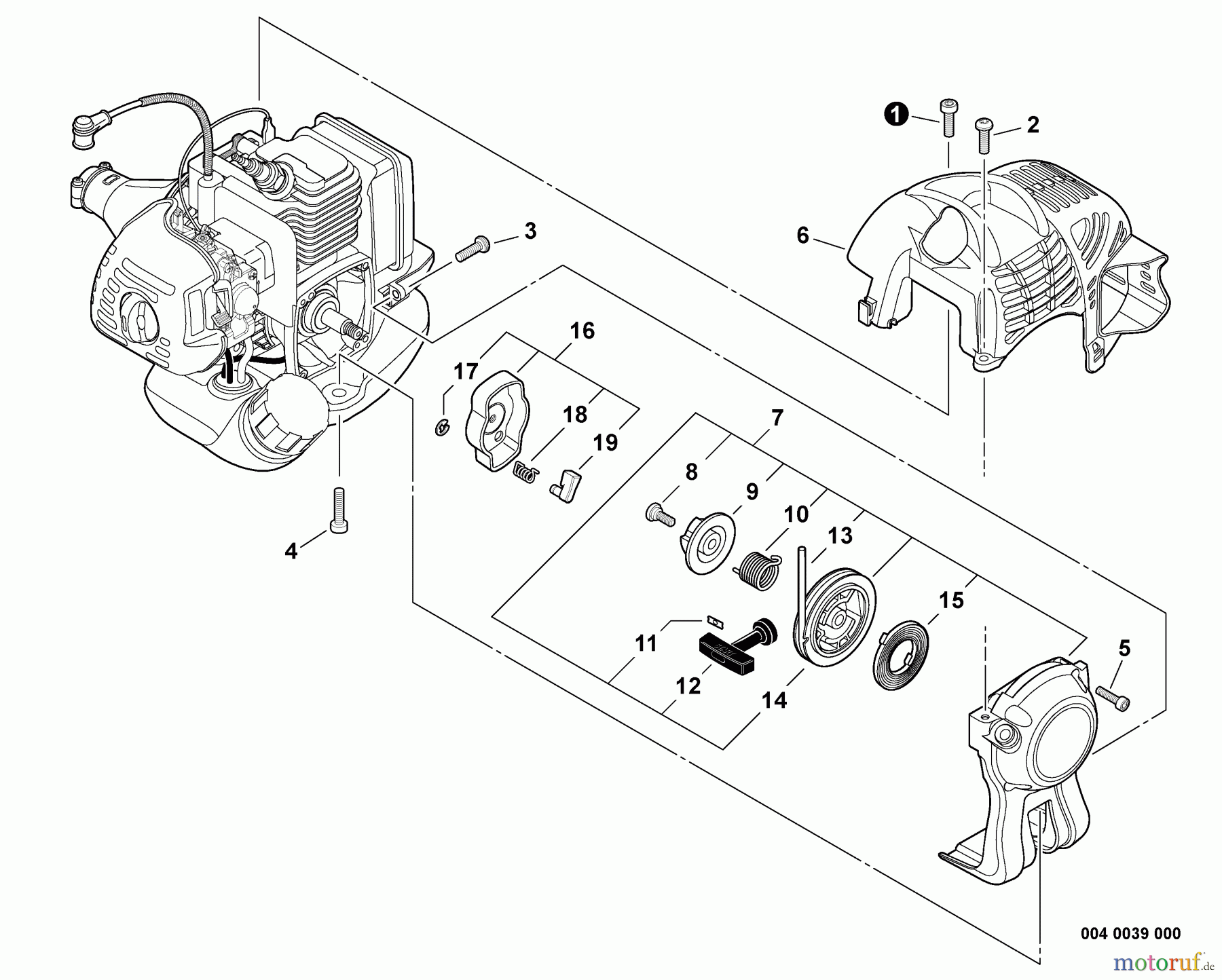

Engine Cover, Starter SHC-225S - Echo Shaft Hedge Trimmer, S/N: S86111001001 - S86111999999

Echo Heckenscheren SHC-225S - Echo Shaft Hedge Trimmer, S/N: S86111001001 - S86111999999 Engine Cover, Starter
PosArticle NumberDescription
1 16-V805-000150Bolzen HC-341ES/PB-250
2 16-V805-000000Schraubenbolzen CS-600
3 16-V805-000000Schraubenbolzen CS-600
4 16-V805-000160Bolzen HC-341ES
5 16-V804-000060Bolzen HC-341ES/PB-250
6 16-A160-001090Abdeckung, Zylinder SRM-235ES
7 16-A051-001312Starter Rückschlag SRM-236ESL
8 16-177236-61830Schraube CS-2600ES/CS-2700ES/
9 16-P022-008280Platte, mit Nocken PB-265ESL/
10 16-P022-008270Feder PB-265ESL/PPT-300ES
11 16-177246-11120Abdeckung, Starter Knopf CS-
12 16-177228-27030Startergriff PB-260LS/SRM-
13 16-P022-019990Starterseil SRM-235ES
14 16-P022-006830Seilscheibe HC-30ES
15 Echo Starterfeder SRM-235ES16-P022-019680Starterfeder SRM-235ES
16 16-A052-000180Starterklinke kompl. SRM-
17 16-P022-002100E-Ring DH-2200/PB-500/EA-410/
18 16-177234-12220Feder, Starterklinke RM-4000/
19 16-P022-006850Mitnehmer, Starter DH-2200/HC-
