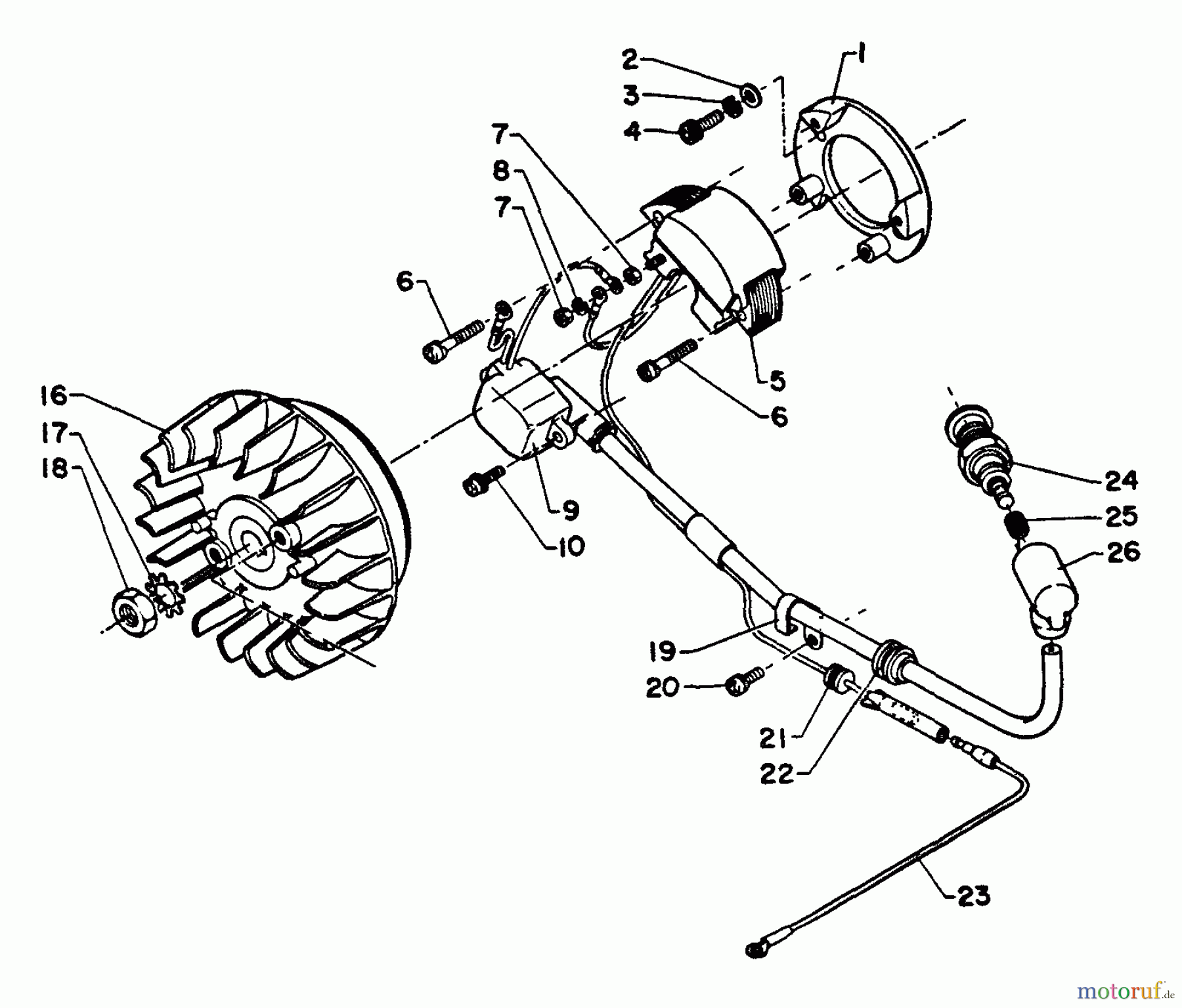

Magneto And Stator For Model CS-702EVL Only CS-702EVL - Echo Chainsaw

Pos		Article Number	Description
		1699999999999
		16Y16080012031
1		16-150629-12031	Ankerplatte
2		16-900600-00005	Scheibe PB-500/452GS/DH2200ST
3		16-900605-00005	Scheibe PB-250/EC-7600
4		16-900105-05015	Schraube
5		16-150601-12030	Elektronikmodul
6		16-900241-04025	Schraube
7		16-900500-00003	Mutter
8		16-900241-04025	Schraube
8		16-900605-00003	Scheibe
9		16-150626-12030	Zündspule Produktion
10		16-900242-04014	Schraube 4x14(Eisen)
16		16-150801-10230	Polrad Produktion eingestellt
17		16-900611-00010	Scheibe
18		16-100144-02830	Mutter
19		16-159110-10230	Clip Produktion eingestellt
20		16-900220-04010	Schraube
21		16-154111-03431	Buchse
22		16-153110-02830	Buchse
23		16-156131-03731	Leitung Produktion eingestellt
24		16-159010-10630	Zündkerze
25		16-159011-03432	Kontaktfeder CS-2600/4200/PB-
26		16-159012-03433	Zündkerzenkappe, Gummi PPT-
