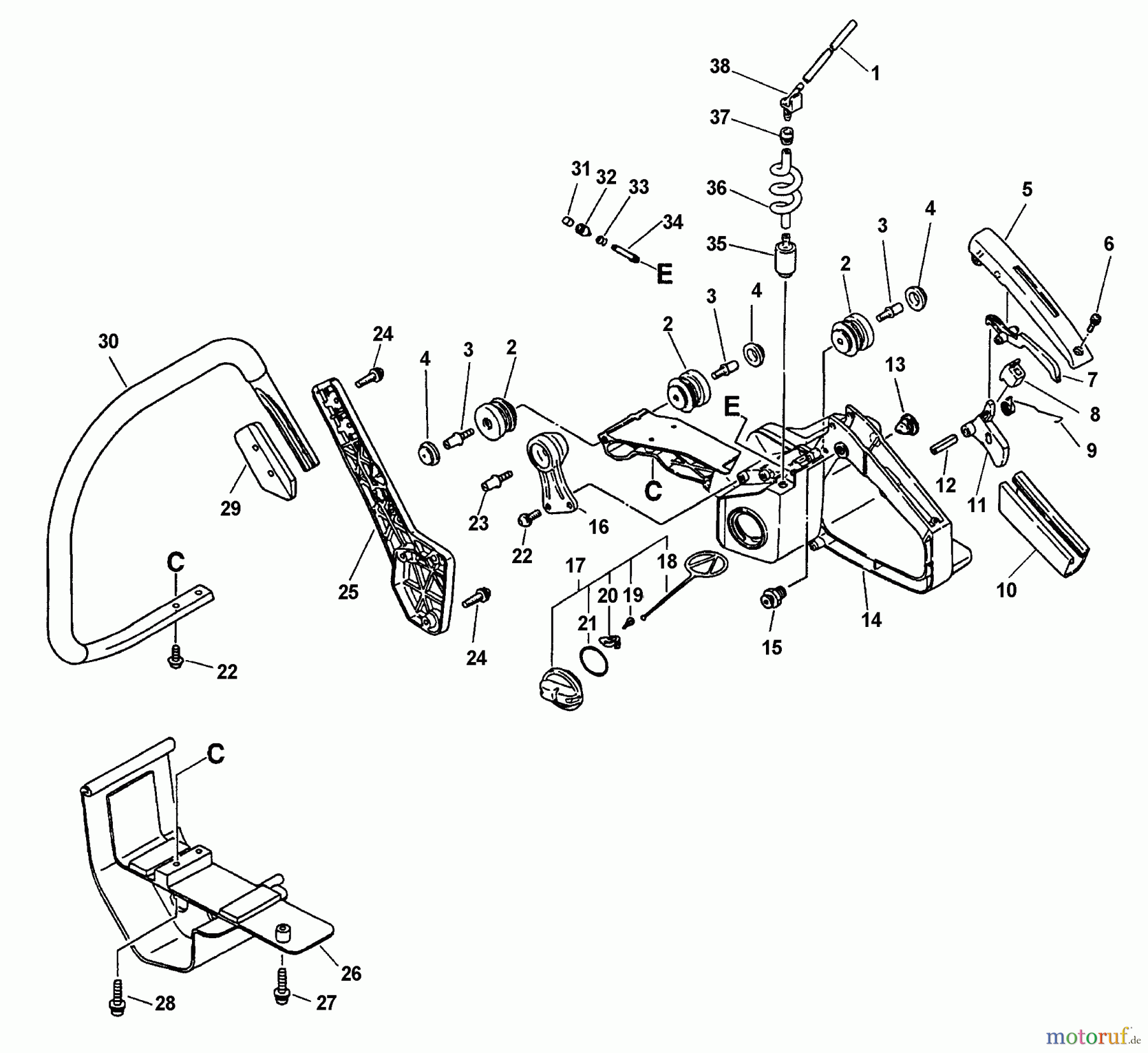

Echo QV-6700 Handles, Throttle Control, Fuel System Spareparts

Handles, Throttle Control, Fuel System QV-6700

Echo Rettungssäge QV-6700 Handles, Throttle Control, Fuel System
PosArticle NumberDescription
1 16-437217-20760Leitung SRM-2655
2 1610091032630
3 16-100915-32530Bolzen
4 16-100918-19830Abdeckkappe CS-3700
5 16-351155-30131Handgriffdeckel CS-4500/5501/
6 16-900238-04014Schraube 4x14
7 16-178090-37930Gashebelsperre CS-3700
8 16-178073-32430Gummipuffer für Gashebel
9 16-178043-19830Feder
10 16-351111-30130Griff CSG-6700, CS-3900/4400/
11 1617801038130
12 16-900342-50025Spannstift (10)
13 16-131329-32330Stopfen
14 1635110338131
15 16-178302-37930Halbgasknopf CS-3050/4200
16 16-100921-32431Gummipuffer CS-6701, CS-6700,
17 16-131004-37632Tankdeckel, Benzin
18 16-A365-000050Halter, Tankdeckel CS-3700ES/-
19 16-900246-03008Schraube
20 16-131050-19830Halter
21 16-900720-00029O-Ring CS-4500, CS-4601, CSG-
22 16-900162-05014Schraube M 5x14
23 16-100915-33930Schraube
24 16-900238-05020Schraube 5x20
25 1635161638230
26 1630510532630
27 16-900162-05025Schraube 5x25 CS-5100/PB-46LN/
28 16-900162-05030Schraube CS-3500,-3501, SRM-
29 1635161438230
30 16-351606-38130Handgriff vorne CS-5501/6701
31 16-A356-000031Ventil Tankbelüftung PAS-2400/
32 16-131328-40630Entlüftungsventilsitz CS-3700,
33 Echo Klipp (10) CS-6702, SRM-201016-130111-00530Klipp (10) CS-6702, SRM-2010
34 16-131312-32430Leitung(Gummi)
35 16-131205-19830Benzinfilter CS-3700/3900/
36 16-132010-30830Benzinleitung(Gummi)
37 16-132115-01461Dichtring (Gummi) CS-2600/PPT-
38 16-132011-19831Verbindungsstück CS-4500, CS-
