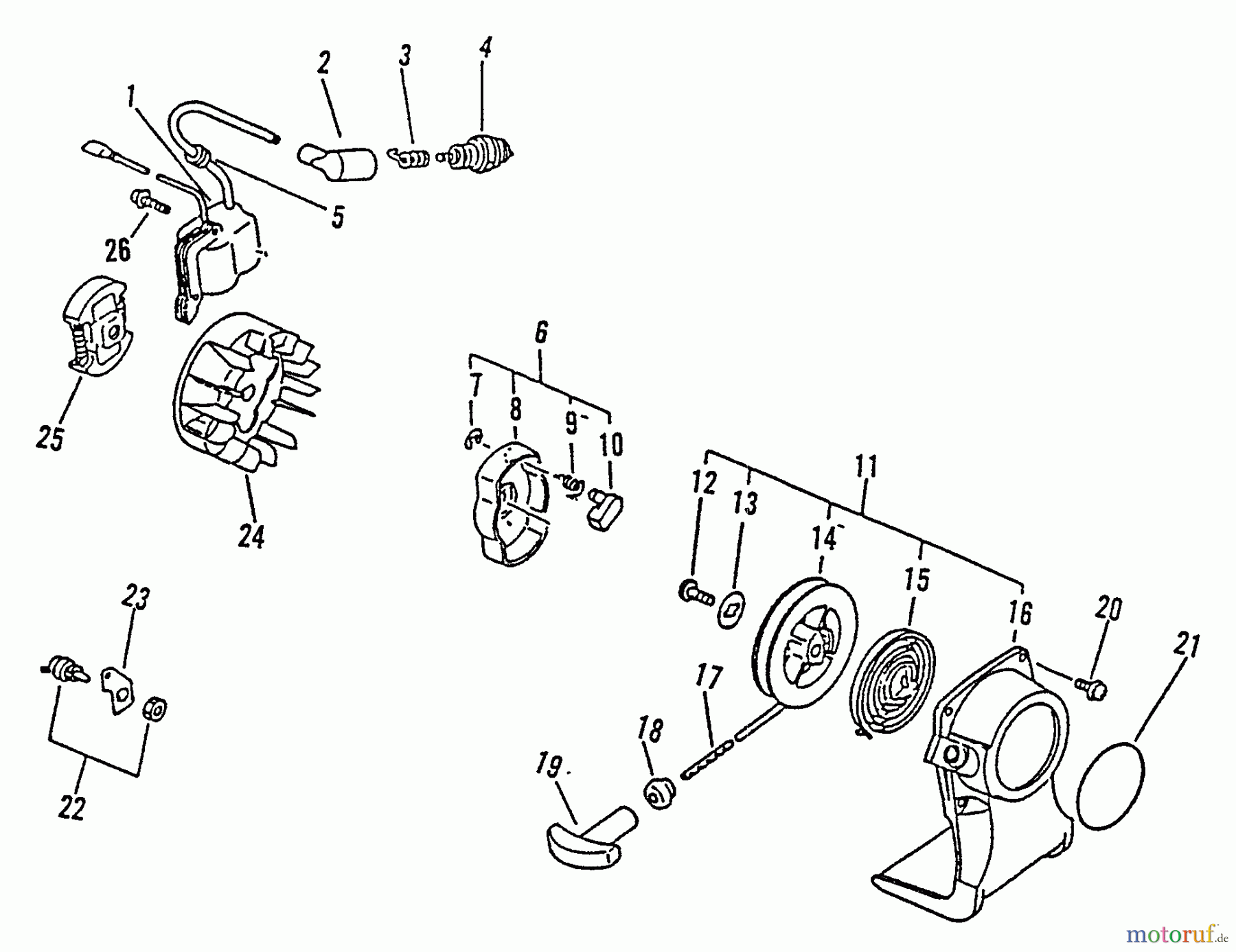

Echo GT-1100 - String Trimmer, S/N:098001 - 126000 Starter, Ignition, Stop Switch, Clutch Spareparts

Starter, Ignition, Stop Switch, Clutch GT-1100 - Echo String Trimmer, S/N:098001 - 126000

Echo Trimmer, Faden / Bürste GT-1100 - Echo String Trimmer, S/N:098001 - 126000 Starter, Ignition, Stop Switch, Clutch
PosArticle NumberDescription
1 16-150601-42030E-Modul
2 16-159012-01620Zündkerzenkappe SRM-2010, CS-
3 16-159011-03432Kontaktfeder CS-2600/4200/PB-
4 16-159010-10630Zündkerze
4 16-159010-10230Zündkerze CS-2600/SRM-320/350/
5 16-150112-44330Gummidichtung PPT-2100,PPT-
6 16-177202-44330Starterklinke ES-1000 ab Ser.-
7 16-900700-00004E-Ring, PB-6000 bis S.-Nr.:
8 16-177210-42030Halter
9 16-177234-12220Feder, Starterklinke RM-4000/
10 16-177218-42030Starterklinke
11 1617720044332
12 16-177236-40630Schraube PB-6000 bis S.-Nr.:
13 16-177214-42030Scheibe
14 16-177215-44430Seilscheibe SRM-2305/ES-2100/
15 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
16 1617723244332
17 16-177226-05530Starterseil
18 16-177227-42030Seilführung ES-2100/2400/HC-
19 16-177228-06530Startergriff ES-2100/2400/HC-
20 16-900238-04016Schraube 4x16
21 16X502000320
22 16-163400-03460Stop-Schalter ES-2000, HC-
23 16-163810-44330Schalterhalterung WP-1000
24 16-156801-44330Polrad
25 16-175000-56830Kupplung HCA-2400/2410 SRM-
26 16-900238-04022Schraube
