Echo GT-2100 - String Trimmer Carburetor -- C1U-K4 Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• GT-2100 - Echo String Trimmer
• Carburetor -- C1U-K4

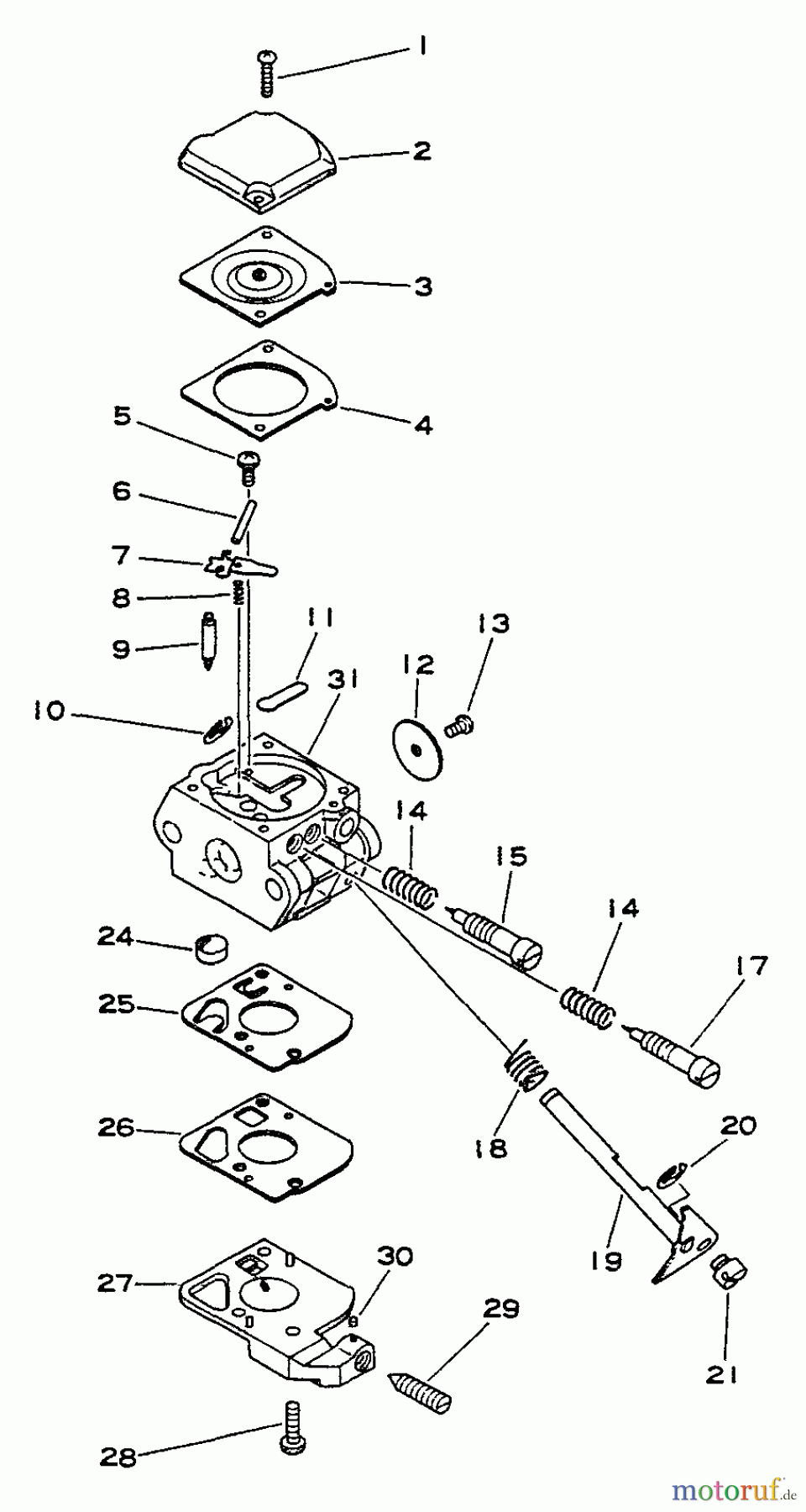

Carburetor -- C1U-K4 GT-2100 - Echo String Trimmer

Pos		Article Number	Description
		1612520042031
1		16-125344-52130	Schraube SHR-170SI
2		16-125342-13210	Deckel, Membrane
3		161917039
4		161
5		16-125339-42030	Schraube SHR-170SI
6		161
7		161
8		161
9		16-125337-06960	Ventil ES-2100, SRM-2450, PB-
10		16-125327-15130	Clip
11		1612530015130
12		16-125316-42030	Ventil
13		16-125314-13930	Schraube
14		16-125319-42030	Feder ES-2100, HC-2100, PB-
15		16-125320-42030	Einstellnadel
17		16-125318-51330	Einstellschraube SRM-3550
18		16-125313-42030	Feder ES-2000,HC-2100,PP-600,
19		16-125317-42030	Gasgestänge
20		16-125327-13930	Clip
21		16-125372-42030	Schraube
24		16-125326-42030	Filter SRM-2450, PB-2455, HC-
25		16-125312-42030	Membrane HC-2100, PB-2455,
26		161
27		16-125324-42030	Deckel
28		16-125310-42030	Schraube
29		16-125334-13930	Einstellschraube
30		16-125378-13930	Hülse
