Echo SRM-2010 - String Trimmer, Starter, Magneto, Clutch Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• SRM-2010 - Echo String Trimmer,
• Starter, Magneto, Clutch

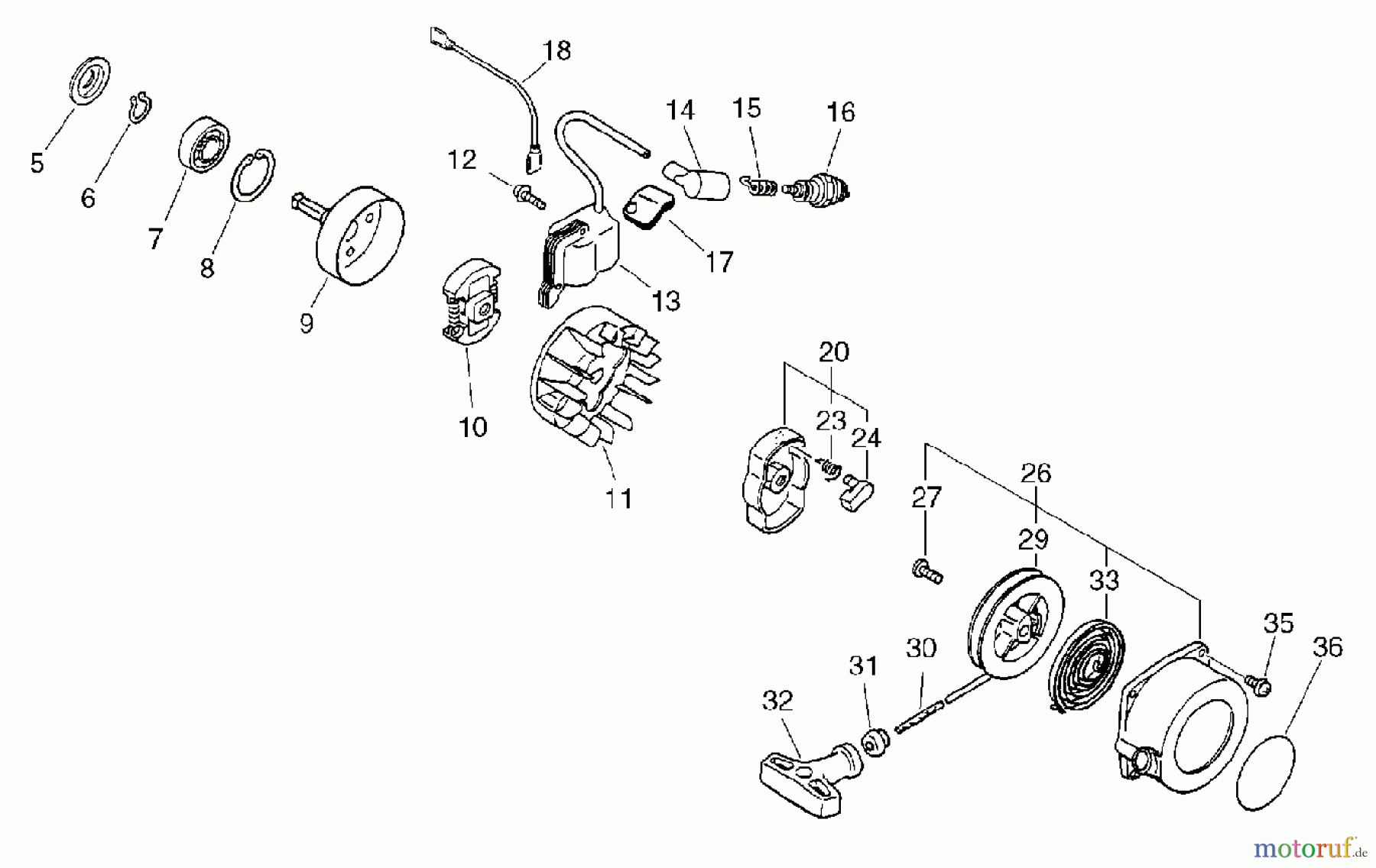

Starter, Magneto, Clutch SRM-2010 - Echo String Trimmer,

Pos		Article Number	Description
5		16-175053-04920	Ring
6		16-900701-00012	Seegerring außen 12mm
7		16-94054-06201	Kugellager
8		16-900702-00032	Seegerring, innen, 32mm
9		16-175005-46730	Kupplungstrommel SRM-2010,
10		16175000-52131
11		16-156801-44731	Polrad, Schwungmagetzünd. ES-
12		16-900238-04022	Schraube
13		1615660152131
14		16-159012-01620	Zündkerzenkappe SRM-2010, CS-
15		16-159011-03432	Kontaktfeder CS-2600/4200/PB-
16		16-159017-10230	Zündkerze
17		16-150112-42030	Tülle
18		16-162021-52830	Kabel HCR-1500
20		16-177202-44331	Starterklinke ES-1000 ab Ser.-
23		16-177234-12220	Feder, Starterklinke RM-4000/
24		16-177218-44330	Starterklinke SRM-2450/PB-
26		16-177200-42033	Starter kpl. ES-2000/2100/
27		16-177236-44330	Schraube CS-2600/ SRM-320/350/
29		16-177215-44430	Seilscheibe SRM-2305/ES-2100/
30		16-177226-10120	Starterseil PB-250
31		16-177227-42030	Seilführung ES-2100/2400/HC-
32		16-177228-06530	Startergriff ES-2100/2400/HC-
33		16-177220-42030	Starterfeder ES-2100/2400/HC-
35		16-900238-04016	Schraube 4x16
36		16X502000190
