Echo SRM-210U - String Trimmer/Brush Cutter, S/N:08001001 - 08999999 Engine Cover, Starter -- i-30 Spareparts

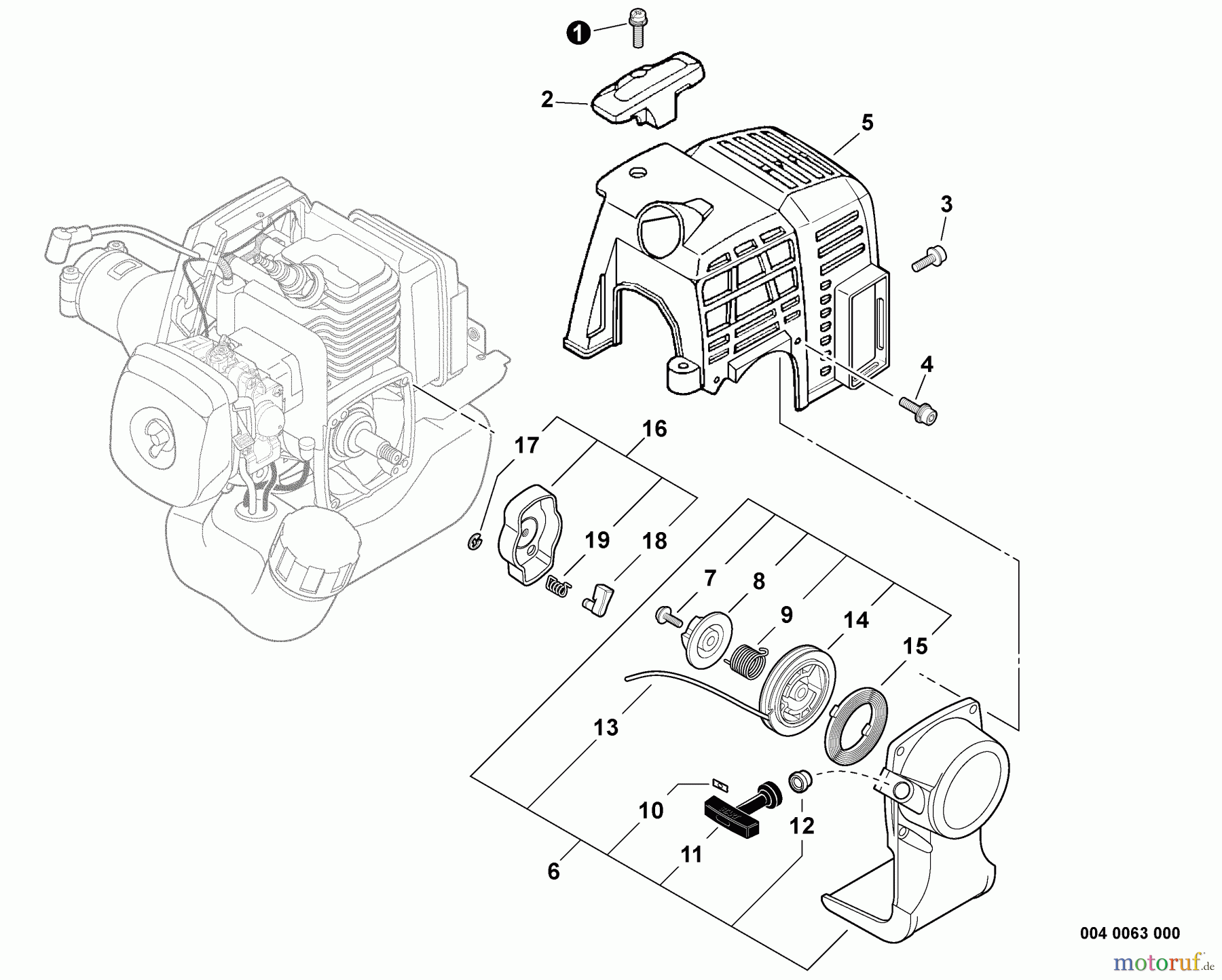

Engine Cover, Starter -- i-30 SRM-210U - Echo String Trimmer/Brush Cutter, S/N:08001001 - 08999999

Echo Trimmer, Faden / Bürste SRM-210U - Echo String Trimmer/Brush Cutter, S/N:08001001 - 08999999 Engine Cover, Starter -- i-30
PosArticle NumberDescription
1 16-900238-05016Schraube 5*16
2 16-A162-000050Schutz, SRM-2306
3 16-91107-04008Schraube HCR-1510
4 16-900163-04016Schraube
5 16A160000570
6 16A051000681
7 16-177236-61830Schraube CS-2600ES/CS-2700ES/
8 16-P022-008280Platte, mit Nocken PB-265ESL/
9 16-P022-008270Feder PB-265ESL/PPT-300ES
10 16-177246-11120Abdeckung, Starter Knopf CS-
11 16-177228-27030Startergriff PB-260LS/SRM-
12 16-177227-42030Seilführung ES-2100/2400/HC-
13 16-P022-008260Starterseil HCR-161ES / HCR-
14 16-P022-006830Seilscheibe HC-30ES
15 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
16 16-A052-000180Starterklinke kompl. SRM-
17 16-P022-002100E-Ring DH-2200/PB-500/EA-410/
18 16-P022-006850Mitnehmer, Starter DH-2200/HC-
19 16-177234-12220Feder, Starterklinke RM-4000/
