Echo SRM-2450 - String Trimmer (Type 1E) Intake, Air Cleaner, Exhaust Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• SRM-2450 - Echo String Trimmer (Type 1E)
• Intake, Air Cleaner, Exhaust

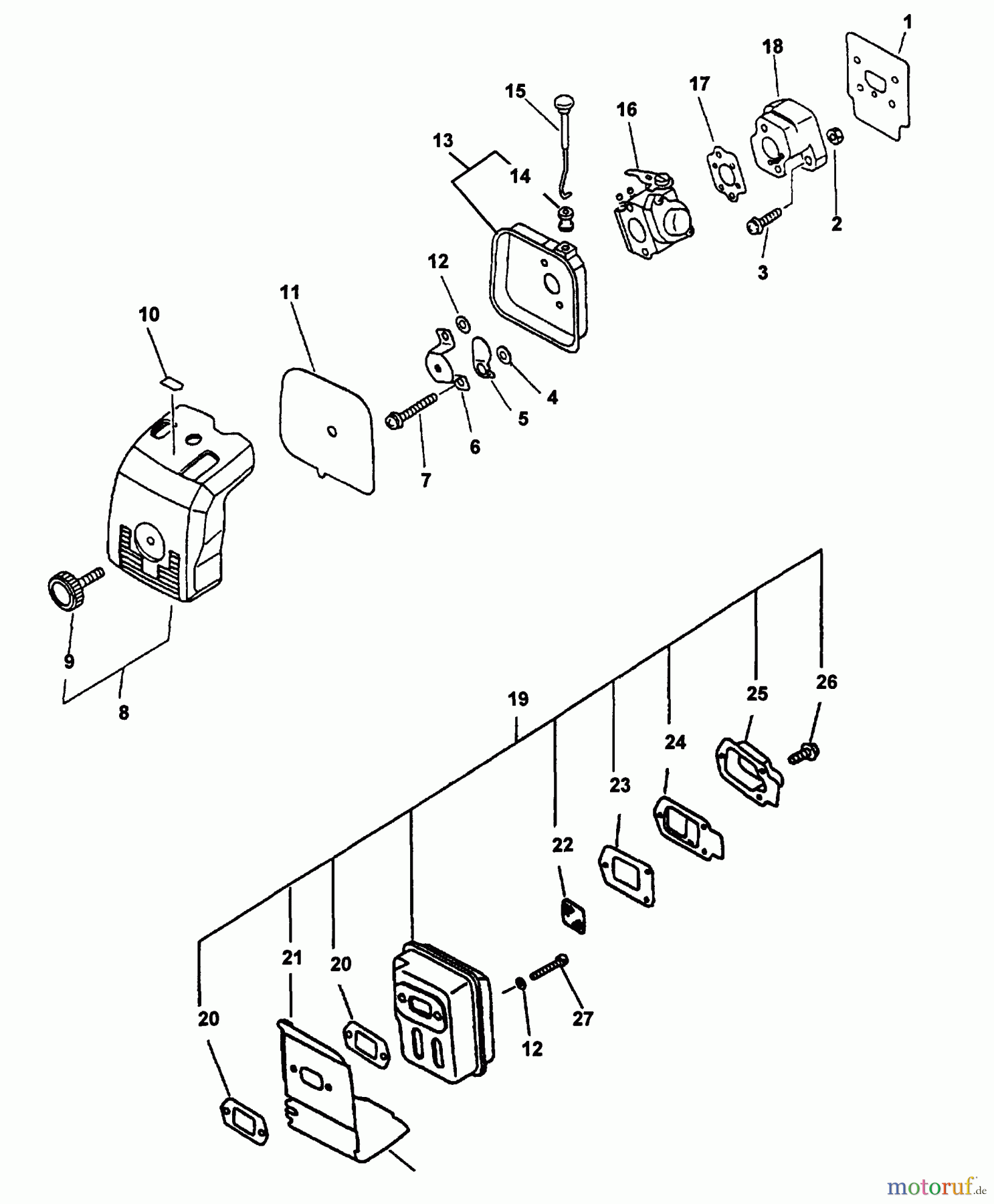

Intake, Air Cleaner, Exhaust SRM-2450 - Echo String Trimmer (Type 1E)

Pos		Article Number	Description
1		16-V103-001360	Dichtung, Ansaugleitung SHR-
2		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
3		16-900238-05020	Schraube 5x20
4		16-178516-00830	Distanzring GT-2150, HCA-2500,
5		16-178515-05060	Chokeklappe HCA-2500, HCR-
6		16-129011-52131	Platte / HC-2400 HCA-2500,
7		16-900242-05057	Schraube PB/HC
8		16-130302-52131	Luftfilterdeckel SRM-3150
9		16-130406-16331	Rändelmutter HCA-2400, SRM-
10		1689012152130
11		16-130310-51830	Luftfilter SRM-2655 HCA-2400/
12		16-900600-00005	Scheibe PB-500/452GS/DH2200ST
13		16-130301-51730	Luftfiltergehäuse
14		16-178810-05230	Dichtring HCA-2500, HCR-1510,
15		16-178510-51730	Chokegestänge
16		16-123000-52132	Vergaser HCA-2400 GT-2400 ,
17		16-130010-05960	Dichtung
18		16-130017-42031	Zwischenflansch HC-2400, SRM-
19		1614580052631
20		16-V104-000160	Dichtung, Auspuff PB-2400, GT-
21		16-145871-52130	Auspuffschutz HC-2400
22		16-145862-40630	Funkenschutzsieb SHR-170SI/
23		16-145866-42031	Dichtung HC-2410/SRM-250/GT-
24		16-145876-42030	Auslasstutzen, Auspuff ES-
25		16-145818-52130	Auspuffabdeckung PPT-2400
26		16-900238-04010	Schraube M4 x 10 ES-2400,PB-
27		16-900105-05055	Schraube EA-410/SHR-170SI/T-
