Echo SRM-2500 - String Trimmer Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Spareparts

Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle SRM-2500 - Echo String Trimmer

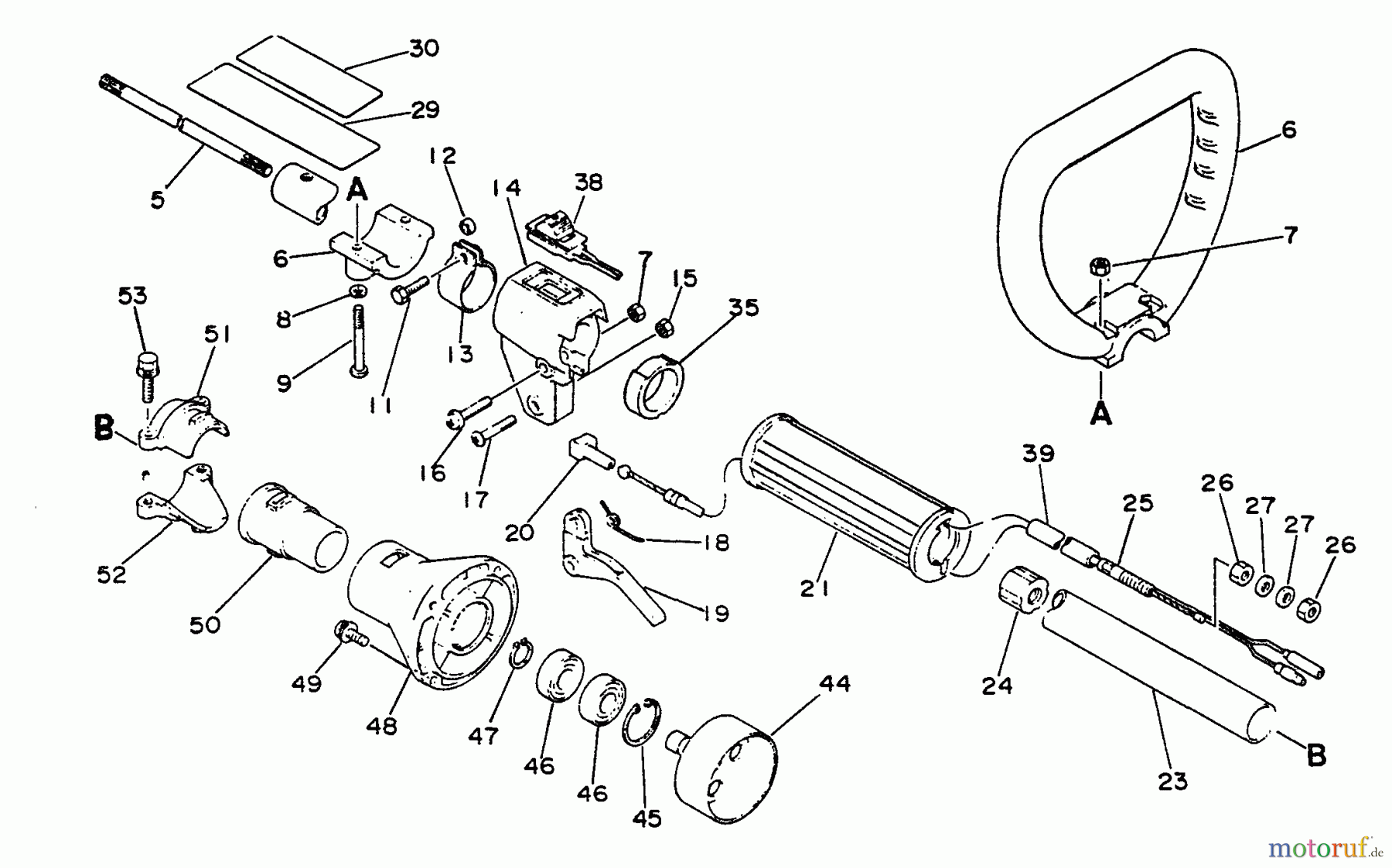

Echo Trimmer, Faden / Bürste SRM-2500 - Echo String Trimmer Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle
PosArticle NumberDescription
5 16-610011-25530Antriebswelle 7mm, 1540mm
6 16-351201-08930Zsb. Griff
7 16-900500-00005Mutter PPT-300ES/T-226 EDR-
8 16-900600-00005Scheibe PB-500/452GS/DH2200ST
9 16-900220-05040Schraube
11 16-900100-05018Schraube
12 16-699012-03330Distanzscheibe SRMF-3, HCA-
13 16-301207-08930Ring HCA-2500, SRM-2010/2450/
14 1699999999999
15 16-900560-00005Mutter M5, selbstsichernd (10)
16 16-900242-05030Schraube
17 16-178110-05330Schraube
18 16-178043-06930Feder RM-310, SRM-200AE, SRM-
19 16-178010-05631Gashebel
20 16-178048-05630Halterung RM-310, SRM-200AE,
21 16-351012-24330Griff SRM-200BE, 250G SRM-
23 16-610206-23030ZSB.Gestänge SRM 250 150cm
24 16-610105-08930Antriebsstück
25 1617800140930
26 16-900502-00006Mutter SRMF-340 6 (3N)
27 16-900600-00006Scheibe
29 1689016044730
30 1689017709130
35 1617807627230
38 16-163400-49330Stopschalter SRM-2655L
39 1617812740930
44 1617500540930
45 16-900702-00028Seegerring, innen, 28mm
46 16-900802-06001Kugellager
47 16-900701-00012Seegerring außen 12mm
48 16-610223-44730Kupplungsgehäuse SRM 2450
49 16-900242-05016Schraube
50 16-610910-27832Gummilager SRM 2450
51 16-610922-27432Halter HCA-2410
52 16-610923-27432Halter
53 16-900142-05025Schraube HCA-2400, PAS-2400,
