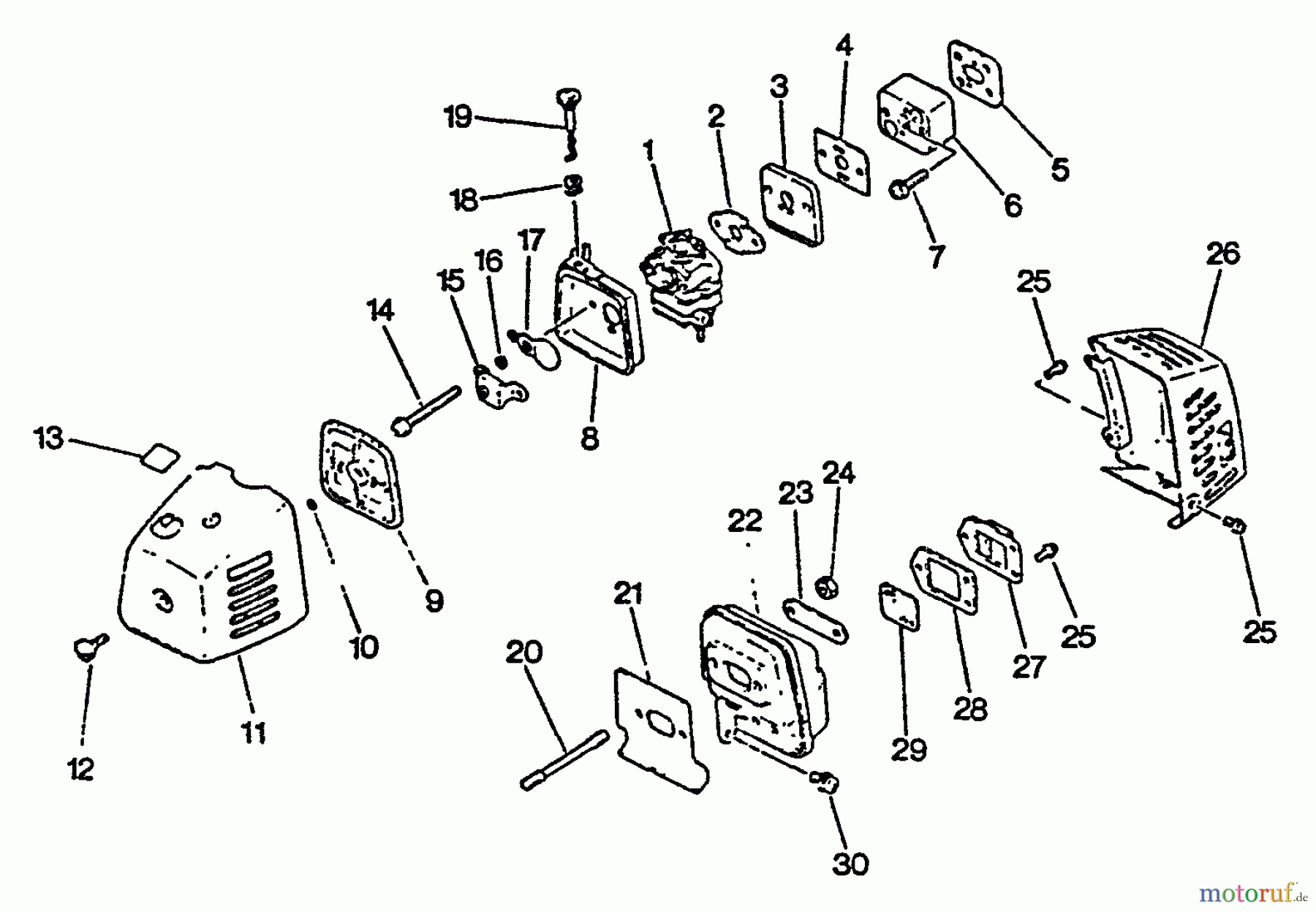

Echo SRM-2501 - String Trimmer, S/N:0025001 - 0043000 Intake, Exhaust, Air Cleaner Spareparts

Intake, Exhaust, Air Cleaner SRM-2501 - Echo String Trimmer, S/N:0025001 - 0043000

Echo Trimmer, Faden / Bürste SRM-2501 - Echo String Trimmer, S/N:0025001 - 0043000 Intake, Exhaust, Air Cleaner
PosArticle NumberDescription
1 1699999999999
2 1613001640931
3 1613002641030
4 1613002240931
5 16-130010-22331Dichtung SRM-250E
6 1613000740930
7 16-900238-05022Schraube SRM-4000L,-5000L/T-
8 1613030740930
9 1613031040930
10 16-900720-00004O- Ring/SHR-170SI
11 1613030240930
12 16-130415-40630Schraube
13 16-X506-000070Aufkleber CHOKE HCR-1510
13 1689012112330
14 16-900238-05050Schraube 5 x 50 CS-2600
15 1612900640930
16 16-178516-00830Distanzring GT-2150, HCA-2500,
17 1617851540630
18 16-178810-05230Dichtring HCA-2500, HCR-1510,
19 1617851049130
20 16-101014-22330Stehbolzen
21 16-145510-22331Dichtung, Auspuff
22 1614580627230
23 16-145642-22330Scheibe
24 16-900560-00005Mutter M5, selbstsichernd (10)
25 16-900238-04008Schraube
26 1614590640932
27 1614590540930
28 16-145866-27231Auspuffdichtung
29 1614586227230
30 16-900238-05010Schraube M5x10
