Echo SRM-2510 - String Trimmer, S/N:079352 - 098240 Handles, Ignition Switch, Shoulder Strap, Throttle Spareparts

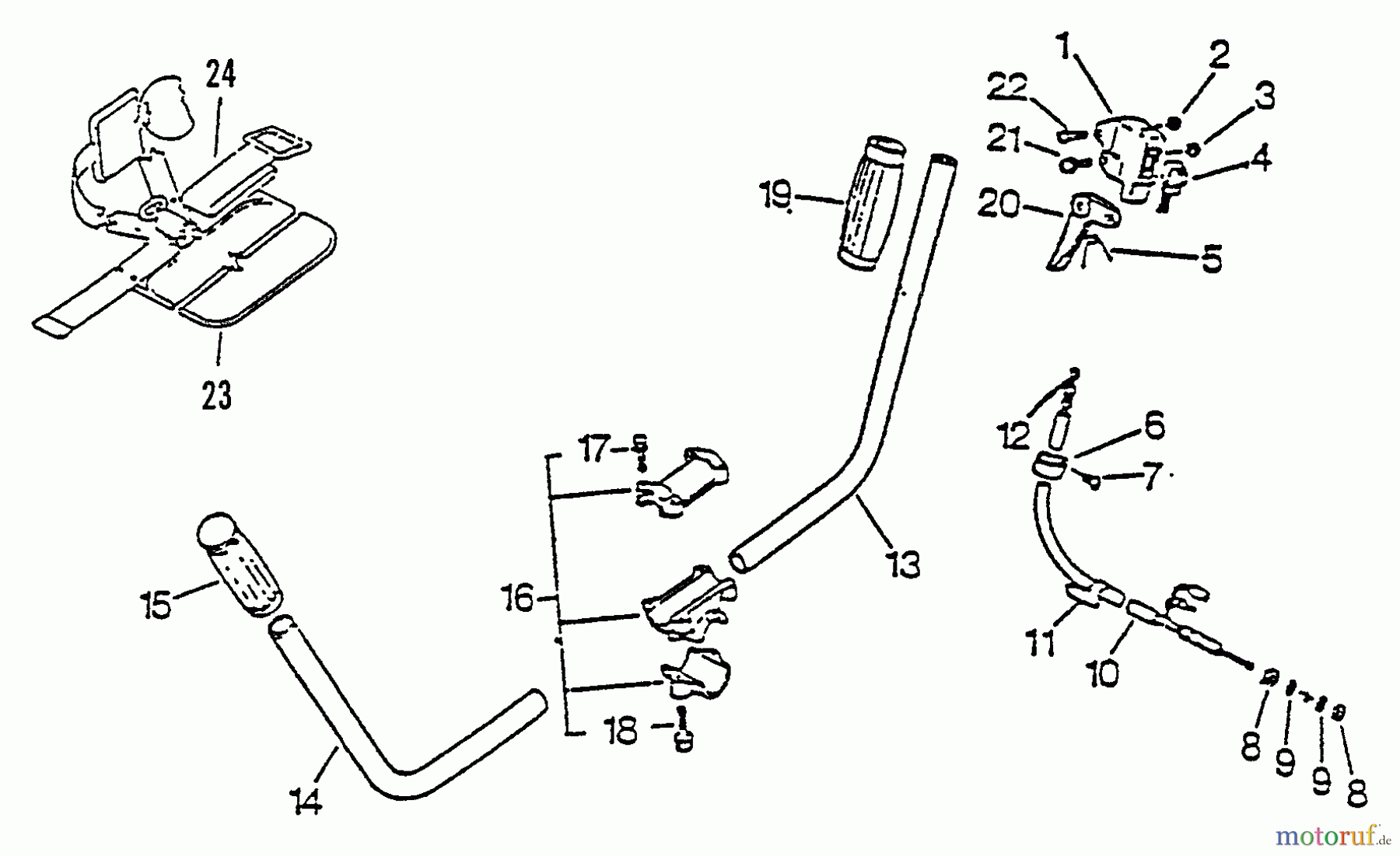

Handles, Ignition Switch, Shoulder Strap, Throttle SRM-2510 - Echo String Trimmer, S/N:079352 - 098240

Echo Trimmer, Faden / Bürste SRM-2510 - Echo String Trimmer, S/N:079352 - 098240 Handles, Ignition Switch, Shoulder Strap, Throttle
PosArticle NumberDescription
1 16-178024-51830Halterung
2 16-900560-00005Mutter M5, selbstsichernd (10)
3 16-900500-00005Mutter PPT-300ES/T-226 EDR-
4 16-163400-41030Stop-Schalter
5 16-178043-05230Feder
6 16-178106-05330Band
7 16-900220-05010Schraube
8 16-178021-05530Mutter
9 16-900600-00006Scheibe
10 16-178127-41030Tülle
11 16-178111-04930Clip
12 1699999999999
13 16-351010-05530Griff
14 16-351210-05530Griffrohr links SRM-3800
15 16-351311-02330Griff SRM-2015,2305,2455,2655,
16 16-P021-000460Griffhalter kpl.
17 16-900142-05025Schraube HCA-2400, PAS-2400,
18 16-900100-06030Schraube Produktion
19 16-351315-22130Handgriff
20 1617801006460
21 16-900220-05025Schraube
22 16-178110-05330Schraube
23 16-C652-000000Schutzpolster / SRM-2010
24 16C062000070
