Echo SRM-3000 - String Trimmer, S/N:037501 - 043225 Intake, Exhaust, Air Cleaner, Fuel System Spareparts
Start
Echo
Trimmer, Faden / Bürste
SRM-3000 - Echo String Trimmer, S/N:037501 - 043225
Intake, Exhaust, Air Cleaner, Fuel System

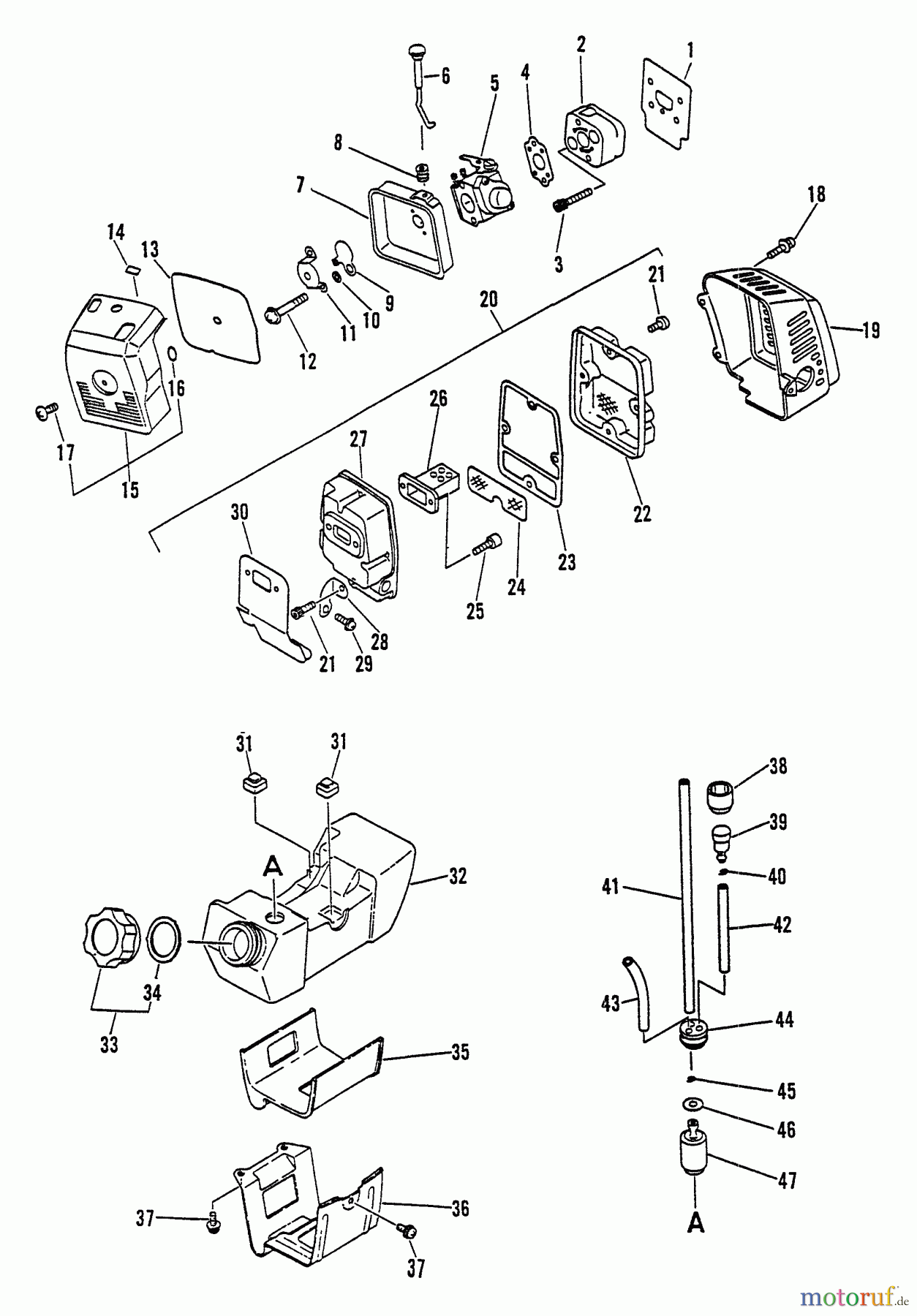

Intake, Exhaust, Air Cleaner, Fuel System SRM-3000 - Echo String Trimmer, S/N:037501 - 043225
Pos
Article Number
Description
1
16-130016-42031
Dichtung(Papier)
2
1613000751330
3
16-900162-05025
Schraube 5x25 CS-5100/PB-46LN/
4
16-130016-42031
Dichtung(Papier)
5
1612520051332
6
16-178510-51730
Chokegestänge
7
16-130314-51730
Luftfiltergehäuse HCA-2400
8
16-178810-05230
Dichtring HCA-2500, HCR-1510,
9
16-178515-05060
Chokeklappe HCA-2500, HCR-
10
16-178516-00830
Distanzring GT-2150, HCA-2500,
11
1699999999999
12
16-900238-05045
Schraube
13
16-130310-51730
Luftfilter SRM-3150
13
16-130310-51830
Luftfilter SRM-2655 HCA-2400/
14
16-X506-000070
Aufkleber CHOKE HCR-1510
15
16-130302-51731
Luftfilterdeckel SRM-3150
16
16-900720-00003
O-Ring(Gummi)
17
16-130406-16331
Rändelmutter HCA-2400, SRM-
18
16-900238-04008
Schraube
19
1614562151833
20
1614580051330
21
16-900162-05014
Schraube M 5x14
22
1614586151330
23
1614586651330
24
1614586251030
25
16-900105-05018
Schraube 452GS (10)
26
1614585951230
27
1614581051330
28
1614571151330
29
16-900238-05010
Schraube M5x10
30
1614551051330
31
16-131924-05530
Gummilager SRM-310E
32
1613101051830
33
16-131004-55830
Tankdeckel HC-1500, HC-2400,
34
16-131016-40930
Dichtung ES-2000, HC-2100,
35
1613192441030
36
1613191041030
37
16-900238-05012
Schraube 5x12, CS-3501
38
16-131328-40630
Entlüftungsventilsitz CS-3700,
39
16-131300-56430
Entlüftungsventil CS-3500-1/
40
16-132013-09820
Clip CS-2600/-3700/SRM-250/GT-
41
16-V471-001190
Benzinleitung (Gummi) SRM-
42
16-132010-51230
Benzinleitung(Gummi)
43
16-132010-56330
Überlaufleitung 9cm CS/ES/GT/
44
16-132115-46730
Dichtring HC-1500/HCR-1500/
45
16-130111-00530
Klipp (10) CS-6702, SRM-2010
46
16-900603-00005
Scheibe(Eisen) CS-2600/PB-250/
47
16-131205-14930
Filter SHR-4100
