Echo SRM-340 - String Trimmer, S/N:04001001 - 04999999 Engine, Short Block, Cylinder Cover Spareparts

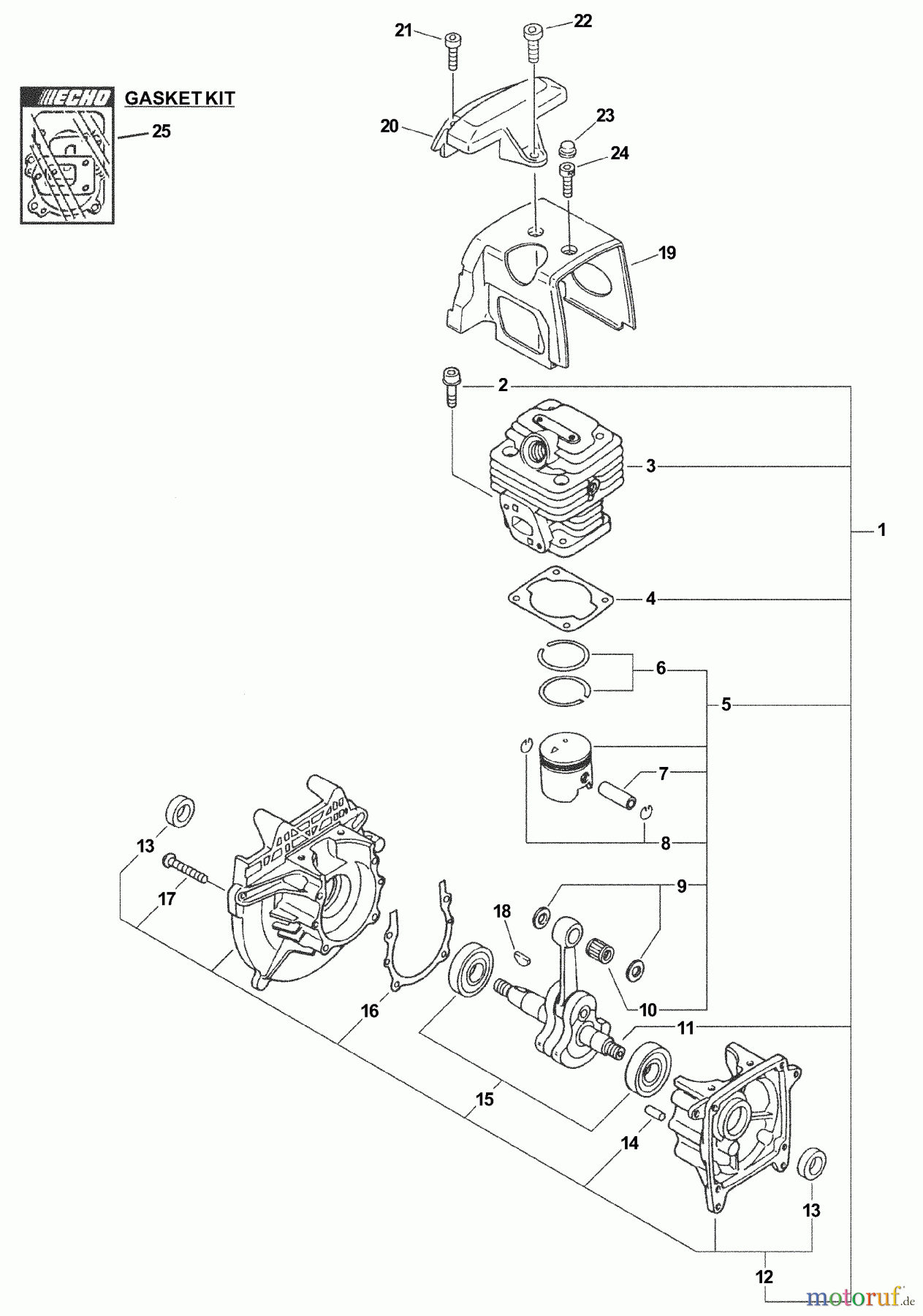

Engine, Short Block, Cylinder Cover SRM-340 - Echo String Trimmer, S/N:04001001 - 04999999

Echo Trimmer, Faden / Bürste SRM-340 - Echo String Trimmer, S/N:04001001 - 04999999 Engine, Short Block, Cylinder Cover
PosArticle NumberDescription
1 16SB1029
2 16-900162-05020Schraube M5x20 PB-6000/-46LN/-
3 16-A130-000601Zylinder SRM-3150
4 16-101010-55430Fußdichtung, Papier SRM-3150/
5 16-P021-015780Kolben SRM-350
6 16-100011-42230Kolbenring SRM-350/350ES
7 16-100013-27430Kolbenbolzen SRM-320, SRM-350
8 16-100015-03931Sicherungsring
9 16-100014-53630Distanzscheibe, Kolben SRM-
10 16-100012-16131Nadellager SRM-320/SRM-350/
11 16-100100-55430ZSB.Kurbelwelle SRM-3150, SRM-
12 16-100204-55430Kurbelgehäuse, kompl. SRM-320/
13 16-100213-05530Simmerring SRM-320/350/RM-
14 16-V622-000020Stift
15 16-94035-36201Kugellager EA-410/SHR-170SI
16 16-V102-000040Dichtung Kurbelgehäuse SRM-
17 16-900162-05030Schraube CS-3500,-3501, SRM-
18 16-100142-12330Polradkeil CS-3500/3501/SRM-
19 1610157655730
20 1615990540930
21 16-900162-04014Schraube
22 16-900162-05016Schraube 5x16 (10) PB-260L,
23 16-880516-09220Abdeckkappe
24 16-900162-05012Bolzen EA-410
25 1688900055730
