Echo SRM-3605U - String Trimmer, S/N: 20001001 - 20999999 Blade Debris Shield, Blade Spareparts

• Start
• Echo
• Trimmer, Faden / Bürste
• SRM-3605U - Echo String Trimmer, S/N: 20001001 - 20999999
• Blade Debris Shield, Blade

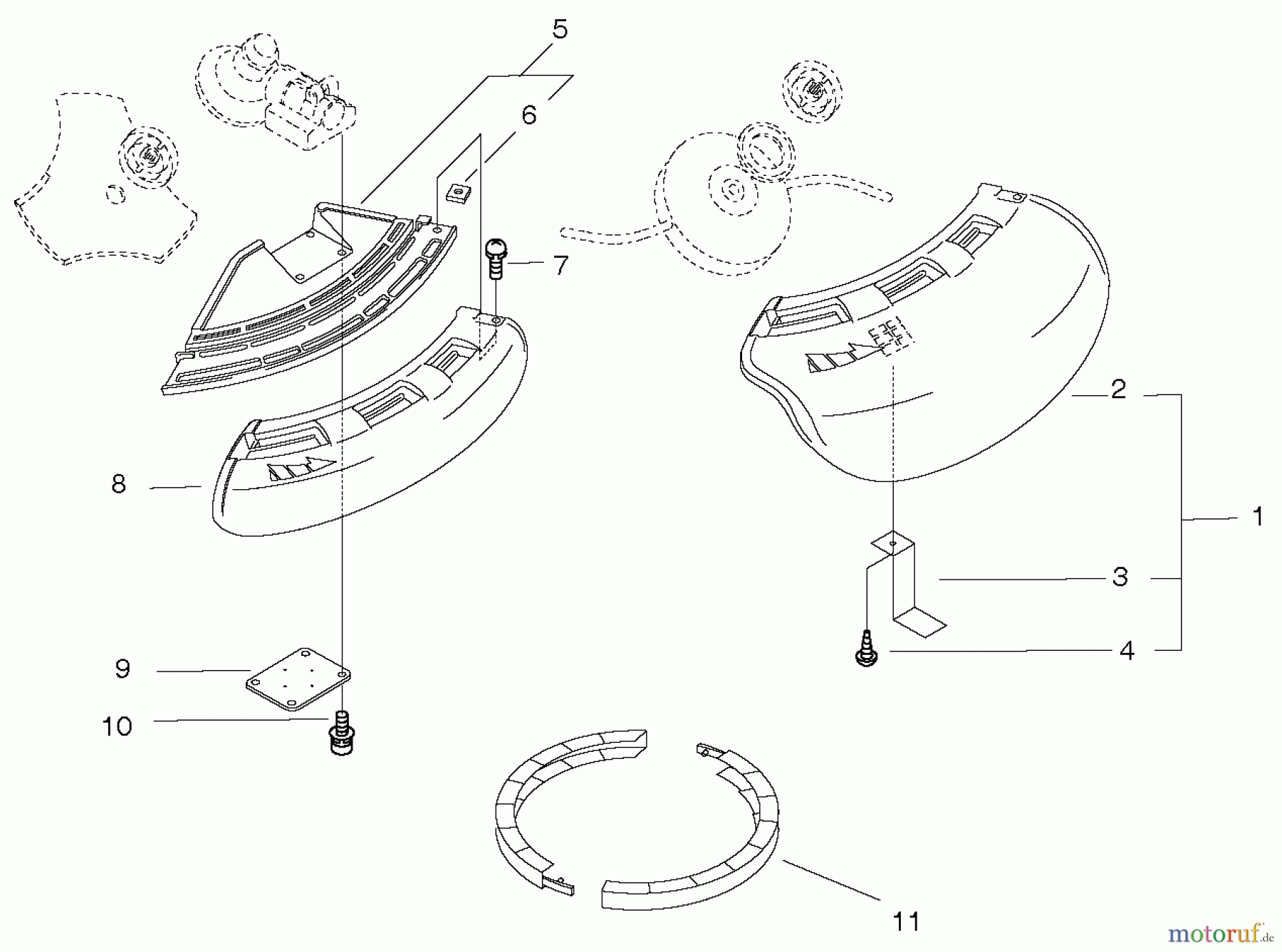

Blade Debris Shield, Blade SRM-3605U - Echo String Trimmer, S/N: 20001001 - 20999999

Pos		Article Number	Description
1		16-P021-002622	Schlagschutz für Fadenkopf
2		16-C550-000082	Schutzschild, Fadenkopf SRMF-
3		16-C554-000000	Abschneider alle neue SRM
4		16-900252-05012	Schraube M5x12 SRMF-340 (10)
5		16-C550-000102	Schutzschild, Messer, SRMF-340
6		16-900565-00005	Mutter 5*12 SRMF-340/PPT-300ES
7		16-91118-05022	Schraube SRMF-340
8		16-C550-000092	Schutzschild, Messer alle neue
9		16-C552-000200	Befestigungsplatte
10		16-V203-001980	Schraube
11		1689852347131
