Murray G4315160 - 43" Lawn Tractor (1997) Engine & Control Assembly Spareparts

• Start
• Murray
• Rasen- und Gartentraktoren
• G4315160 - Murray 43" Lawn Tractor (1997)
• Engine & Control Assembly

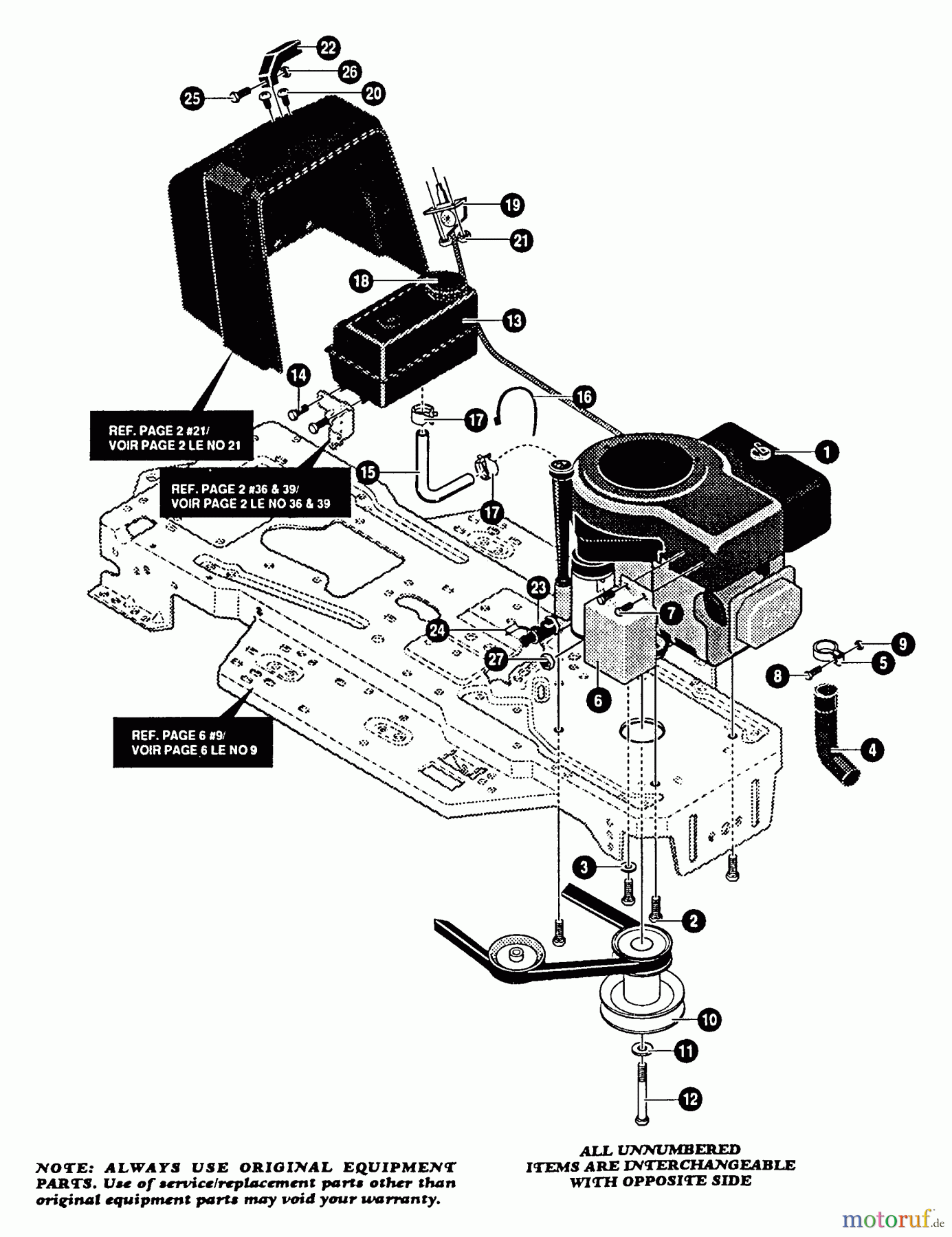

Engine & Control Assembly G4315160 - Murray 43" Lawn Tractor (1997)

Pos		Article Number	Description
1		BS	Eingangswelle UE 600
2		BS50947
3		BS138489MA	UNTERLEGSCHEIBE, EXLK .384X.6
4		BS327868
5		BS328024
6		BS327785-853
7		BS995346
8		BS180083
9		BS120376MA	MUTTER 31-18 REG HEX ZI
10		BS328029
11		BS120383MA	SCHEIBE
12		BS428644MA	SCHRAUBE,7/16-20X5.00 HH
13		BS309853MA	TANK FUEL 1.5
14		BS300303MA	SCREW,.25X.75X.51HHWA
15		BS42258
16		BS57444MA	VERBINDUNGSKABEL
17		BS47345MA	CLAMP, SCREW TYPE
18		BS12501MA	TANKDECKEL
19		BS329148MA	THROTTLE,CONTROL 12HP
20		BS155941
21		BS308459MA	71175410-24 HXHDNYLK
22		BS300508MA	KNOPF,DROSSELREGELUNG SCHWARZ
23		BS325547MA	OIL DRAIN VALVE ASSE
24		BS327422MA	ABLAUFKAPPE
25		BS159585
26		BS120622
27		BS124818
