Murray 107.277680 (2690514) - Craftsman ZTS7500, 19HP B&S w/42" Mower Deck (2005) (Sears) Controls Group (986806) Spareparts

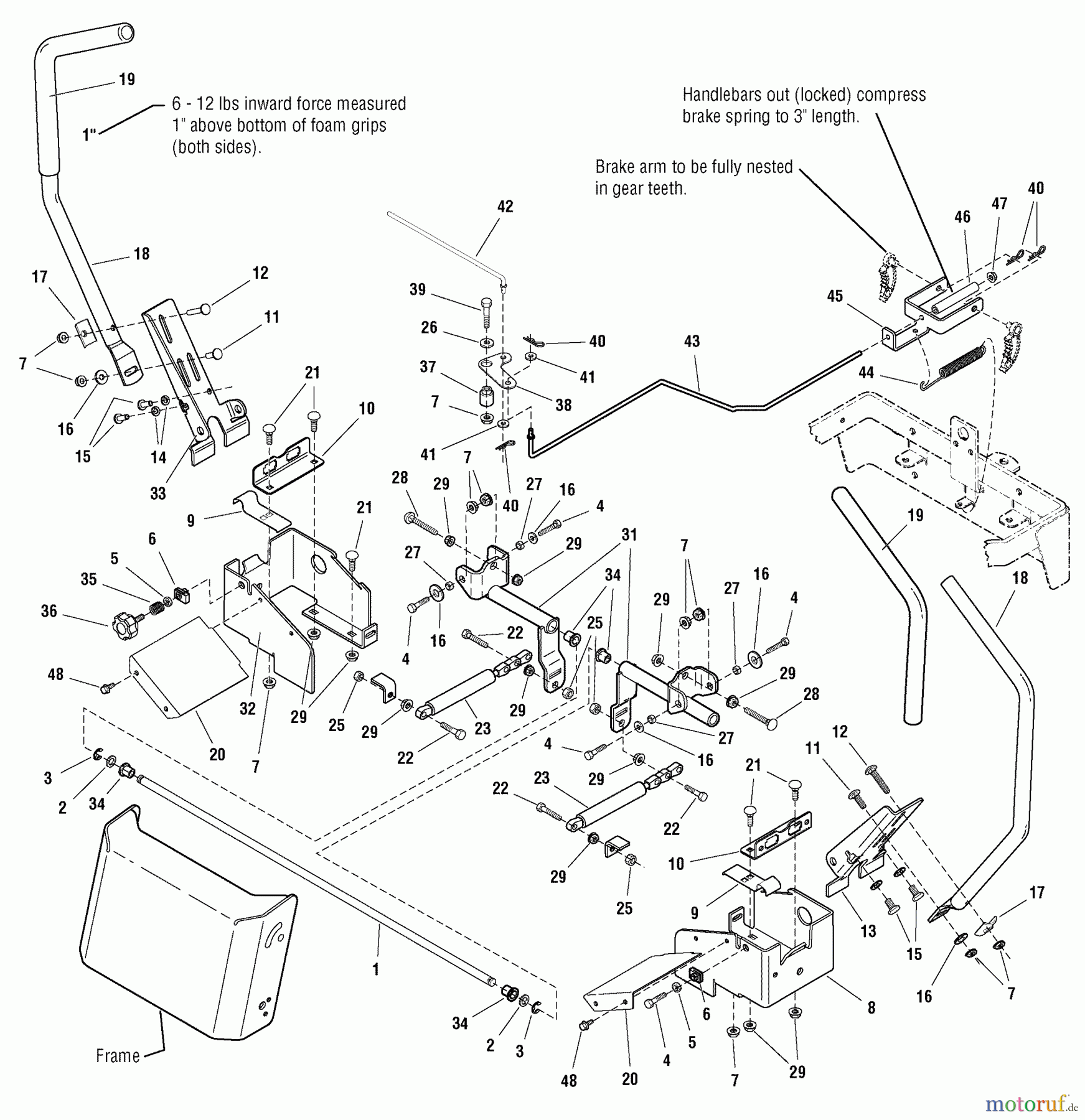

Controls Group (986806) 107.277680 (2690514) - Craftsman ZTS7500, 19HP B&S w/42" Mower Deck (2005) (Sears)

Murray Nullwendekreismäher, Zero-Turn 107.277680 (2690514) - Craftsman ZTS7500, 19HP B&S w/42
PosArticle NumberDescription
1 BS1725927SMSCHAFT-05.00 DIA 31.23
2 BS1960027SMABZIEHER-SCHEIBE
3 BS1703805SMLAGERRING
4 BS1921977SMCAPSCREW - HEX HD
5 BS1920161SMNUT-HEX JAM 5/16-18
6 BS1960717SMSCHNELLMUTTER 5/16-18 LUG
7 BS1960686SMNUT, HEX
8 BS1728009ASMHALTER SCHIEBEGRIFF
9 BS1727919SMCLIP-BREMSE 18GA ZT70
10 BS1727663ASMHALTER-"L" SCHALTER
11 BS1931335SMBOLT-RD HD SH SQ NK 5
12 BS1931338SMBOLT-RD HD SH SQ NK 5
13 BS1727926ASMSCHLAUCHHALTER LINKS
14 BS1917356SMLOCKWASHER
15 BS1960086SMSCREW, TRUSS HD TORX
16 BS1919381SMABZIEHER-SCHEIBE
17 BS1720452SMCLAMP
18 BS1727796ASMSCHLAUCH-1.00 OD 21.67LG
19 BS1726410SMFORMGRIFF HALTEGRIFF
20 BS1727933ASMSEARS COVER-LOWER HAN
21 BS1960223SMBOLZENACHSE HD SH SQ NK5
22 BS1921221SMCAPSCREW-HEX HD 5/16
23 BS1727918SMVIBRAT.DAMPFER 7.152/
25 BS1919438SM
26 BS1919326SMSCHEIBE - 0.312(0.34IDX
27 BS1666697SMSPACER
28 BS1960723SMBOLT - RD HD
29 BS1931277SMMUTTER - HEX
31 BS1727603ASMACHSE KOMPL.
32 BS1728010ASMHALTER SCHIEBEGR. ACHSE
33 BS1727927ASMSCHLAUCHHALTER RECHTS
34 BS1715025SMBUCHSE 0.505IDX0.63
35 BS1701342SMSPRING, COMPRESSION
36 BS1726839SMKNOPF .312-18X
37 BS1666106SMBUSHING
38 BS1727667SMHALTER-ACHSE 12GA YE
39 BS1922127SMCAPSCREW-HEX HD 5/16
40 BS1722460SMPIN-QUICK .080WIRE 1.
41 BS1921319SMABZIEHER-SCHEIBE
42 BS1727669SMSTASNGE-.250DIA 10.13 LG
43 BS1733357SMHANDBREMSHEBEL
44 BS1709314SMFEDER-EXTN 0.6300ODX
45 BS1727814ASMHALTER-DUAL BREMSE 7G
46 BS1729277SMFEDER0.39
47 BS1960694SMNUT-HEX FLANGE 1/4-2
48 BS1925003SMSCREW-HEX WSHR HD TAP
