Murray 1695838 - 33" Dual Stage Snow Thrower (2010) Engine & Frame Group (2989469) Spareparts

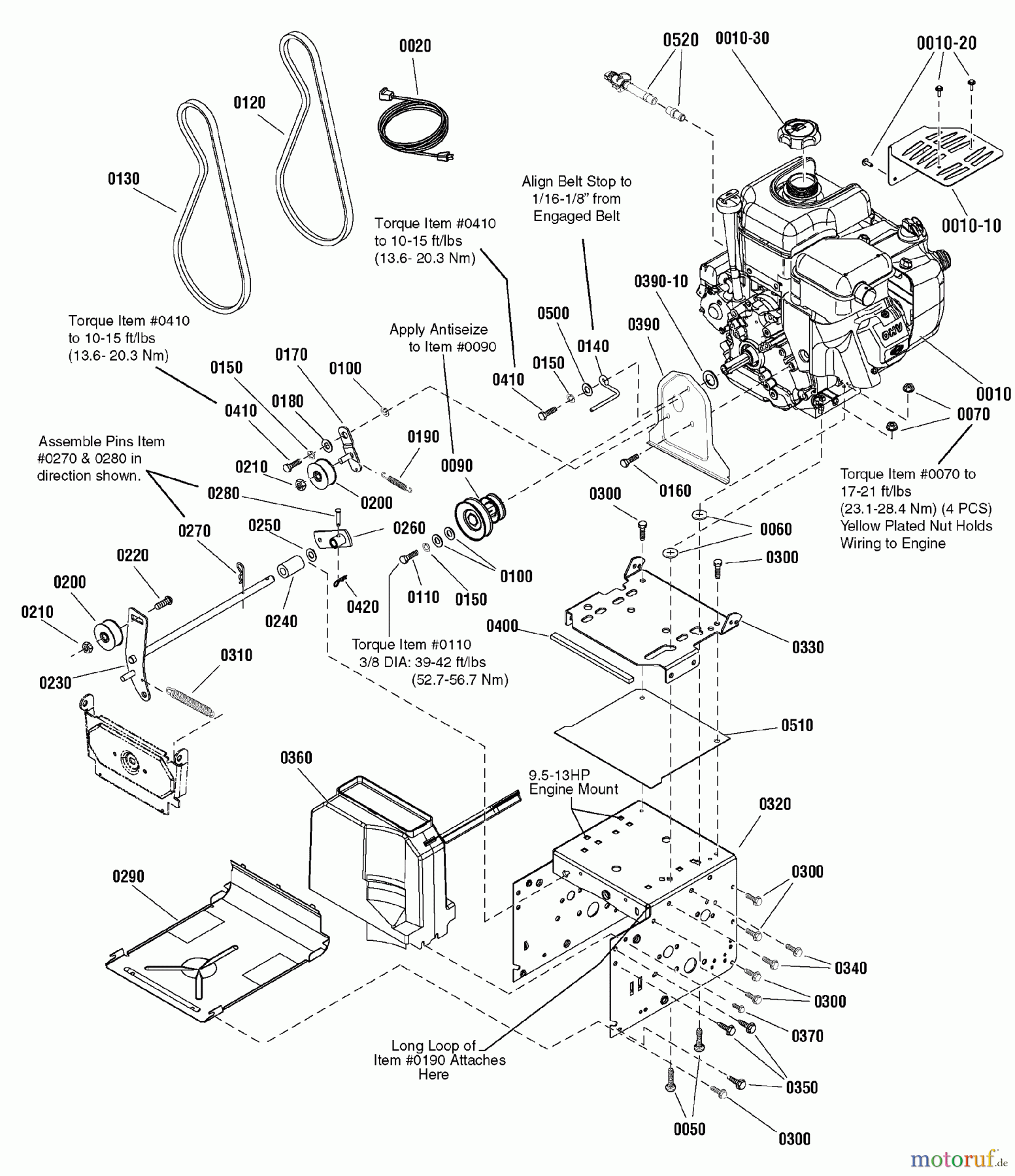

Engine & Frame Group (2989469) 1695838 - Murray 33" Dual Stage Snow Thrower (2010)

Murray Schneefräsen 1695838 - Murray 33
PosArticle NumberDescription
0010 BS21M314-0117-E1
0010-10 BS797095SCHALLDAMPFERSCHUTZ
0010-20 BS699234SCHRAUBE
0010-30 Murray TANKDECKELBS795027TANKDECKEL
0020 Murray LEINE, STARTER MOTORBS6219MALEINE, STARTER MOTOR
0050 BS002X97MABOLT, CARR 5/16
0060 BS028X76MASCHNELLMUTTER
0070 BS1739305YPNUT, ESNA, 5/16-18
0090 BS1501109MAMOTORRIEMENSCHEIBE
0100 BS1919381SMABZIEHER-SCHEIBE
0110 BS1960428SMCAPSCREW
0120 BS1733324SMBELT, DRIVE
0130 BS585416MABELT
0140 BS1739070YPKEILR.SCHUTZ
0150 BS1917356SMLOCKWASHER
0160 BS1921515SMBOLT
0170 BS1501112YZMAIDLER BRKT ASY,DR-BEL
0180 BS1501065MABUSHING,IDLER BRKT
0190 BS53704MASPRING, IDLER TRACTIO
0200 Murray PULLEY, IDLERBS1502120MAPULLEY, IDLER
0210 BS1960251SMMUTTER
0220 BS585781MABOLT-CRG.38-16X1.25
0230 BS1501628YZMALEITRAD ASY,SCHRAUBE ML STR
0240 BS1501200MADISTANZSTUCK/SCHRAUBE KONSOLE
0250 BS1960027SMABZIEHER-SCHEIBE
0260 BS1733451SMARM - CONTROL
0270 BS0031X6MAPIN, HAIR .38D - .0
0280 BS1736381YPGABELSTIFT
0290 BS1740906ASMBODENPLATTE
0300 BS1927429SMSCREW - HEX WASHER HD
0310 Murray ZUG-; SPANNFEDERBS165X159MAZUG-; SPANNFEDER
0320 BS1740641BIYPRAHMENBOX
0330 BS1733583BIYPPLATTE, MOTORMONTAGE
0340 BS1924856SMSCREW - HEX WASHER HD
0350 BS1664847SMSCHRAUBE
0360 BS1733923SMCOVER-BELT W/TOOLBOX
0370 BS26X306MASCREW.25-ABX0.75 HEX
0390 BS1750241YPWASSERSCHUTZ
0390-10 BS1750185YPFORMDICHTUNG
0400 BS1750172YPDICHTLEISTE
0410 BS910828MASCREW, 5/16-24X1.00 H
0420 BS7023590SM
0470 BS1916965SMLOCKWASHER, SPRING
0480 BS1922755SMABZIEHER-SCHEIBE
0500 BS7091528SMFW, .375X.875X.083 YZ
0510 BS1750134YPDICHTUNG
