Murray 1695943 - Canadiana 29" Dual Stage Snow Thrower (2010) Discharge Chute (2988360) Spareparts

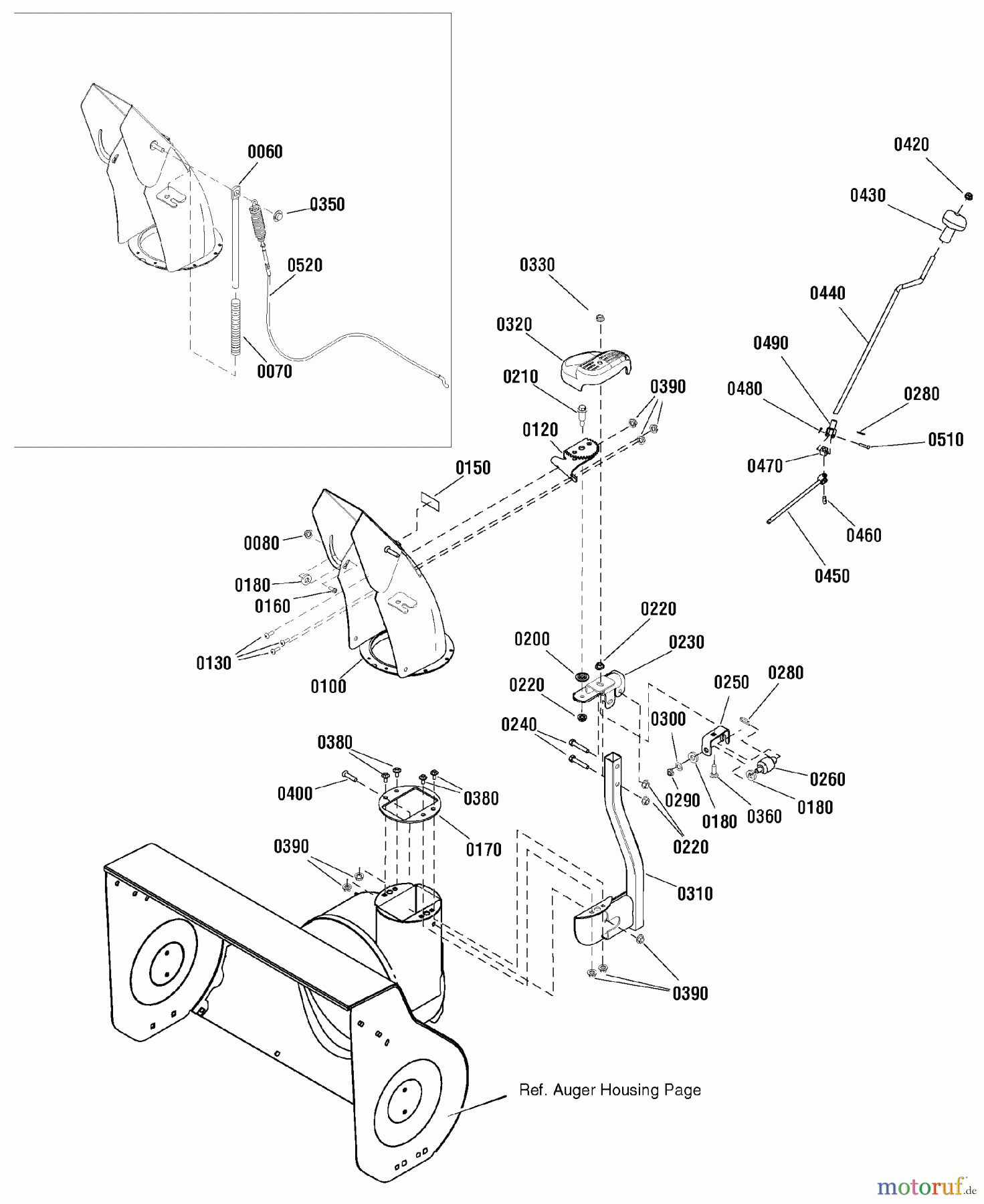

Discharge Chute (2988360) 1695943 - Canadiana 29" Dual Stage Snow Thrower (2010)

Murray Schneefräsen 1695943 - Canadiana 29
PosArticle NumberDescription
0060 BS1734708ASMROD - SPRING
0070 BS1734647SMSPRING - CHUTE
0080 BS1739305YPNUT, ESNA, 5/16-18
0100 BS1735761AYPSCHACHT KOMPL. KURZ
0120 BS1736038YPGEAR/CHUTE SUPPORT
0130 BS1960715SMSCHRAUBE - TRUSS HD
0150 BS1733601SMDECAL
0160 BS1931333SMBOLT
0170 BS1735767YPFUHRUNG
0180 BS2860210SMWASHER, NYLON
0200 BS1733026SMWASHER-0.510ID 1.125O
0210 BS1732412SMBOLT-SHLDR 5/16-18X0.
0220 BS1960684SMNUT-HEX KEPS 5/16-18
0230 BS1734423ASMGEAR SUPPORT
0240 BS1922127SMCAPSCREW-HEX HD 5/16
0250 BS1738020YPGEWINDEAUFNAHME
0260 BS1734439SMGEAR - WORM, CHUTE
0280 BS1501293MAPIN-HAIR, CHUTE GEAR
0290 BS1960762SMNUT, HEX LK JAM
0300 BS1734542SMWASHER - CUPPED
0310 BS1736195AYPSCHACHTAUFLAGE
0320 BS1734442SMCOVER - GEARS
0330 BS1935048SMNUT - SCRAPPER BLADE
0350 BS1932718SMNUT-PUSH FOR .312 DIA
0360 BS1931335SMBOLT-RD HD SH SQ NK 5
0380 BS691005SCHRAUBE 93566
0390 BS5025391SMMUTTER, 1/4-20 SECHSK.
0400 BS02X101MABOLT-CRG.25-20X0.75
0420 BS1960093SMNUT, PUSH
0430 BS1714084SMKNOB, SPINNER
0440 BS1735661YPKURBEL, SCHACHT
0450 BS1735660YPWELD, ROD & YOKE
0460 BS578060MAPIN,UNIV JOINT 3/8X1.
0470 BS578063MABLOCK,KARDANSTIFT PIVOT
0480 BS579493MAPIN, COTTER .06X .50
0490 BS1733611SMYOKE & TUBE ASSY, CHUTE
0510 BS578309MALF GABELKOPFBOLZEN .25DX
0520 BS1750623YPKABEL KOMPL.
