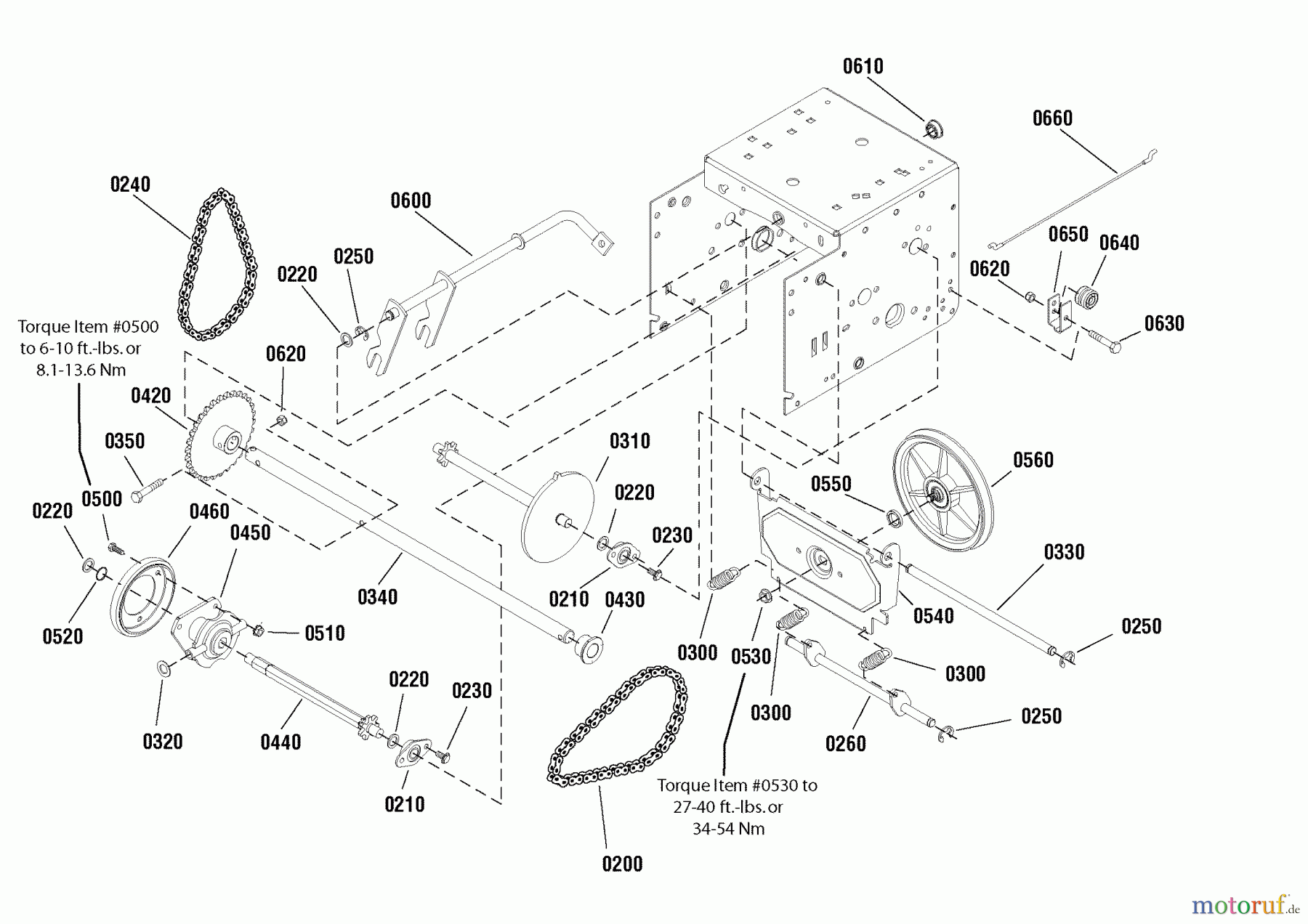

Murray 824LD (1696154-00) - 24" Dual Stage Snowthrower, 8HP (2012) Traction Drive Group (2990003) Spareparts

Traction Drive Group (2990003) 824LD (1696154-00) - Murray 24" Dual Stage Snowthrower, 8HP (2012)

Murray Schneefräsen 824LD (1696154-00) - Murray 24
PosArticle NumberDescription
0200 BS579851MAROLLKETTE 420X19.
0210 BS334163MALAGER & HALTERUNG, A
0220 BS579858MAWASHER.502-0.75-.06 F
0230 BS1924856SMSCREW - HEX WASHER HD
0240 BS579868MAROLLKETTE 420X18.0
0250 BS11X30MARETAINER, RING 7/16 Y
0260 BS1502105YZMAFEDERVERBINDUNG ASY STD
0300 Murray FEDERBS1736469YPFEDER
0310 BS1501090MAZAHNRAD,SET 33>7 STD
0320 BS1960027SMABZIEHER-SCHEIBE
0330 BS1501092YZMAAXLE,SWING PLATE
0340 BS1501562YZMAACHSE,21.34 BUCHSE 12-13
0350 BS01X193MASECHSKANTBOLZEN-HEX.25-20X1.75
0420 BS1501089MASPROCKET,AXLE=WF
0430 BS1501114MABEARING,AXLE
0440 BS1501100MAHEX SHAFT
0450 BS1739282YPLAGERZAPFEN KOMPL.
0460 Murray REIBRAD 4.3 RUBS1501435MAREIBRAD 4.3 RU
0500 BS1921959SMCAPSCREW - HEX HD
0510 BS1928372SMNUT - HEX KEPS
0520 BS1733326SMRING-RET EXT # 63 0.6
0530 BS15X114MABUCHSE,FLANSCHVERSCHLUSS
0540 BS1501057YZMASCHWINGBLECH
0550 BS1501158MASPACER,FRICTION PULLE
0560 BS1501115MAREIBRIEMENSCHEIBE ASY
0600 BS1501110YZMASPEED SELECT ASY
0610 BS579944MABRNG FL .500ID X .88
0620 BS1920397SMNUT - HEX LOCK
0630 BS1922837SMCAPSCREW
0640 BS579860MASPULENKABEL,SCHRAUBE CTR
0650 BS1501059YZMABRKT,CABLE SPOOL
0660 BS1501122MACABLE,FR DRIVE LOWER
