Murray M1227E (1696083) (1150/27) - B&S 27" Dual Stage Snowthrower (2011) (Canadian Tire) Handles and Controls Group (2989298) Spareparts

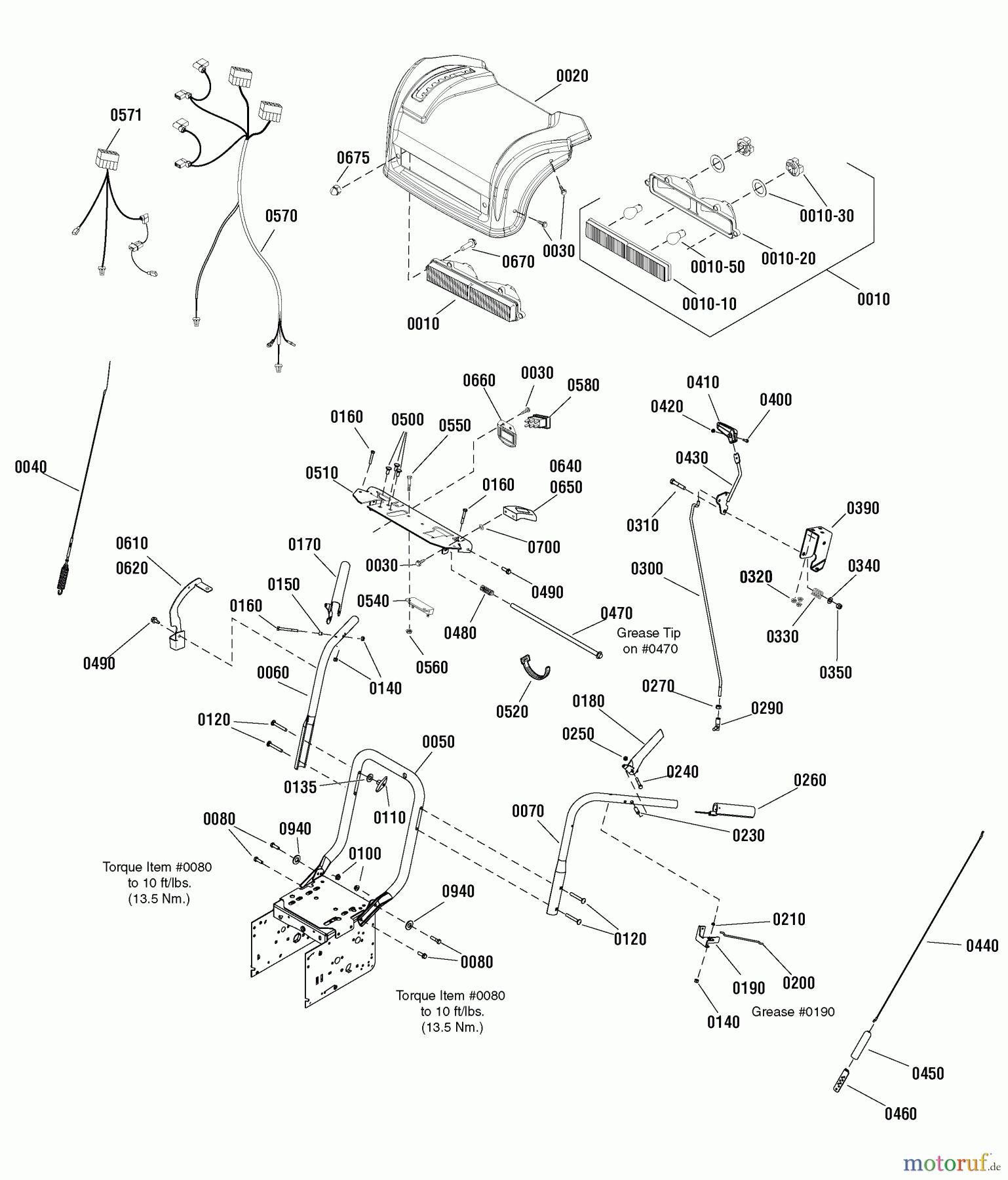

Handles and Controls Group (2989298) M1227E (1696083) (1150/27) - B&S 27" Dual Stage Snowthrower (2011) (Canadian Tire)

Murray Schneefräsen M1227E (1696083) (1150/27) - B&S 27
PosArticle NumberDescription
0010 BS1736176YPSCHEINWERFER KOMPL.
0010-10 BSEingangswelle UE 600
0010-20 BSEingangswelle UE 600
0010-30 BS1736180YPSOCKET, LIGHT, W/GASKET
0010-50 BSEingangswelle UE 600
0020 BS1750676BRYPKONSOLE
0030 BS1960556SMZYLINDERSCHRAUBE HD TORX 1/
0040 BS1737544YPZUG UND FEDER KOMPL.
0050 BS1737274AYPHANDGRIFF, UNTER
0060 BS1734587ASMHANDLE - UPPER RH
0070 BS1734586ASMHANDLE - UPPER LH
0080 BS1931333SMBOLT
0100 BS1960684SMNUT-HEX KEPS 5/16-18
0110 BS7035744YPKNOB, 5/16-18 WING (B
0120 BS1750299YPSCHLO?SCHRAUBE 312-18X2.25
0135 BS7090391SMITLW, 5/16
0140 BS1920397SMNUT - HEX LOCK
0150 BS1678392SMSPACER, HANDLE
0160 BS1921962SMCAPSCREW - HEX HD
0170 BS1739783BNYPKUPPLUNGSHEBEL RECHTS
0180 BS1739782BNYPKUPPLUNGSHEBEL LINKS
0190 BS1733505BMYPHALTER
0200 BS1736360YPGESTANGE
0210 BS1733095SMDISTANZSTUECK
0230 BS1736542YPDISTANZSTUCK, ABGESETZT
0240 BS1750554YPSCHULTERBOLZEN
0250 BS1933896SMNUT - HEX LOCK
0260 BS1738124YPHANDGRIFF, BEHEIZT
0270 BS2820263SMNUT - HEX
0290 BS1739290YPKUGELGELENK
0300 BS1734354SMROD - SPEED CONTROL
0310 BS1923701SMCAPSCREW - HEX HD
0320 BS1931277SMMUTTER - HEX
0330 BS50786MAFEDER,.509 DIA X0.75
0340 BS1918266SMABZIEHER-SCHEIBE
0350 BS1919439SMNUT - HEX LOCK
0390 BS1737684YPHALTER, BEDIENTEIL
0400 BS1960589SMSCREW-RD HD PHILLIPS
0410 BS1733192SMKNOB-SLOT SPEED BLACK
0420 BS1933896SMNUT - HEX LOCK
0430 BS1736836YPDREHZAHLREG.HEBEL KOMPL.
0440 BS1502113MABLECHLEISTE
0450 BS308146MABOOT, CLUTCH SPRING
0460 BS313441MABRACKET, CABLE ADJ BL
0470 BS1733509SMROD & SPRING ASSY
0480 BS2108360SMSPRING
0490 BS1927429SMSCREW - HEX WASHER HD
0500 BS1931333SMBOLT
0510 BS1739500BZYPAUFNAHME, ARMATURENBRETT
0520 BS1701011SMTIE, SELF LOCKING .18
0540 BS1724037SMRESISTOR BLOCK
0550 BS1931317SMBOLT - RD HD
0560 BS1960685SMNUT - HEX KEPS
0570 BS1750773YPLEITUNGSSATZ, PW LEITBLECH
0571 BS1750774YPKABELSATZ, GRIFF BEHEIZB.
0580 BS1739784YPSCHALTER, HHG
0610 BS1739663AYPHALTERUNG, RECHTS
0620 BS1739664AYPHALTERUNG, LINKS
0640 BS1739483AYPABLAGESCHALE RE.
0650 BS1739484AYPSCHALE LINKS
0660 BS1739861BZYPBRKT, P13 HHG SWITCH
0670 BS1933737SMSECHSK. SCHRAUBE HD SLO
0675 BS1751461YPHUTMUTTER
0700 BS1921319SMABZIEHER-SCHEIBE
0940 BS71071MAWASHER, FLAT .349X.69
