Snapper 7060947 - Bag N-Wagon, 30 Bushel ELT140H33ABV (80562) 33" 14 HP Hydro Drive Euro Tractor Series A Transmission Group Spareparts

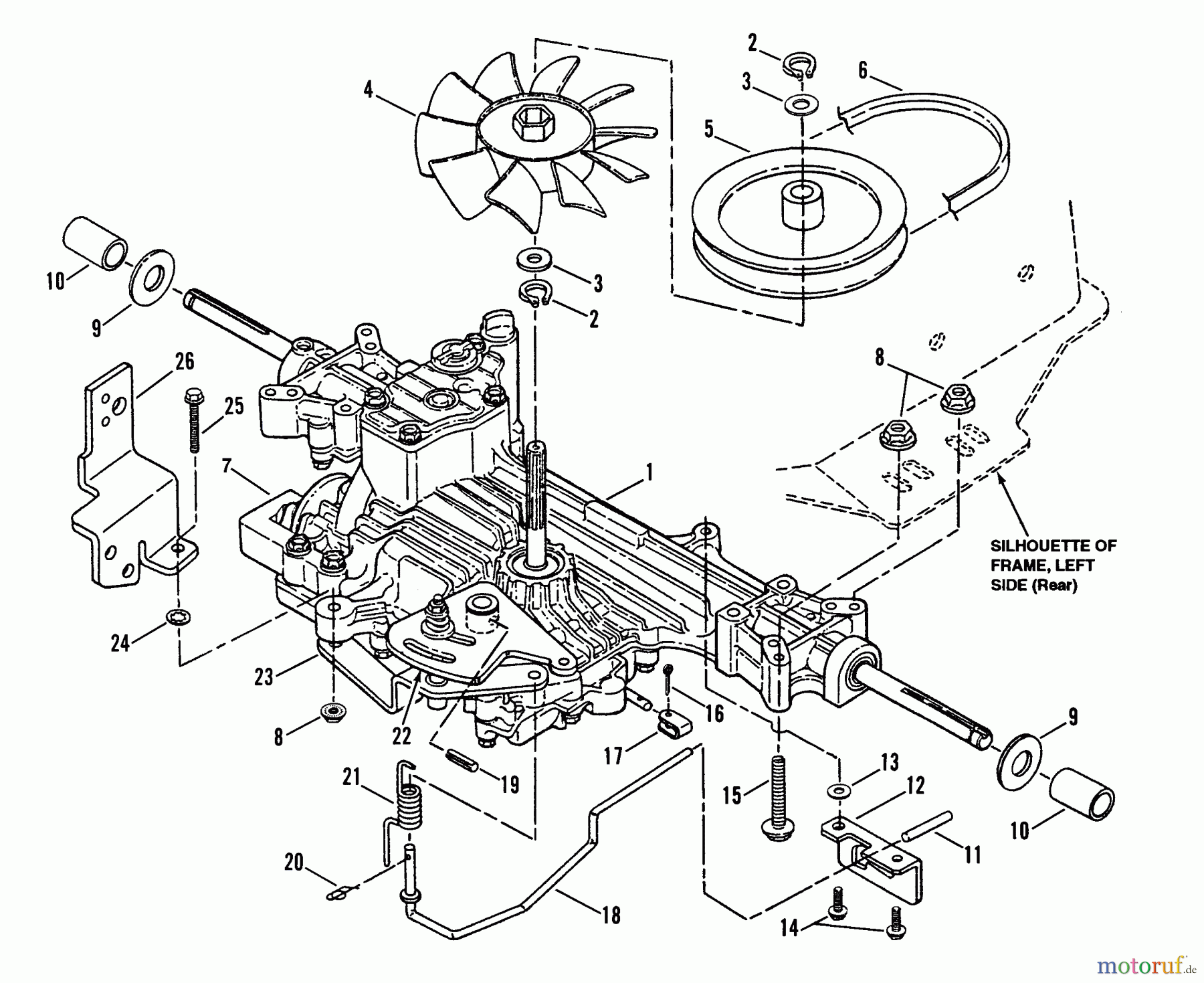

Transmission Group ELT140H33ABV (80562) 33" 14 HP Hydro Drive Euro Tractor Series A

Snapper Zubehör. Rasenmäher 7060947 - Snapper Bag N-Wagon, 30 Bushel ELT140H33ABV (80562) 33
PosArticle NumberDescription
1 BS7028668YPTRANSAXLE, HYDRO
2 BS7028078YPRETAINING RING, EXT.
3 BS7028084YPWASHER, FAN / HUB
4 BS7028076YPFAN, 10" BLADE
5 BS7028077YPPULLEY, 4L/5L-4.50
6 BS7028334SMBELT
7 BS7091489YPLEVER, BRAKE
8 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
9 BS7033701YPFW, .781X1.5X.132 ZP
10 BS7028049YPSPACER, 1.00 OD X.778
11 BS7034137YPGRIP, ROLL RELEASE
12 BS7034139YPDETENT, ROLL RELEASE,
13 BS7032070YPFW, .406X.75X.132 BZ
14 BS7090967YP(C) HWST, 3/8C X1-1/4
15 BS7090702YPHFLB, 5/16C X2-1/4 BZ
16 BS7091516SMSPLINT, 5/32X1 YZ
17 BS7034154YPLINK, ROLL RELEASE, C
18 BS7034140YPROD, ROLL RELEASE
19 BS7034146YPPIN, SPRING
20 BS7034162YPCOTTER PIN, 5/16
21 BS7034155YPSPRING, TORSION, ROLL
22 BS7053386YPSPEED CONTROL / FRICT
22 BS7041612YPWELD, SPEED CONTROL A
22 BS7028036YPSPRING
22 BS7034192YPSTUD, FRICTION, CLEAR
22 BS703333MUTTER, 3/8-16
22 BS7091047YP(C) FW, .406X1.5X.12
22 BS7034267YPWASHER, FRICTION PAD
23 BS7053380YPFRICTION STUD SUPPORT
23 BS7012306SMBUSHING, FLANGE
23 BS7034178YPSUPPORT, FRICTION STU
24 BS703297RETAINER, GR5, 5/16
25 BS7091592YPBOLZEN, 5/16-18 X 2
26 BS7034127YPBRKT, TORQUE / SPOOL,
