Snapper 7060947 - Bag N-Wagon, 30 Bushel G3312X6S (81799) 33" 12 HP Rear Engine Rider European Series 6 Blade Stop Pedals Spareparts

Blade Stop Pedals G3312X6S (81799) 33" 12 HP Rear Engine Rider European Series 6

Snapper Zubehör. Rasenmäher 7060947 - Snapper Bag N-Wagon, 30 Bushel G3312X6S (81799) 33

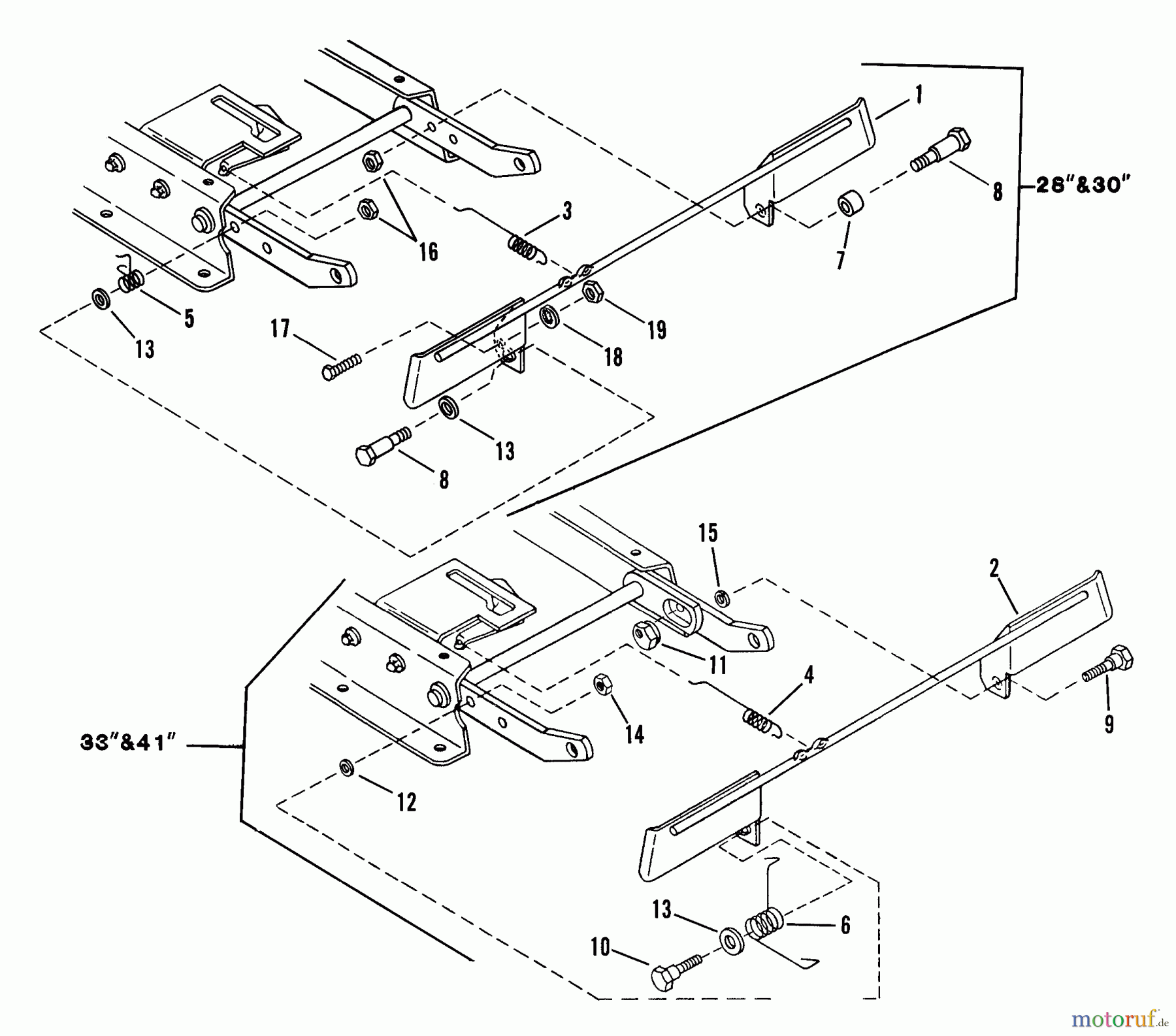

PosArticle NumberDescription
1 BS7047788YP(S) WELD, FOOT PEDAL
2 BS7047886YPWELD, FOOT PEDAL
3 BS7014320YPSPERRFEDER
4 BS7014389YPFEDER
5 BS7014166YPPEDALFEDER
6 BS7015448YPFEDER, PEDAL
7 BS7014394YPSPACER,.68 OD X .504
8 BS7014158
9 BS7015495YPBOLZEN
10 BS7015446YPBUNDSCHRAUBE
11 BS7015447YPEXCENTER, EINSTELLUNG
12 BS703878WASHER, FLAT
13 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
14 BS703458MUTTER, 3/8-24
15 BS703930WASHER, INT LCK, 3/8
16 BS703895NUT, HEX, 3/8-24
17 BS7090535YPHHCS, 1/4F X1 GR5
18 BS703462U.-SCHEIBE, 1/4
19 BS7090095YPNUT, HEX, 1/4
-- BS7060571
