Snapper 7060947 - Bag N-Wagon, 30 Bushel GT180H415K (80383) 41" 18 HP Hydro Drive GT Tractor Series 5 Implement Lift Parts Spareparts

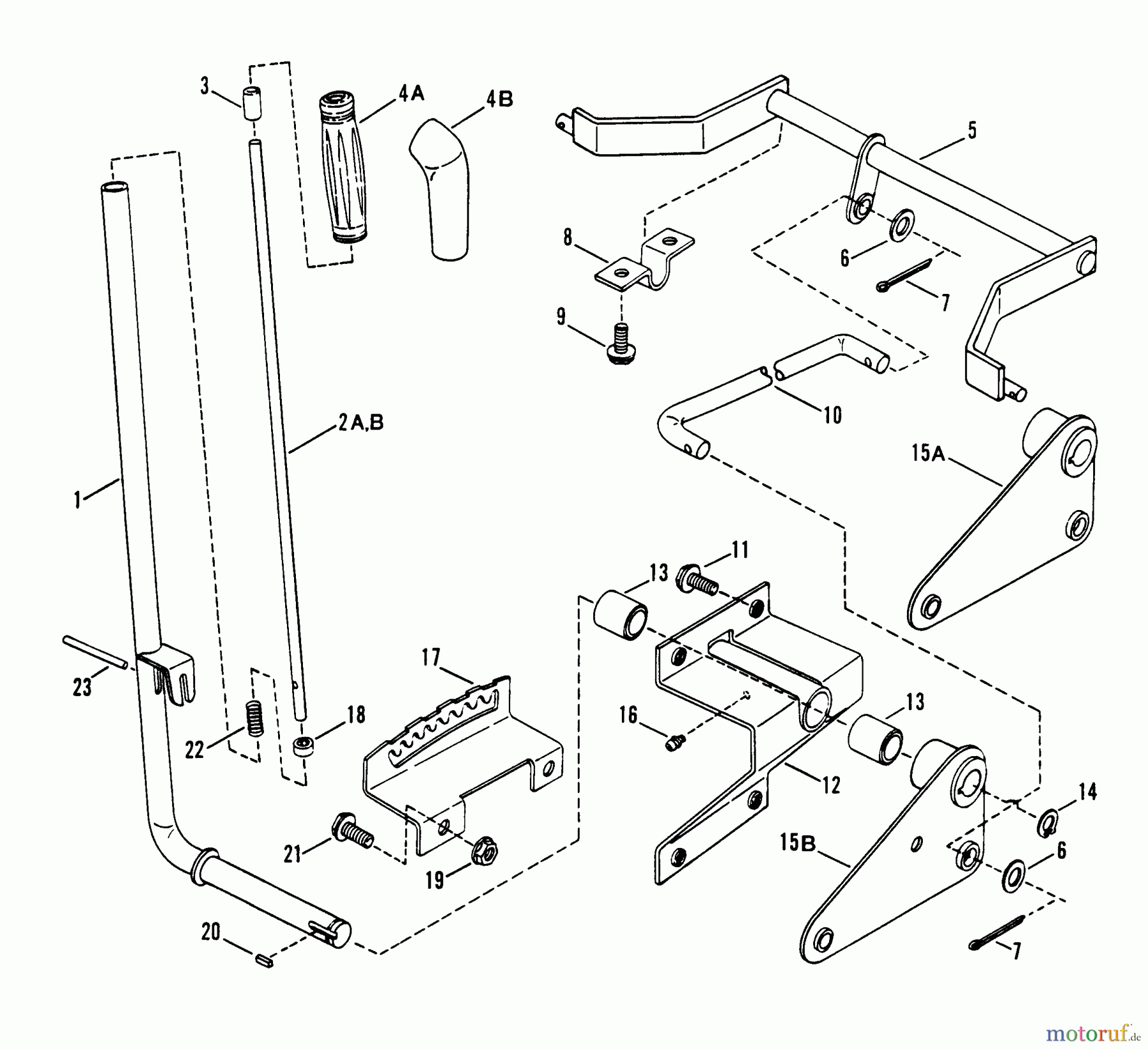

Implement Lift Parts GT180H415K (80383) 41" 18 HP Hydro Drive GT Tractor Series 5

Snapper Zubehör. Rasenmäher 7060947 - Snapper Bag N-Wagon, 30 Bushel GT180H415K (80383) 41
PosArticle NumberDescription
1 BS7047868YPWELD, LIFT HANDLE
2A BS7032435YPROD, LIFT LEVER
2B BS7033641YPROD, LIFT LEVER
3 BS7014361YPCAP
4A BS7013948
4B BS7019363YPKNOB, LIFT HANDLE 1-1
5 BS7049773
6 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
7 BS7091598SMCOTTER PIN, 1/8X3/4 Y
8 BS7032239YPBRKT, HANGER
9 BS7090815YPSCHRAUBE, 3/8-16 X 3/4
10 BS7032266YPROD, LIFT, LT
11 BS703949SCHRAUBE, 5/16-18.625
12 BS7051523YPLIFT PIVOT ASSY
13 BS7018289YP(C) BEARING, SLEEVE,
14 BS7015020YPRETAINING RING, EXT,
15A BS7047874YPWELD, LEVER ARM
15B BS7047966YPWELD, ARM LIFT LEVER
16 BS7013864SMLUBE FITTING, 3/16 PR
17 BS7038063YPQUADRANT, LIFT
18 BS7015019YPPLUG, NYLON
19 BS703333MUTTER, 3/8-16
20 BS5050407X8SM
21 BS7091588SMBUNDSCHRAUBE, 3/8C X3/4 GR5 Y
22 BS7014432YPSPRING
23 BS7090881YPGROOVE PIN, 3/16X2
