Snapper ZM6102M - 61" Deck, Mid Mount Z-Rider, Series 2 Chute, Deck Covers & Baffle Spareparts

Chute, Deck Covers & Baffle ZM6102M - Snapper 61" Deck, Mid Mount Z-Rider, Series 2

Snapper Mähdecks ZM6102M - Snapper 61

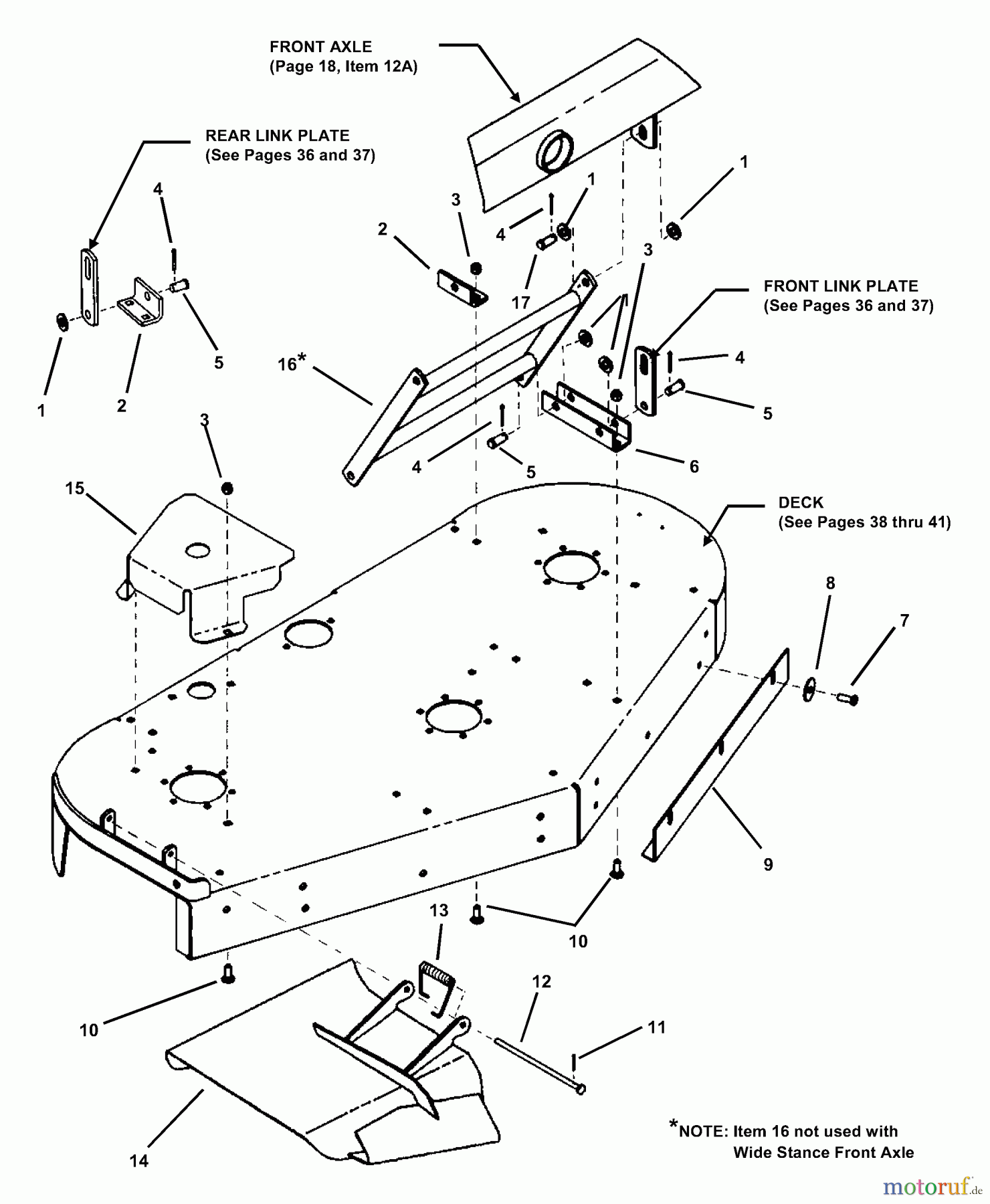

PosArticle NumberDescription
1 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
2 BS7043824YP(C) BRKT, DECK LIFT,
3 BS703117MUTTER
4 BS7091516SMSPLINT, 5/32X1 YZ
5 BS7091948YPCLEVIS PIN, 1/2X.725
6 BS7044670YP(C) BRKT, MOUNTING, D
7 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
8 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
9 BS7042914YP(C) BAFFLE, FRONT
9 BS7036445YP(C) BAFFLE, FRONT
10 BS703814BOLT, RD HD, 3/8-16X1
11 BS7091313YPSPLINT
12 BS7029277YPPIN, HINGE, CHUTE
13 BS7027950YPSPRING, CHUTE
14 BS7044806YPWELD, DISCHARGE CHUTE
14 BS7058291YPCHUTE, DISCHARGE
15 BS7044756YP(C) COVER, SPINDLE
16 BS7045339YP(C) WELD, PULLBAR
17 BS7012802SM
