Snapper ZU6003M - 60" Deck, Mid Mount ZU-Rider, Series 3 60" Deck Assembly Parts, ZU2013K Spareparts

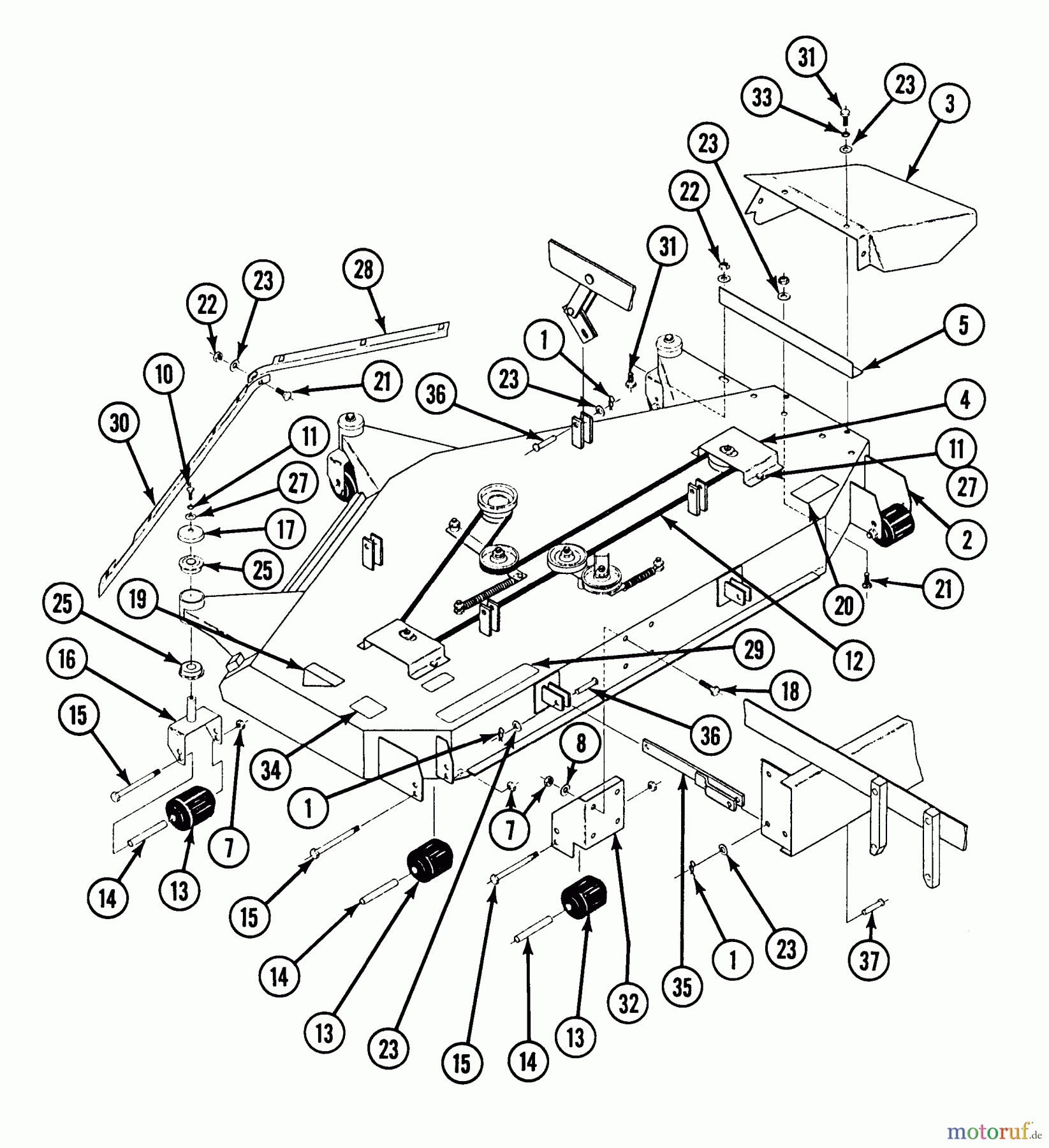

60" Deck Assembly Parts, ZU2013K ZU6003M - Snapper 60" Deck, Mid Mount ZU-Rider, Series 3

Snapper Mähdecks ZU6003M - Snapper 60
PosArticle NumberDescription
BS7080193
1 BS7091593SMSICHERUNGSSPLINT SELBSTS.
2 BS7062209
3 BS7062220YP(C) DECK CHUTE ASSY,
4 BS7062217YP(C) COVER, PULLEY, 60
5 BS7062218
?6 BS703458MUTTER, 3/8-24
7 BS703117MUTTER
8 BS7090517SMFW, .438X1X.084 YZ
?9 BS7090824YPSCREW, 3/8-24 X 1-1/4
10 BS703925CAPSCREW, 1/4-20X.75
11 BS7090052SMSLW, .256X.487X.062 Z
12 BS7079186YP(C) V-BELT, A-112
13 BS7079868YP(C) ROLLER, 3-3/4 D.X
14 BS7079882YP(C) BUSHING
15 BS7091617YPHHCS, 3/8C X6 GR5 YZ
16 BS7079883
17 BS7079352
18 BS7090603YPHHCS, 3/8C X7/8 GR5 Z
19 BS7079234
20 BS7079242
21 BS7090316SMRHSNB, 5/16C X3/4 GR5
22 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
23 BS703350U-SCHEIBE, 5/16
?24 BS7079240YP(C) DECAL, WARNING
25 BS7079331
?26 BS7079217YPSPRING, EXT
27 BS7091294
28 BS7062221YP(C) BAFFLE, LIP, 60"U
29 BS7062202YP(C) DECAL, 60" UNISTA
30 BS7062222YP(C) BAFFLE, LIP, 60"
31 BS7076934YP(C) HHCS, 5/16C X3/4
32 BS7062219
33 BS7079267YP(C) LOCKWASHER, 5/16
34 BS7062199YP(C) DECAL, GREASE SPI
35 BS7062107YP(C) DRAG BAR WELD.
36 BS7013996SM
37 BS7062185
BS7062065YP(C) BELT, BP-87 V-BEL
