Snapper GT2354 (1694370) - 54" Garden Tractor, 23 HP, Hydro Drive 54" Mower Deck - Belt, Idler Arm & Hitch Group Spareparts

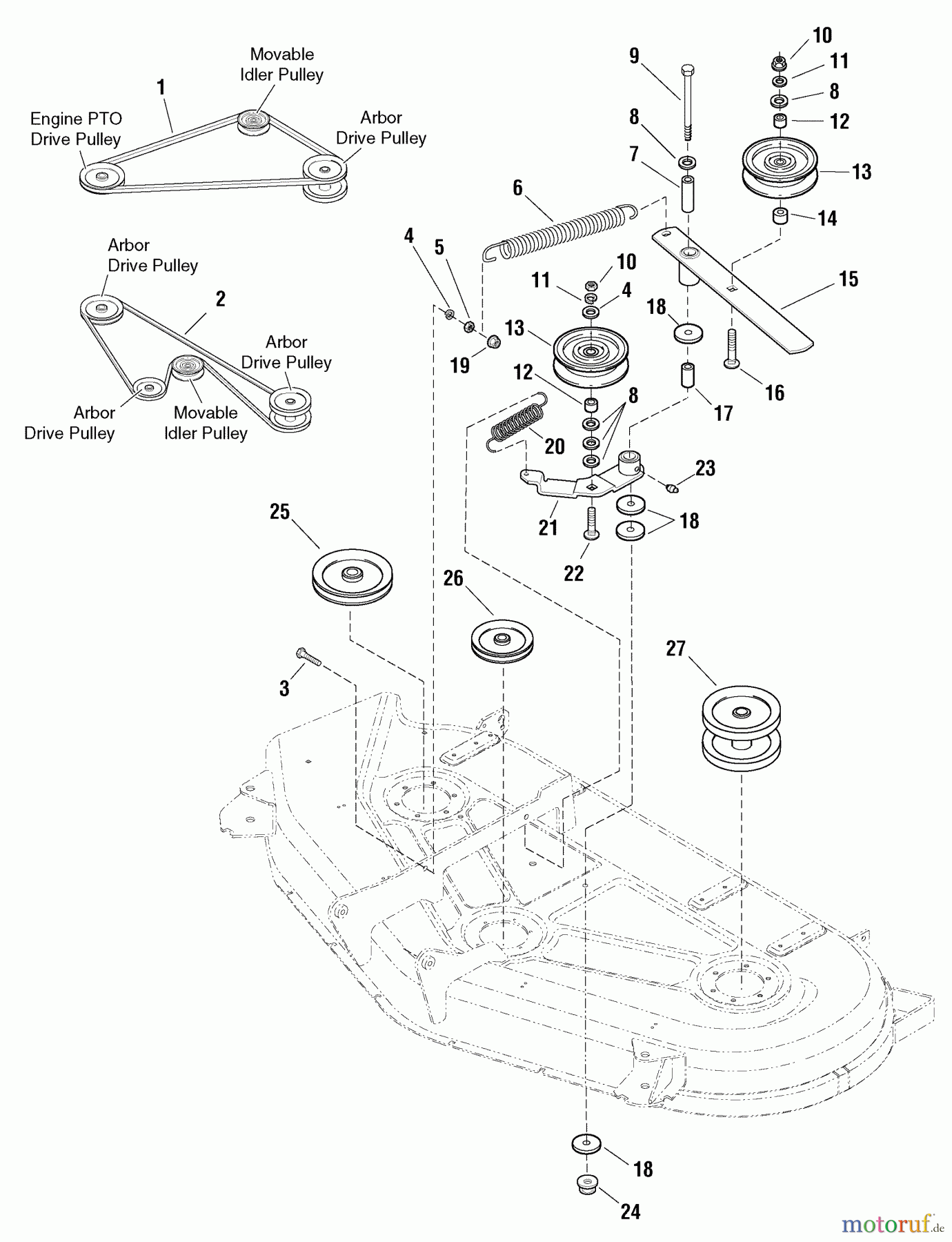

54" Mower Deck - Belt, Idler Arm & Hitch Group GT2354 (1694370) - Snapper 54" Garden Tractor, 23 HP, Hydro Drive

Snapper Rasen- und Gartentraktoren GT2354 (1694370) - Snapper 54
PosArticle NumberDescription
1 BS1722039SMKEILRIEMEN HA 71.6
2 BS1671076SMKEILRIEMEN
3 BS1921977SMCAPSCREW - HEX HD
4 BS703116LCKWSHR
5 BS7091511SMMUTTER, 5/16C GR5 YZ
6 BS1715435SMFEDER , VERLANGERUNG 1
7 BS1657242SMDISTANSRING
8 BS703878WASHER, FLAT
9 BS1960246SMSECHSK.SCHRAUBE HD 3/8-
10 BS703577NUT, HEX, 1/2-13
11 BS1916965
12 BS1716553SMBUCHSE 0.377IDX0.75 ODXO
13 BS1685150SMRIEMENSCHEIBEN KIT
14 BS2157081SMDISTANZRING,3/8X3/4X1/2
15 BS1720379SMLEVER ASMY-IDLER W/BS
16 BS1960315SMBOLZEN-RD HD SH SQ NK 3
17 BS1674669SMDISTANZHULSE 0.39 IDXD 6250
18 BS703591WASHER, .406X1.5X.12
19 BS703164MUTTER
20 BS1656936SMFEDER-EXTENSION
21 BS1718561SMUMLENKHEBEL W/BU
22 BS1931352SMBOLZEN 3 / 8
23 BS2812808SMFITTING-LUBE .250-28T
24 BS703893NUT, CNTR LCK, 3/8-16
25 BS1720182ASMPULLEY & HUB ASM-BLAC
26 BS1679161SMPULLEY & HUB ASM-PLAI
27 BS1720183ASMHUB & PULLEYS AS-BLAC
