Snapper LT120D331B - 33" Lawn Tractor, 12 HP, Disc Drive, Series 1 Blade Engagement Spareparts

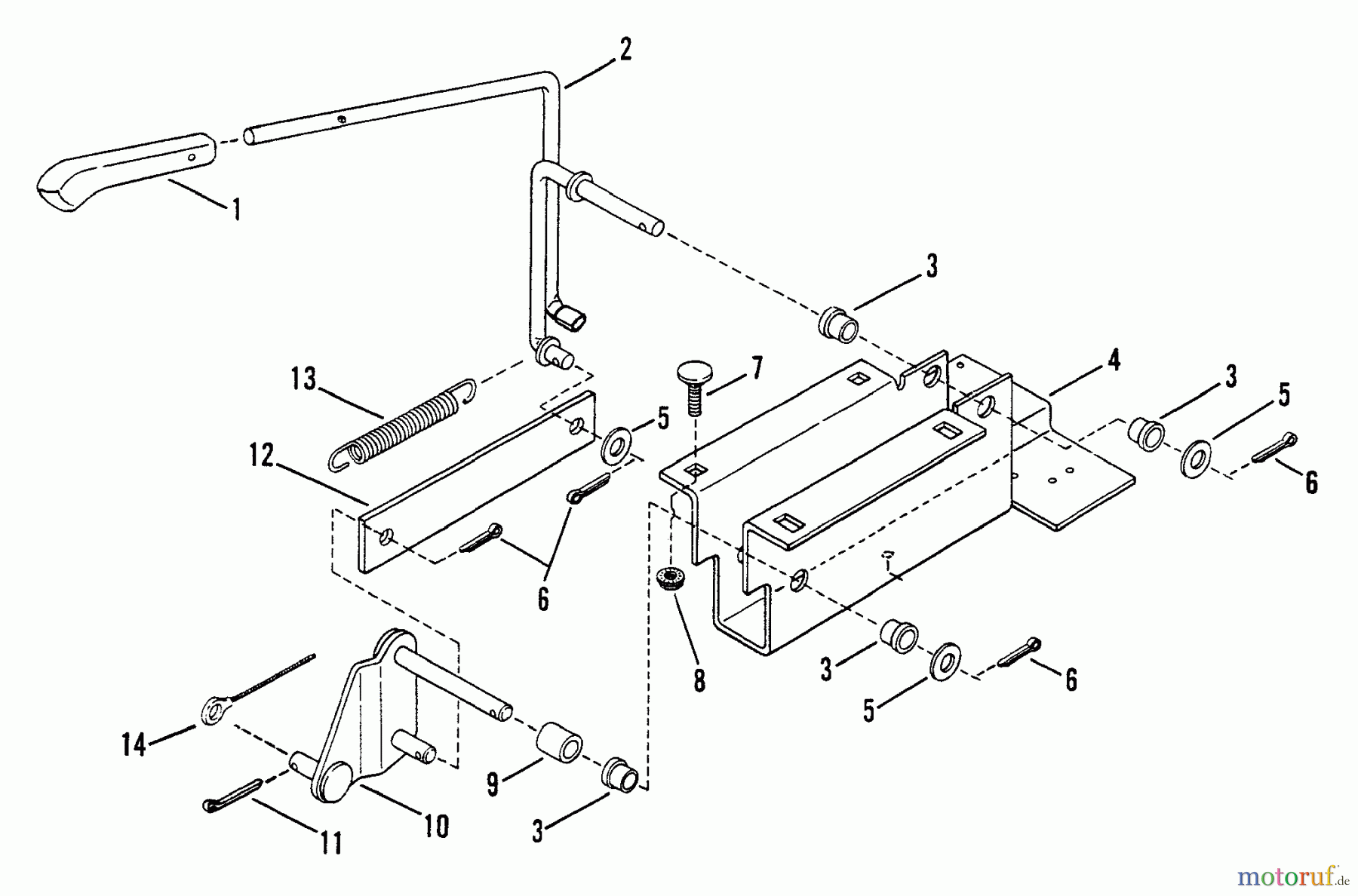

Blade Engagement LT120D331B - Snapper 33" Lawn Tractor, 12 HP, Disc Drive, Series 1

Snapper Rasen- und Gartentraktoren LT120D331B - Snapper 33
PosArticle NumberDescription
1 BS7016356YPKNOB, DECK ENGAGE HAN
2 BSEingangswelle UE 600
3 BS7013321YPBUCHSE, VERB.STANGE
4 BS7033364YP
5 BS703878WASHER, FLAT
6 BS703312PIN, COTTER, 3/32X.75
7 BS7090803YPBOLT, 1/4-20X5/8
8 BS703233MUTTER, 1/4-20, GR5
9 BS7023206YPDISTANZHULSE
10 BS7040570YPSPOT PIVOT ARM
11 BS7091313YPSPLINT
12 BS7032712YPLINK
13 BS7023165YPSPRING, RETURN
14 BS7035434YPCABLE, PTO, 3PC FRM
14 BS7026194YPCABLE, BLADE, 38 LTD
