Snapper LT120D331B - 33" Lawn Tractor, 12 HP, Disc Drive, Series 1 Dash Panel, Fuel Tank, Battery (Part 1) Spareparts

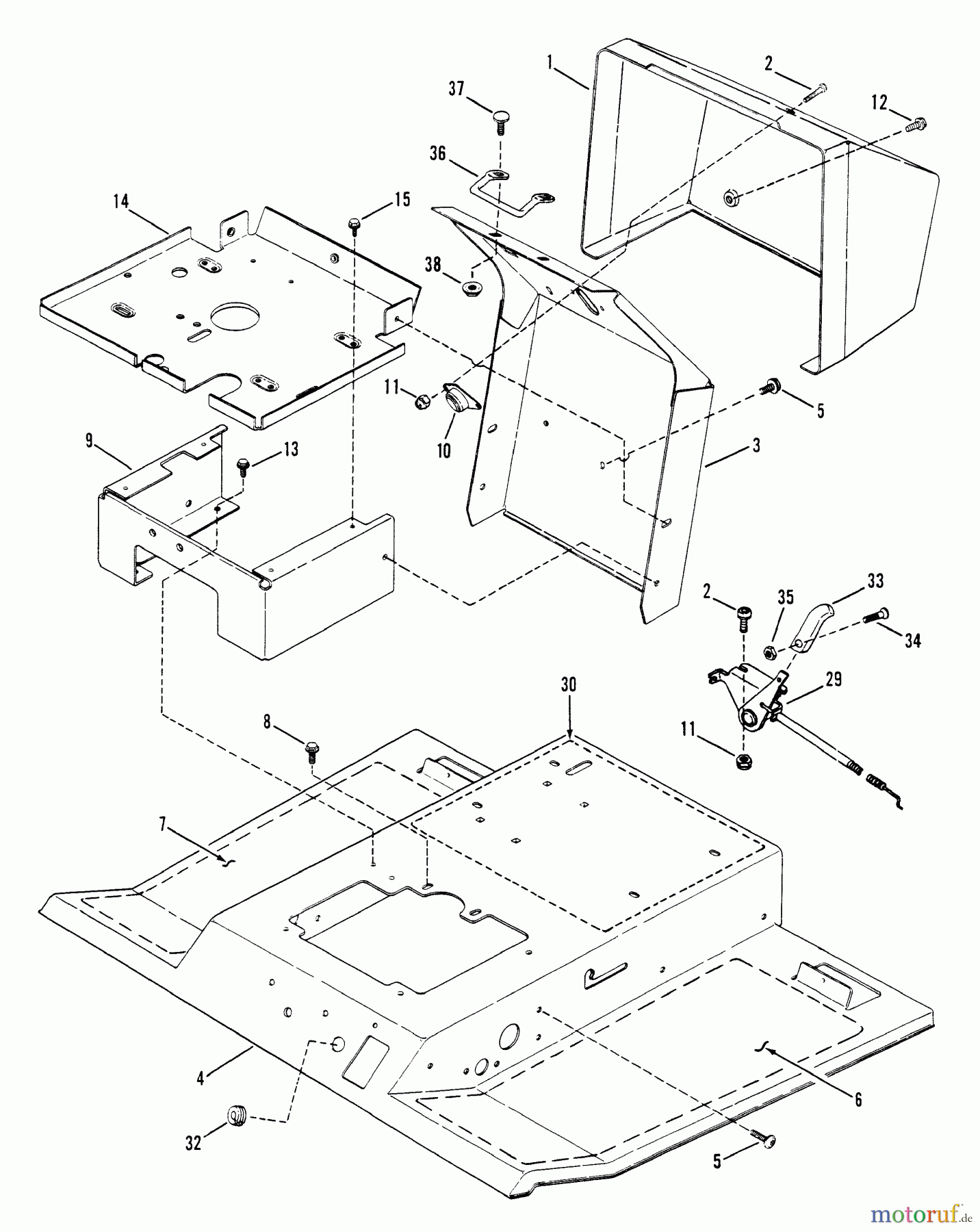

Dash Panel, Fuel Tank, Battery (Part 1) LT120D331B - Snapper 33" Lawn Tractor, 12 HP, Disc Drive, Series 1

Snapper Rasen- und Gartentraktoren LT120D331B - Snapper 33
PosArticle NumberDescription
1 BS7052997YPASM, PANEL/DASH-BLACK
2 BS7090996YPSCREW, FILLISTER HEAD
3 BS7040734
4 BS7051915YPCHANNEL, FOOT REST
5 BS7091000SMPHST, TORX
6 BS7019047
7 BS7019046YPFOOTPAD, RH
8 BS703949SCHRAUBE, 5/16-18.625
9 BS7033073YPMOUNT, TANK / BATTERY
10 BS7026196SMLAGERFLANSCH, .75
11 BS7076978SMHLN, 1/4C BZ
12 BS7090896YPHWST, 1/4C X1-3/8 ZP
13 BS7090858YPMUTTER, 5/16-18X1/2 SELBSTS.
14 BS7033078YPPLATE, TANK / BATTERY
15 BS7091122
29 BS7022277YPTHROTTLE CONTROL
30 BS7017026YPDECAL, INSTRUCTION
32 BS7014856
33 BS7023655YPLEVER, THROTTLE CONT
34 BS7091017YPSCREW, FIL.HEAD
35 BS7091018YPHN, #8C GR2B YZ
36 BS7017345
37 BS7090803YPBOLT, 1/4-20X5/8
38 BS703233MUTTER, 1/4-20, GR5
