Snapper LT2044 (2690761) - 44" Lawn Tractor, 20 HP, Hydro Drive, ACS, LT300 Series Lift Group - Manual Lift Spareparts

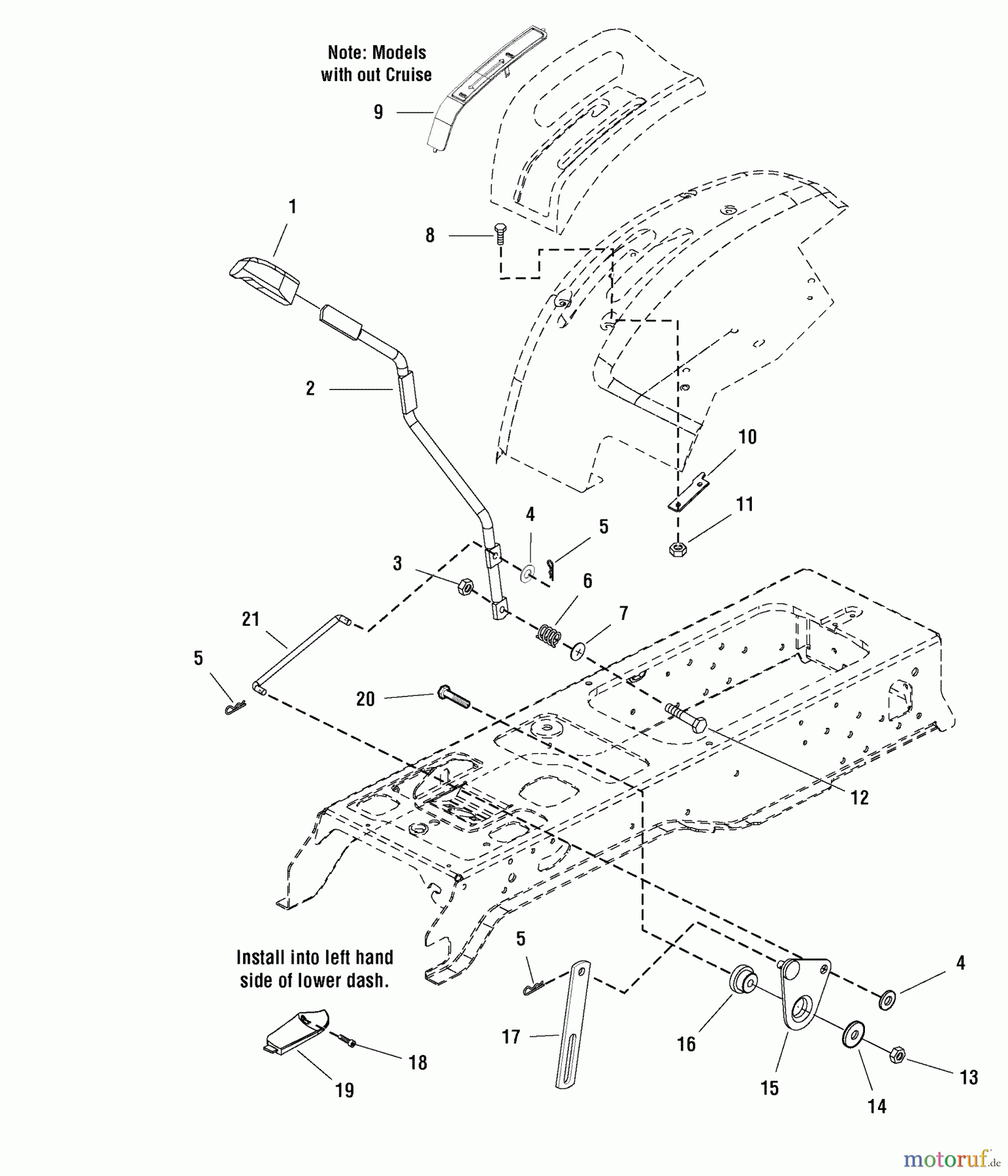

Lift Group - Manual Lift LT2044 (2690761) - Snapper 44" Lawn Tractor, 20 HP, Hydro Drive, ACS, LT300 Series

Snapper Rasen- und Gartentraktoren LT2044 (2690761) - Snapper 44
PosArticle NumberDescription
1 BS1722302SMGRIFF
2 BS1722024ASMROD-LIFT LEVER .625DI
3 BS703893NUT, CNTR LCK, 3/8-16
4 BS703878WASHER, FLAT
5 BS1722460SMPIN-QUICK .080WIRE 1.
6 BS2162085SMSPRING,COMPRESSION
7 BS1723866SMNUT-PUSH FOR .375 DIA
8 BS703925CAPSCREW, 1/4-20X.75
9 BS1722313SMCOVER,WITH OUT CRUISE
10 BS1722284ASMQUADRANT-BLACK
11 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
12 BS703589CAPSCREW, 3/8-16X2
13 BS1919438SM
14 BS1960044SMSCHEIBE-0.312(0.33IDX
15 BS1722491SMCAM & WELD PIN ASMY-
16 BS1704629
17 BS1727083ASMLINK-LIFT,UPPER 1.00
18 BS1722607SMSCHRAUBE TORX #8
19 BS1722285SMVERKLEIDUNG SCHWARZ ABS
20 BS1921977SMCAPSCREW - HEX HD
21 BS1721789SMROD-.375DIA 9.51 LG
