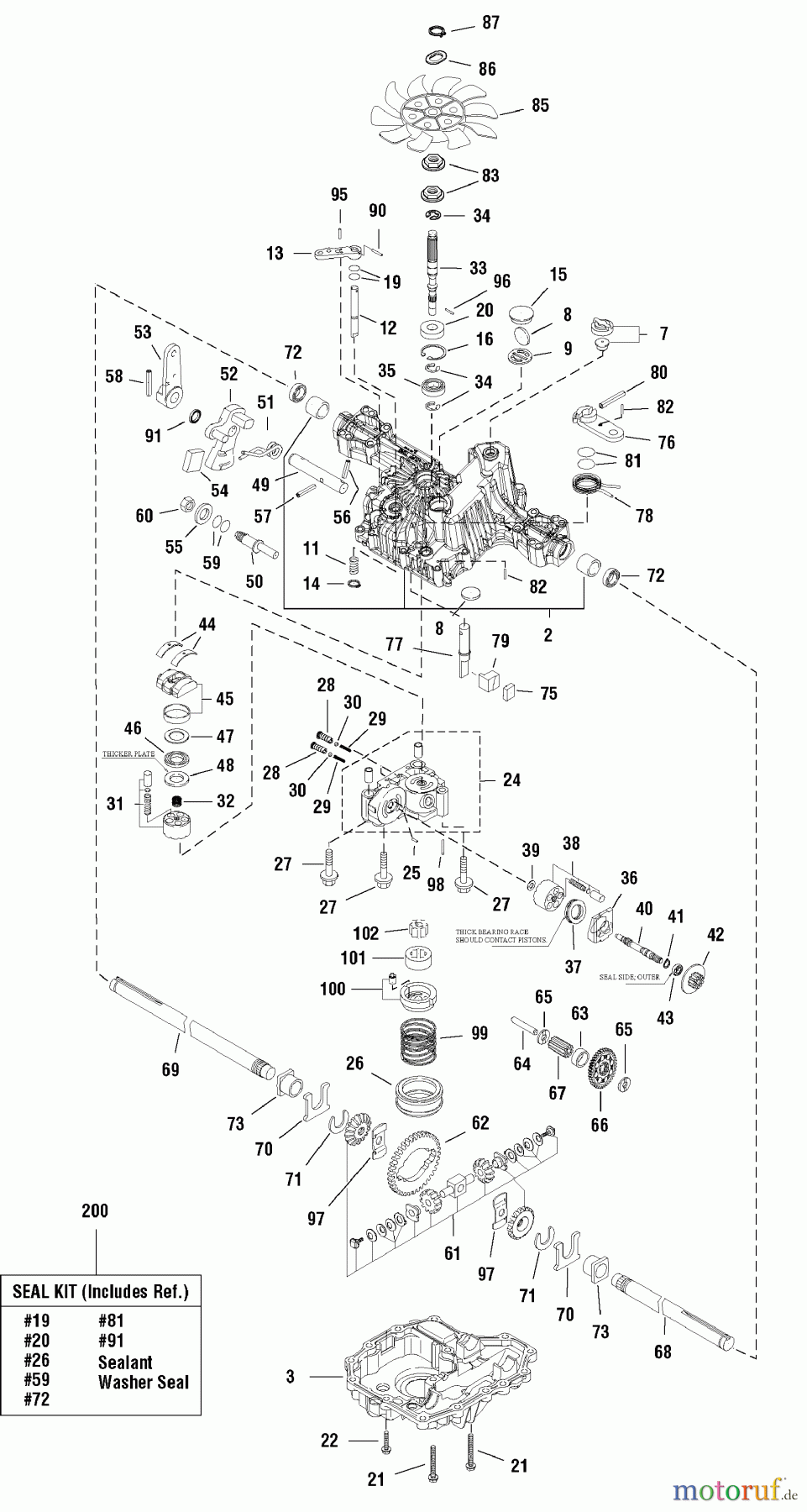

Transmission SERVICE PARTS - Tuff Torq K-57A LT2044 (2690761) - Snapper 44" Lawn Tractor, 20 HP, Hydro Drive, ACS, LT300 Series

Pos		Article Number	Description
2		BS1724951SM
3		BS1724938SM	HOUSING-LOWER 1A646
7		BS1718052SM	ENTLUFTERVENTIL 15 19485
8		BS1724279SM	MAGNET-K50 192163
9		BS1724280SM
11		BS1708684SM
12		BS1724281SM	WELLE-BYPASS 1A64
13		BS1720418SM	UMLENKHEBEL
14		BS1718061SM	RING 192168-29570
15		BS1724282SM	VERSCHLUSSKAPPE 1C655
16		BS1708650SM	RING 35 22252-00035
19		BS1708691SM
20		BS1724283SM
21		BS1707789SM	SCREW-TAPPING 26476
22		BS1724284SM
24		BS1724939SM	CASE-CENTER 1A64
25		BS1718070SM	PIN 3 X 9.8 1921
26		BS1724954SM	FILTER 1A6460-882
27		BS1720805SM	BOLZEN 10X75 26106
28		BS1724286SM
29		BS1724287SM	FEDER-IDS A16460
30		BS1724288SM
31		BS1724940SM
32		BS1724290SM	FEDER-PUMP 1A646
33		BS1724941SM	SHAFT-PUMP 1A6460-
34		BS1718076SM	SICHERUNGSRING E15 K56
35		BS1708673SM	BEARING 24101-060
36		BS1718077SM	GEHAUSE 192168-24
37		BS1724942SM
38		BS1724289SM
39		BS1718084SM	WASHER, 12X24X1 19
40		BS1724943SM	WELLE-MOTOR 1A6460-
41		BS1708672SM	RING 15 192154-253
42		BS1724944SM	ZAHNRAD 1A6460-8
43		BS1718083SM
44		BS1718089SM	THRUST METAL 19216
45		BS1720426SM
46		BS1718088SM	THRUST PLATE 19216
47		BS1718086SM	BEARING K81105 19
48		BS1718087SM	THRUST PLATE 1921
49		BS1724343SM
50		BS1724344SM
51		BS1724345SM	SPRING-TORSION 1A
52		BS1724346SM	ARM-CONTROL 1A646
53		BS1724347SM	ARM-CONTROL 1A6460-29
54		BS1724348SM	PLATE-JERK
55		BS1708689SM	WASHER 22137-12000
56		BS1724349SM	SPLINT 1A6460
57		BS1724296SM	DRUCKFEDER 223510
59		BS1707879SM	VERPACKUNG 24311-00014
58		BS1718100SM	PIN 6.0A X 4.0 K
60		BS1708692SM	NUT 12 26776-120002
61		BS1724955SM
62		BS1724945SM
63		BS1724946SM	COLLAR-PINION 1A646
64		BS1724947SM
65		BS1724948SM	SCHEIBE-12 X 32 X 3.2
66		BS1724949SM	GETRIBEUNTERSETZ. 1A6
67		BS1724950SM	PINION-FINAL 1A64
68		BS1724304SM	ACHSWELLE RECHTS 1A6
69		BS1724303SM	SPANNWELLE 1A6
70		BS1718112SM	SICHERUNGSSCHEIBE 19216
71		BS1718113SM	RING 17 192168-3
72		BS1718111SM	DICHTUNG 19X32X8 192163
73		BS1718110SM	BUCHSE 19X21 1921
75		BS1724305SM	BREMSBELAG 1A6460
76		BS1724306SM	HALTEARM 1A6460-
77		BS1724307SM
78		BS1724308SM
79		BS1724309SM	BREMSBEL. AUFNAHME 1A
80		BS1724310SM	PIN 223510-50032
81		BS1708690SM
82		BS1724311SM	SPLINT 223510
83		BS1724312SM	BUNDKEIL 1A6
85		BS1736306SM
86		BS1724315SM	FEDERRING 1A6460
87		BS1724316SM	C - RING 19215
90		BS1720421SM
91		BS1724318SM	OEL DICHTUNG 1A6460-2
95		BS1707839SM	SPANNSTIFT 22351-03
97		BS1724956SM	WASHER-THRUST DIFF
98		BS1724958SM
99		BS1724957SM
100		BS1724953SM	PUMP-CHARGE 1A6460
200		BS1727542SM	K57 SMP SEAL KIT
