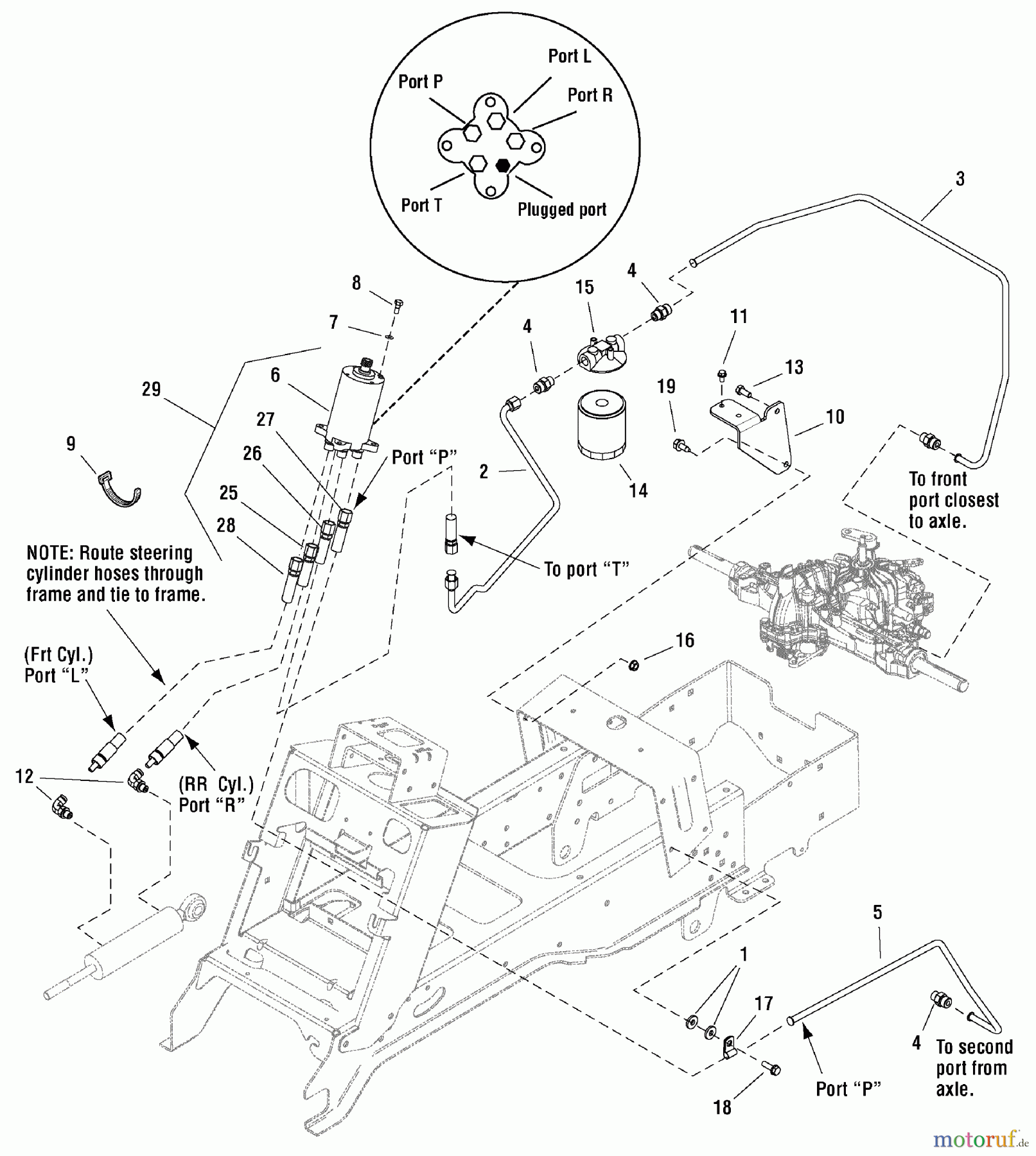

Snapper RD2140 (2690774) - 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series Steering Group - Power Steering Spareparts

Steering Group - Power Steering RD2140 (2690774) - Snapper 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series

Snapper Rasen- und Gartentraktoren RD2140 (2690774) - Snapper 40
PosArticle NumberDescription
1 BS1960141SMWASHER-0.312(0.34IDX0
2 BS1735083SMTUBE ASSY, VALVE
3 BS1735080SMTUBE ASSY
4 BS1722123SMANSCHLUSS
5 BS1735142SMTUBE ASSY, HYD
6 BS1733894SMPOWER STEERING UNIT W
7 BS1916964SMSICHERUNGSSCHEIBE, FEDER
8 BS2860444SMSECHSKANTSCHRAUBE M06-1
9 BS1701011SMTIE, SELF LOCKING .18
10 BS1735445ASMSUPPORT, FILTER
11 BS1931646SMMUTTER, SELBSTSICH.
12 BS1733230SMSCHLAUCHBOGEN
13 BS1921332SMCAPSCREW - HEX HD
14 BS1719168YPFILTER, OIL
15 BS1719169SMOLFILTERSOCKEL
16 BS1960636SMNUT-HEX KEPS 5/16-18
17 BS1708007SMCLAMP-WIRE DIA .375 (
18 BS1960373SMSCHRAUBE - HEX WASHER HD
19 BS703228SCHRAUBE, 5/16-18 X .75
25 BS1733893SMHOSE ASMY-HYDRAULIC R
26 BS1733791
27 BS1733780SMHYDRAUL.-SCHLAUCH R.
28 BS1733595SMHOSE ASMY-HYDRAULIC R
29 BS1733894
