Snapper SLT24520FC (7800318) - 52" Lawn Tractor, 24HP, LT100 Series 52" Deck Blade Drive Assembly Spareparts

52" Deck Blade Drive Assembly SLT24520FC (7800318) - Snapper 52" Lawn Tractor, 24HP, LT100 Series

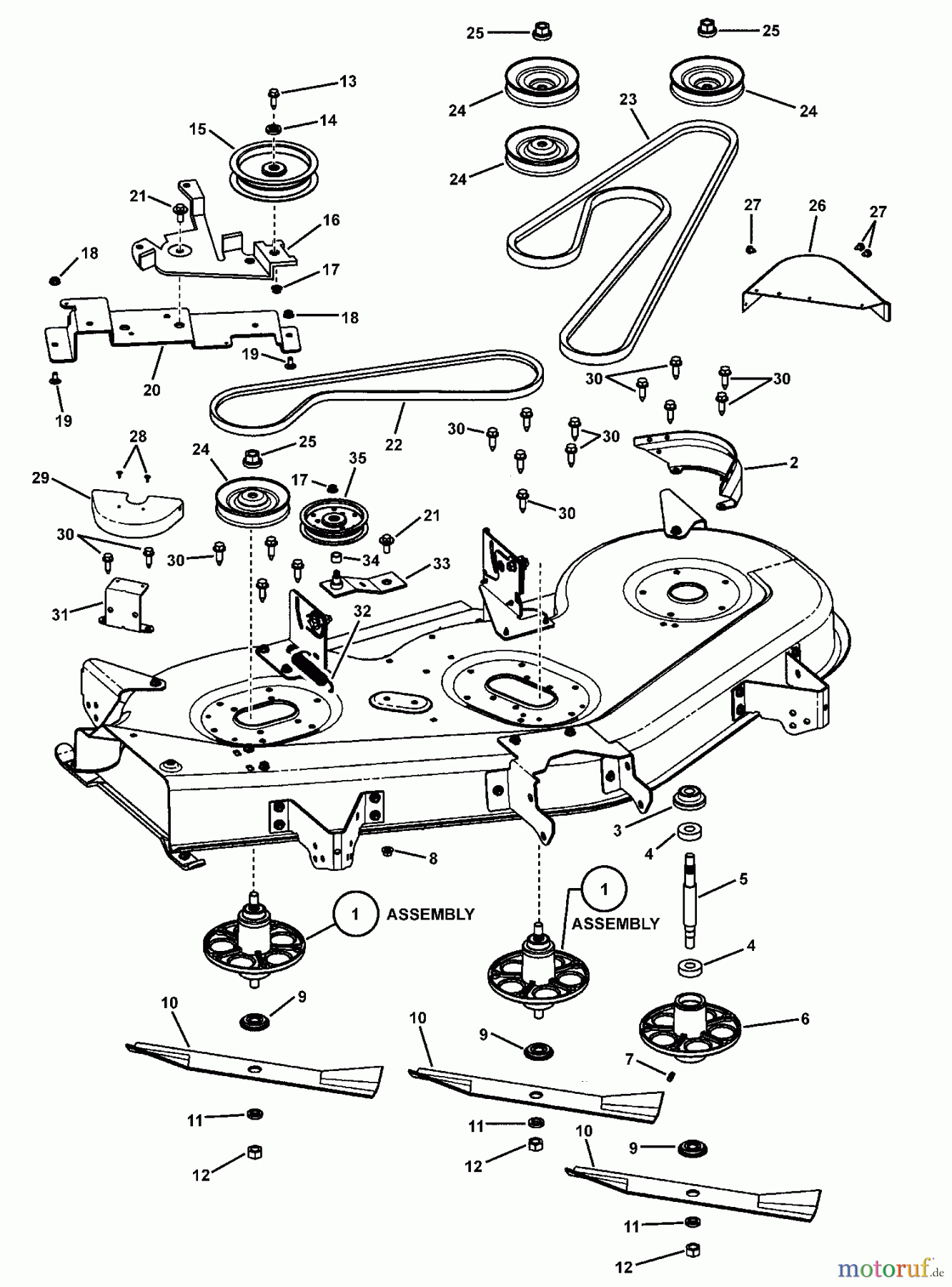

Snapper Rasen- und Gartentraktoren SLT24520FC (7800318) - Snapper 52
PosArticle NumberDescription
1 BS1001200MABLINDWELLE GEHAUSE ASSY
2 BS7300943DYPHALTER, ROLLENABDECKUNG
3 BS1001197MASPACER, PULLEY
4 BS1705897SMBEARING, BALL 11/16X1
5 BS726958
6 BS726959
7 BS092530MAFITTING-SCHMIERUNG RIDERS
8 BS703893NUT, CNTR LCK, 3/8-16
9 BS690411MAADAPTER - BLADE
10 BS721334AYPBLADE, 50" / 52
11 Snapper UNTERLEGSCHEIBE.62-1.0-.18 FLBS17X165MAUNTERLEGSCHEIBE.62-1.0-.18 FL
12 Snapper NUT.56-18 REG UNF Z-YBS15X100MANUT.56-18 REG UNF Z-Y
13 BS01X111MABOLT-HEX.37-16X1.50 Z
14 BS703878WASHER, FLAT
15 BS095068MAIDLER PULLEY 5
16 BS7300924DYPARM, IDLER
17 BS015X98MANUT.38-16 FLANGELOCK
18 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
19 BS002X53MASCHLOSSSCHRAUBE .31-18 X 0.
20 BS7300923DYPHALTER, BREMSE
21 BS009X42MAANSATZBOLZEN .38-16X.600D
22 BS7046926YPRIEMEN,NEBENANTR. 50.65
23 BS1734048SMV-BELT A WEDGE 103.1
24 BS95309MAYZ SCHEIBE,SPLIT STAHL
25 Snapper MUTTER.56-18 RIEMENSCHEIBE ZINBS15X140MAMUTTER.56-18 RIEMENSCHEIBE ZIN
26 BS7300773BMYPABDECKUNG, ROLLE LINKS
27 BS26X277MASCREW-5/16-18X.50
28 BS26X250MASCREW-TAPPING 10-16
29 BS7300857BMYPABDECKUNG, ROLLE, RECHTS
30 BS2828635SMSCHRAUBE
31 BS7300801BMYPHALTER,ABDECKUNG
32 BS165X130MAZUGFEDER
33 BS7400265DYPEINSATZ, ROLLENARM KOMPL.
34 BS690369MADISTANZSTUCK 1/2" TO 17 MM
35 BS690549MAPULLEY-BACKSIDE IDLER
