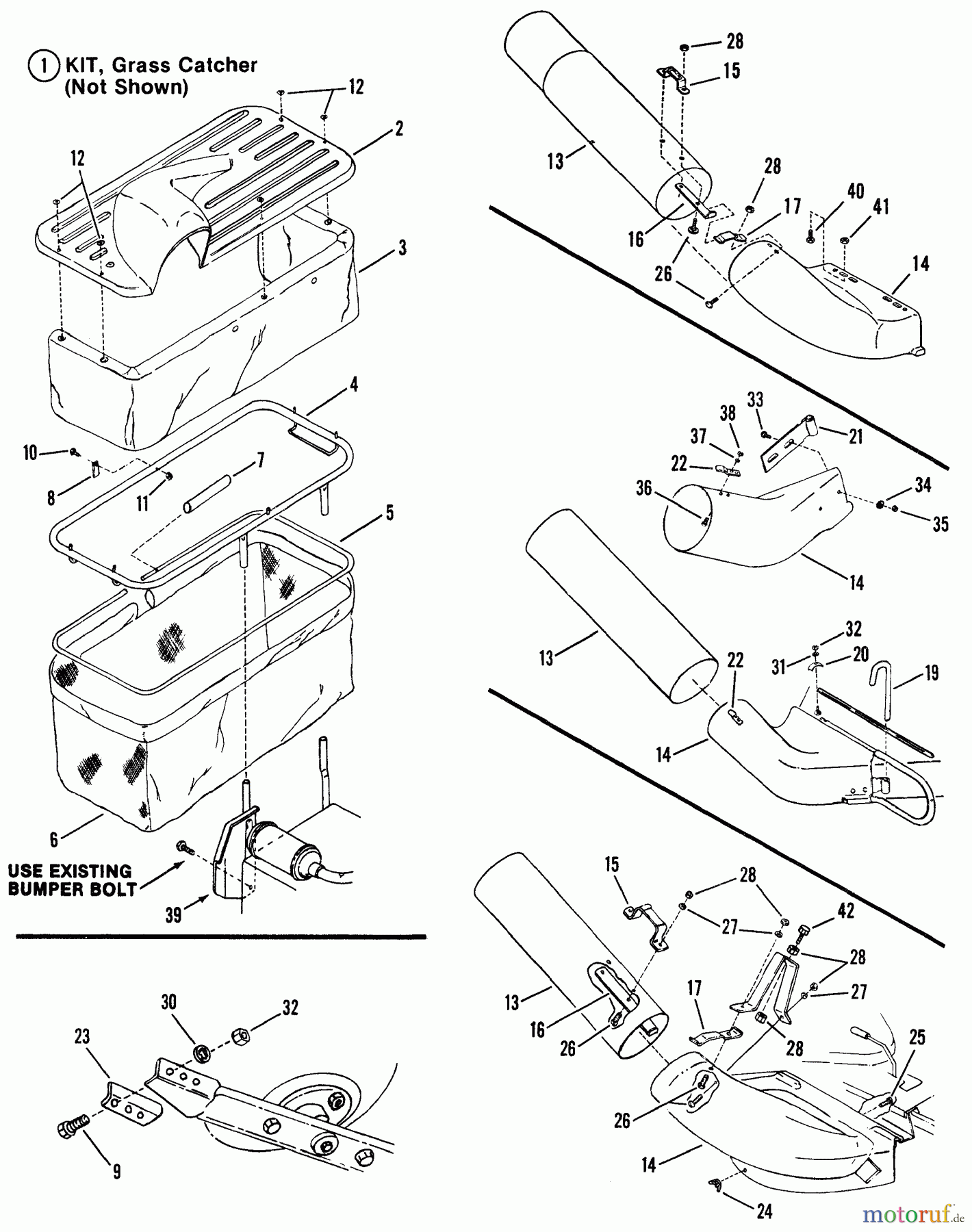

Snapper 28106S - 28" Rear-Engine Rider, 10 HP, Series 6 Grass Catcher Accessory Spareparts

Grass Catcher Accessory 28106S - Snapper 28" Rear-Engine Rider, 10 HP, Series 6

Snapper Reitermäher 28106S - Snapper 28
PosArticle NumberDescription
1 BS60331
1 BS60789
1 BS7060351
2 BS7051303YPGRASS CONTAINER TOP &
2 BS7501833YPGRASS CONTAINER TOP /
3 BS7016108YPSTAUBMANSCHETTE
4 BS7047973YPFRAME WELD.
5 BS7057248YPSTANGE HINTEN KOMPL.
6 BS7024819YPGRASFANGSACK
7 BS7012556YPANSCHLU?, 1/2X3
8 BS7031725YPLATCH, CLEAR
9 BS7090228SMSCHRAUBE, 5/16F
10 BS7090532YPHHMS, 10F X1-3/8 GR2
11 BS7090376YPMUTTER, 10-32 SELBSTS.
12 BS7029840YPWASHER, FACETED YZ
13 BS7014750YPSCHLAUCH GRAS, 26-30
13 BS7014517YPROHR GRAS 28-33
14 BS7019809YPCHUTE, GRASS, 25
14 BS7051390YPGRASS CHUTE ASSY.
14 BS7051663YPCHUTE ASMY
14 BS7019912YPCHUTE, 28-33
15 BS7037745YPHANDLE, TUBE, YELLOW
16 BS7031952YPBASE, TUBE HANDLE
17 BS7031951YPLATCH, TUBE / CHUTE
?18 BS7037725YPBRKT, STANDOFF, CLEAR
19 BS7031715YPPIN, GRASS CHUTE, CLE
20 BS7031123YPCLAMP, 60196, BLACK
21 BS7031714YPBRKT, ADJ, 26-30, CLE
22 BS7031713YPSTOP, 60196, CLEAR
23 BS7031724YPEXTENSION, AIR LIFT
23 BS7037723BMYPAIR LIFT ECOAT
24 BS7091537YPWLN, 5/16C YZ
25 BS7091303YPRHSSNB, 5/16CX1 GR5
25 BS703798BOLT, 5/16-18X0.50
26 BS1931317SMBOLT - RD HD
27 BS703462U.-SCHEIBE, 1/4
28 BS703127MUTTER
?29 BS7090545YPRHMS, 5/16F X1-1/2 GR
30 BS703587WASHER, 5/16
31 BS703350U-SCHEIBE, 5/16
32 BS703331MUTTER, 5/16-24
33 BS7091604YPRHSSNB, 1/4C X1/2 GR5
34 BS7091294
35 BS703954
36 BS7090024
37 BS7090011SMITLW, #10 ZP
38 BS7090013YPHN, #10F ZP
39 BS7071677YPMUFFLER GUARD,CATCHER
40 BS7090541YPHHCS, 1/4F X3/4 GR5 Z
41 BS7090095YPNUT, HEX, 1/4
42 BS7027230SM(C) HHCS, 1/4C X1 GR5
BS7060735YPAIR LIFT KIT, 30
BS7060480SMAIR LIFT KIT
