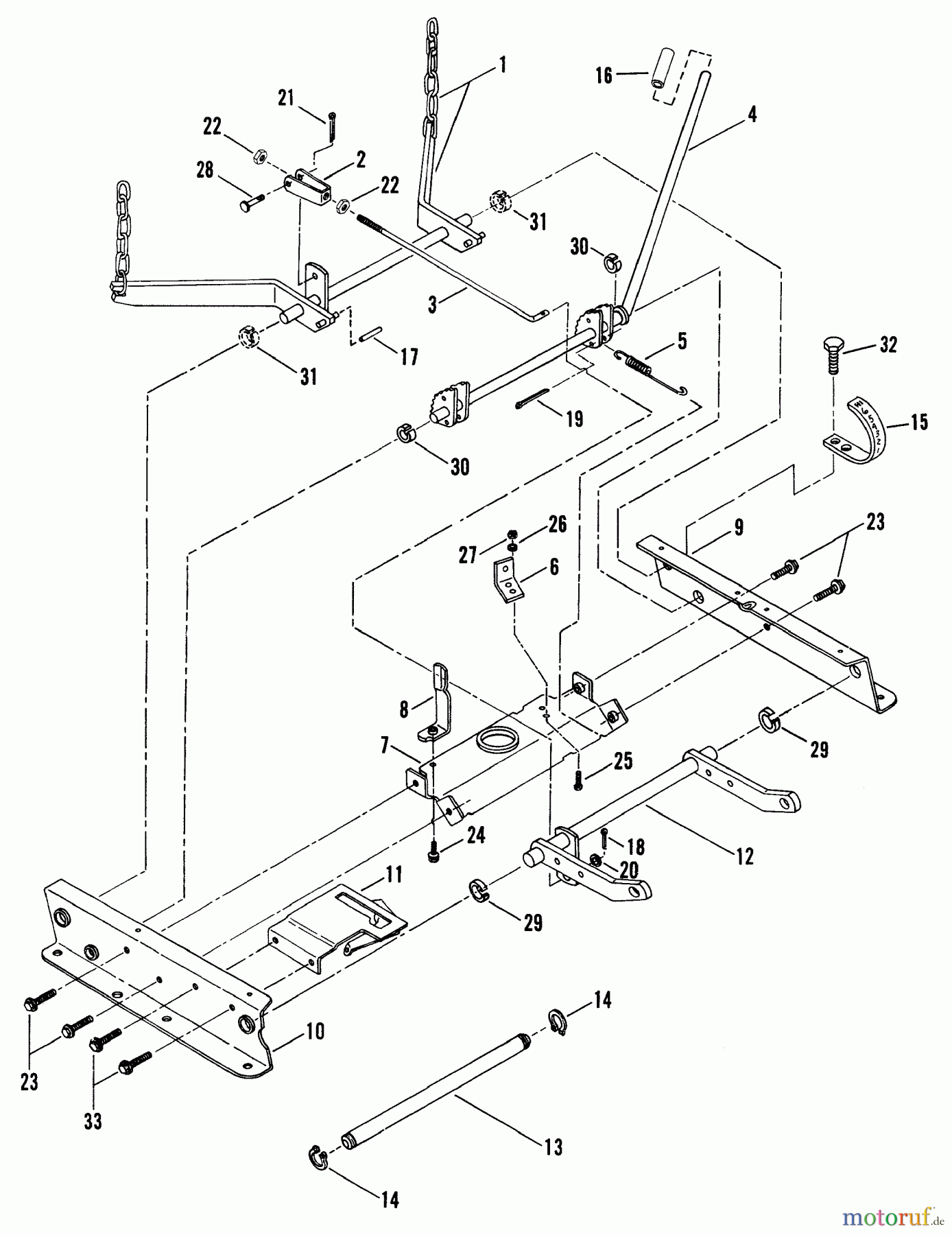

Snapper 28106S - 28" Rear-Engine Rider, 10 HP, Series 6 Rails, Lift Arms, Cam Lift Spareparts

Rails, Lift Arms, Cam Lift 28106S - Snapper 28" Rear-Engine Rider, 10 HP, Series 6

Snapper Reitermäher 28106S - Snapper 28
PosArticle NumberDescription
1 BS7057283YPREAR LIFT ARM ASSY, 2
2 BS7031837YPCONTROL, CLEVIS, CLEA
3 BS7012030YPROD, TIMING
4 BS7047730YPWELD, CAM
5 BS7011074
6 BS7032243YPSICHERUNGSBOLZEN
7 BS7031838BMYPBRACE, TOP ECOAT
8 BS7031855YPTREIBRIEMENSCHUTZ
9 BS7037709YPRAIL, SIDE, LH
10 BS7037710YPRAIL, SIDE, RH
11 BS7600140YPKIT, CLUTCH PLATE
12 BS7047710YPWELD, FRONT LIFT ARM,
13 BS7020882YPROD, SUPPORT
14 BS7010739SMRETAINING RING, EXT,
15 BS7031975YPPLATE, INDICATOR
16 BS7010684YPGRIP, DECK LEVER
17 BS7010737YPROLL PIN, 3/8X1-1/4
18 BS7091598SMCOTTER PIN, 1/8X3/4 Y
19 BS7091516SMSPLINT, 5/32X1 YZ
20 BS703878WASHER, FLAT
21 BS703312PIN, COTTER, 3/32X.75
22 BS703895NUT, HEX, 3/8-24
23 BS7090324SMHWST, 3/8C X1 BZ
24 BS703949SCHRAUBE, 5/16-18.625
25 BS7090233YPHHCS, 5/16F X3/4 GR5
26 BS703587WASHER, 5/16
27 BS703331MUTTER, 5/16-24
28 BS7029687YPCLEVIS PIN, 3/8X1-1/1
29 BS7012067YPRING, HEBEARM VORN
30 BS7023791YPRING, SPLIT
31 BS7012068YPRING, HEBEARM HINTEN
32 BS7090292YPHHCS, 3/8F X3/4 ZP
33 BS7090858YPMUTTER, 5/16-18X1/2 SELBSTS.
