Snapper 281123BV (84940) - 28" Rear-Engine Rider, 11 HP, Series 23 CUTTING DECKS & DEFLECTOR (28" & 33" Hi-Vac) Spareparts

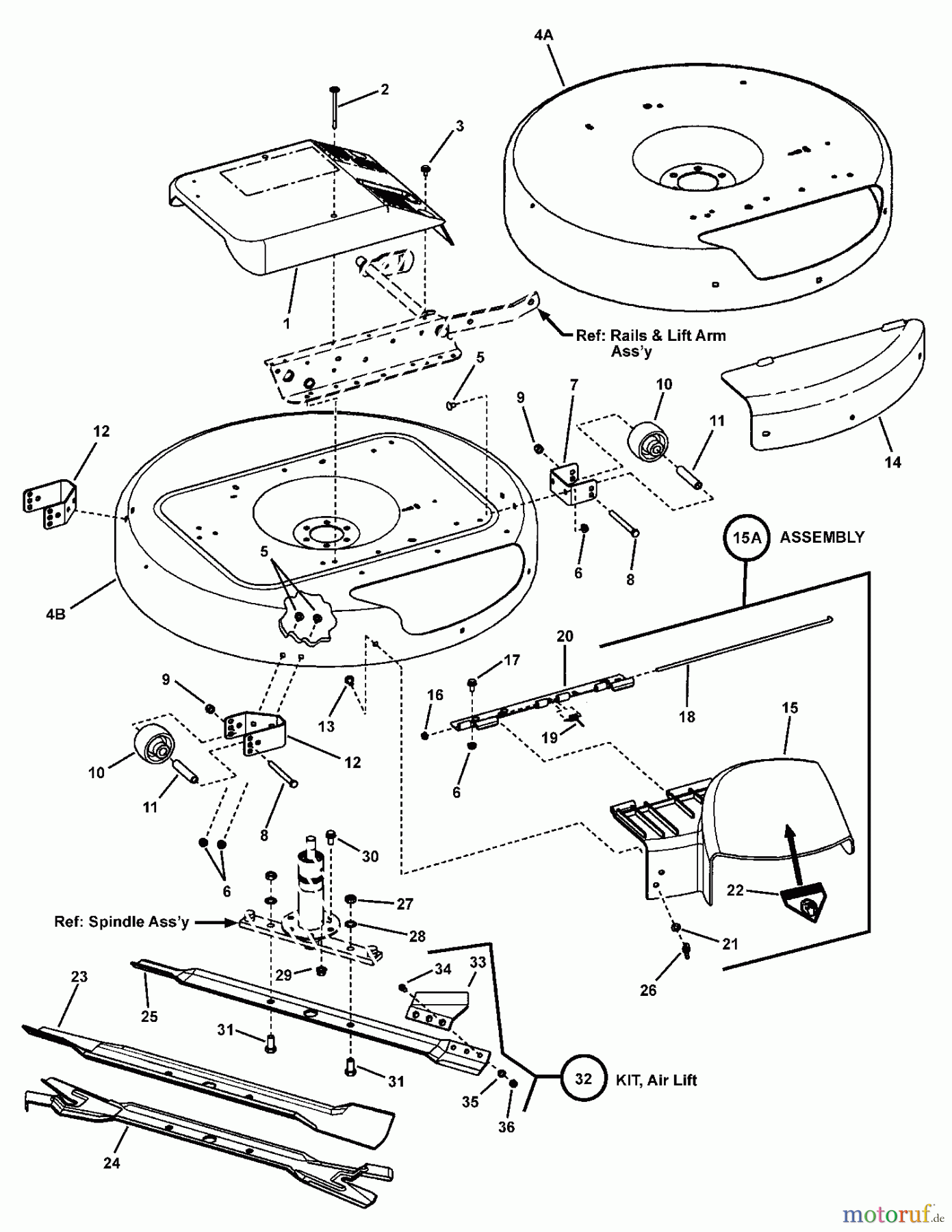

CUTTING DECKS & DEFLECTOR (28" & 33" Hi-Vac) 281123BV (84940) - Snapper 28" Rear-Engine Rider, 11 HP, Series 23

Snapper Reitermäher 281123BV (84940) - Snapper 28
PosArticle NumberDescription
1 BS7073434YPCOVER, SPINDLE, RER
2 BS7091015YPHWST, 1/4C X3-1/2 YZ
3 BS703456BOLZEN, 1/4-20X5/8, GR5
4A BS7061970YP28" REPLACE DECK KIT
4B BS7061972YP33" REPLACEDECK KIT
5 BS703798BOLT, 5/16-18X0.50
6 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
7 BS7033570BMYPHALTER VORN
8 BS703876CAPSCREW,3/8-2X3.75
9 BS703901MUTTER, 3/8-24
10 Snapper BEGRENZUNGSRADBS7019190YPBEGRENZUNGSRAD
11 BS7015272YPBUCHSE
12 BS7033571BMYPHALTER ANTI-SCALP, SEITLICH
13 BS703185RHSSNB
14 BS7016983YPCOVER, MULCHING, 28
14 BS7016984YPCOVER, SIDE CHUTE, 33
15 BS7026233YPCHUTE, DISCHARGE
15A BS7052555YPABLAUF SCHACHT KOMPL.
16 BS7026483YPPALMUTTER
17 BS7091811SMHFLB, 5/16C X5/8 GR5
18 BS7105174YPROD , CHUTE
19 BS7016341YPSPRING, HINGE
20 BS7300886BMYPSCHARNIER
21 BS7090188SMFW, .34X.69X.08 YZ
22 BS7013010SMDECAL-DANGER, CUT FIN
23 BS7104196BZYPBLADE 28 HIGH LIFT, N
23 BS7034168BZYPBLADE, 33 HIGH LIFT
24 Snapper BLADE, 28" NINJA, NOBS7104083BZYPBLADE, 28" NINJA, NO
24 BS7024741AYPBLADE, 33" NINJA
25 Snapper BLADE, 28", AIR LIFTBS7019515BZYPBLADE, 28", AIR LIFT
25 BS7019523BZYPBLADE, 33
26 BS7091537YPWLN, 5/16C YZ
27 BS7091939YPMUTTER, 1/2F GR5 ZP
28 BS7090509YPZAHNSCHEIBE
29 BS703333MUTTER, 3/8-16
30 BS7091588SMBUNDSCHRAUBE, 3/8C X3/4 GR5 Y
31 BS7090491YPSECHSKANTSCHRAUBE 1/2 X1-1/4GR
32 BS7060480SMAIR LIFT KIT
33 BS7037723BMYPAIR LIFT ECOAT
34 BS7090228SMSCHRAUBE, 5/16F
35 BS703587WASHER, 5/16
36 BS703331MUTTER, 5/16-24
